Humanscale QuickStand Under Desk Installation Instructions Manual page 9

Step 7
Raise the keyboard tray to the highest position.
Run the monitor cables down the monitor arm/ mflex and through the rear
ST EP 8 B ( F O R M2, M 8 O R M / FL E X)
opening. Secure cables in the clips .
Run down the channel of the column and through the grommet.
* keeping the cables organized and lined up in the channel will help the installation of the
Install Keyboard Cables
cable cover.
• For wired keyboard and mouse, break away the tab in
the front of the cover and run the cable through the
channel and secure with cable cover. Follow the rest
of the cables down the column.
ST EP 9 ( F O R M2, M 8 OR M / FL E X)
Cable Routing
• With the keyboard tray at its highest position, route
all cables through the cable holder as shown here and
exit the cables to the side closer to the power and CPU.
There should be no cable slack. Lock the cables in
position with the cable cover.
* When using USB cables, bundle all cables in
the 4 areas shown in the image.

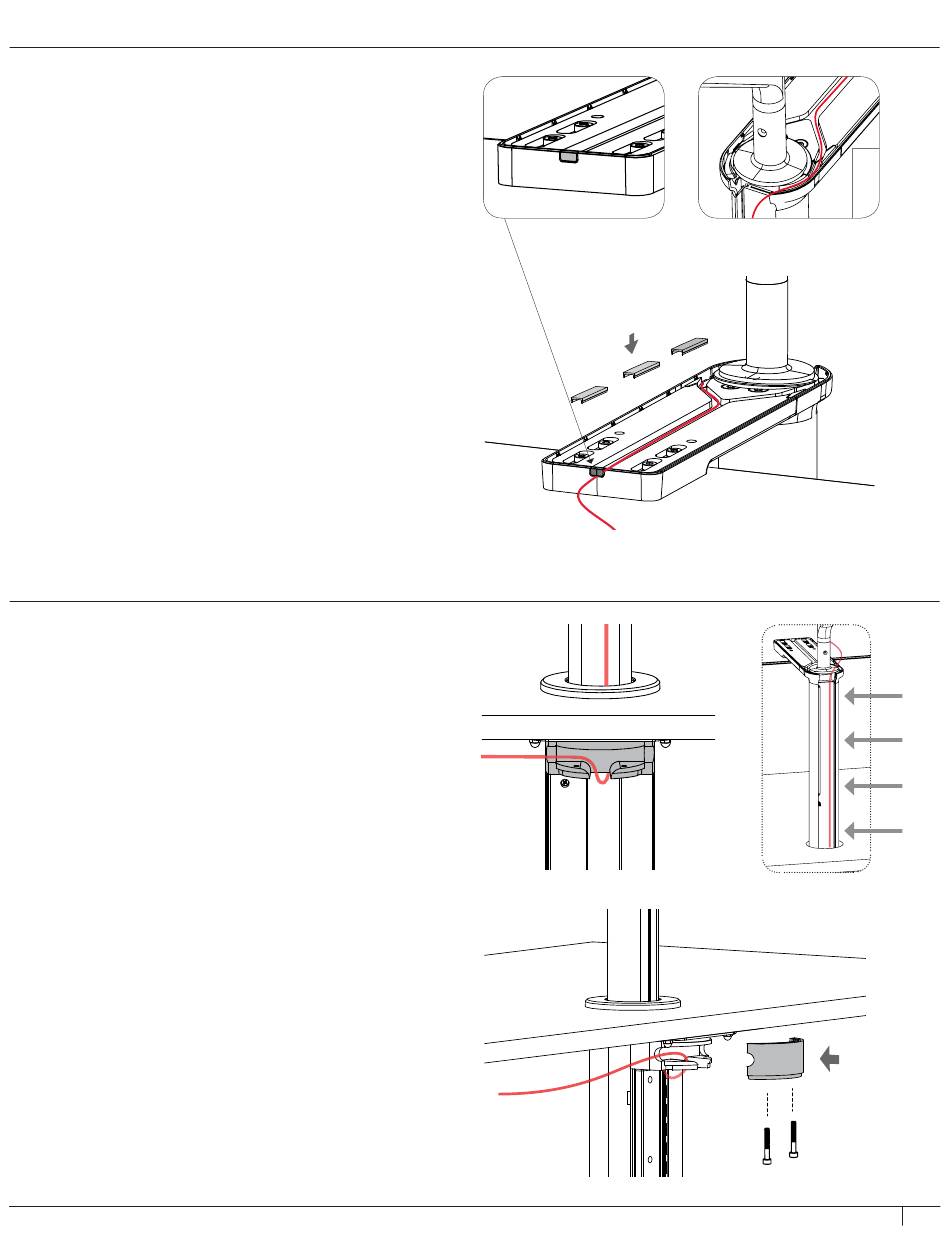

Step 7a
For wired keyboard and mouse, break away the tab in the front of the cover
and run the cable through the channel and secure with cable cover. Follow
the rest of the cables down the colomn.
Step 8
Step 10
Keyboard tray at its highest position, route all cables through the cable
Keyboard tray at its highest position, route all cables through the cable
holder as shown here and exit the cables to the side closer to the power and
holder as shown here and exit the cables to the side closer to the power and
CPU. There should be no cable slack. Lock the cables in position with the
CPU. There should be no cable slack. Lock the cables in position with the
cable cover.
cable cover and secure it with 2 screws.
*When using USB cables, bundle all cables in 4 areas shown in the image.
*Bundle all cables in 4 areas shown in the image with zip-tie.
Ste
Attac
