Cable Routing - Humanscale QuickStand Under Desk Installation Instructions Manual

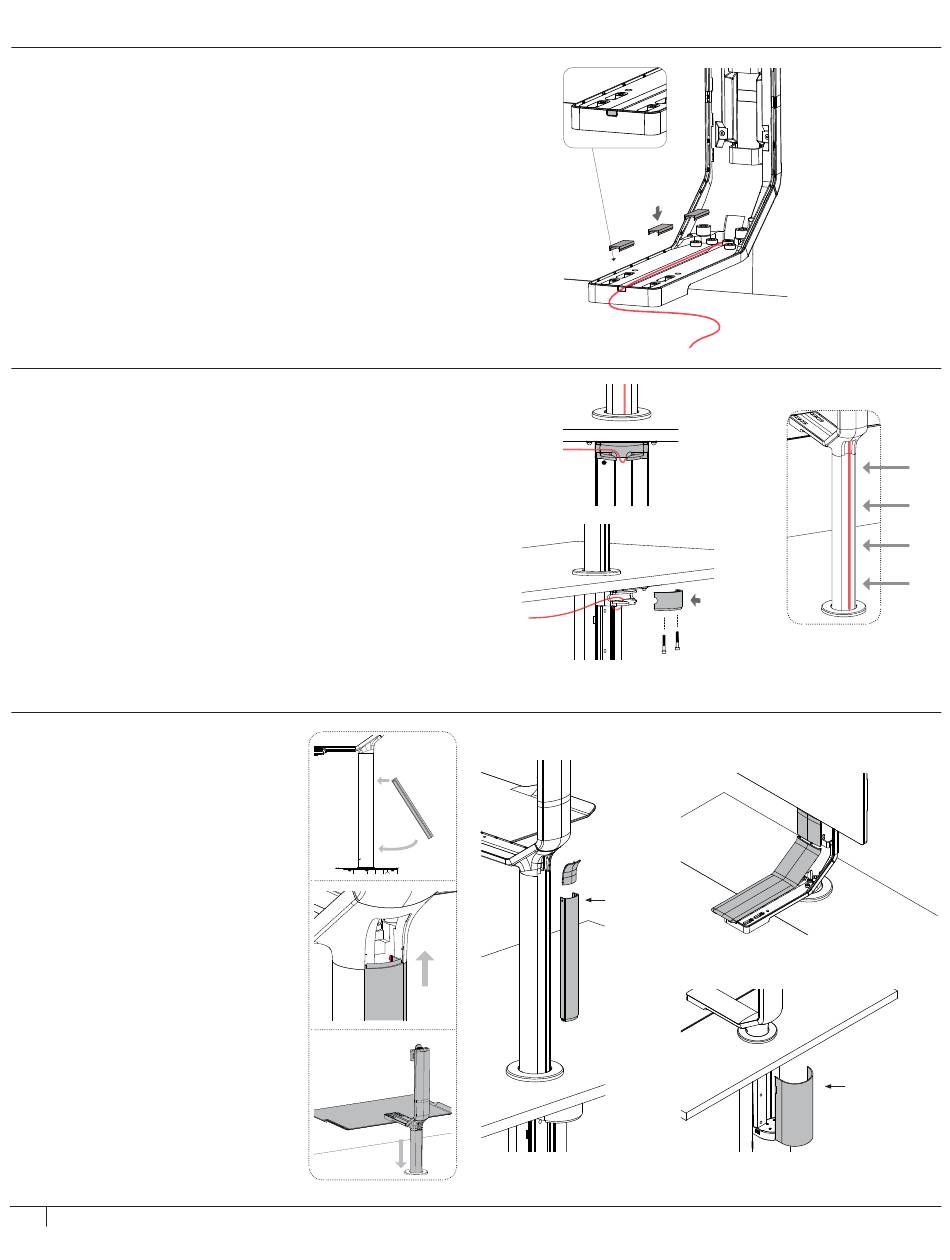

ST EP 9 B ( F O R SINGL E / DUA L MONI TOR )
Keyboard and Mouse Cables
• For wired keyboard and mouse, break away the tab
in the front of the cover and run the cable through
the channel and secure with cable cover. Follow the
rest of the cables down the column.
ST EP 10 ( F O R SINGL E / DUA L MONITOR )

Cable Routing

• With the keyboard tray at its highest position, route all cables
through the cable holder as shown here and exit the
cables to the side closer to the power and CPU.
• There should be no cable slack. Lock the cables
in position with the cable cover and secure it with 2 screws.
*Bundle all cables in 4 areas shown in the image with zip-tie.
ST EP 11 ( F OR SINGL E / DUA L MONITOR )
Snap All Cable Covers in Place
6
Step 9
Leave enough cable slack for the monitors to adjust up&down and secure
with cable clips. Push the clip to one side to remove.
Run down the channel of the column and through the grommet.
* Reccomended to adjust cable slack putting the monitor at its heighest adjustment position.
* keeping the cables organized and lined up in the channel will help the installation of the
cable cover.
Step 11
Snap cable covers in place.
1.
2.
Click
Click
Step 9a
For wired keyboard and mouse, break away the tab in the front of the cover
and run the cable through the channel and secure with cable cover. Follow
the rest of the cables down the colomn.
Step 10
Keyboard tray at its highest position, route all cables through the cable
holder as shown here and exit the cables to the side closer to the power and
CPU. There should be no cable slack. Lock the cables in position with the
cable cover and secure it with 2 screws.
*Bundle all cables in 4 areas shown in the image with zip-tie.
1.
The end with
2 screws is top.
2.
Orient the part
so the tab is
on the upper
side.
