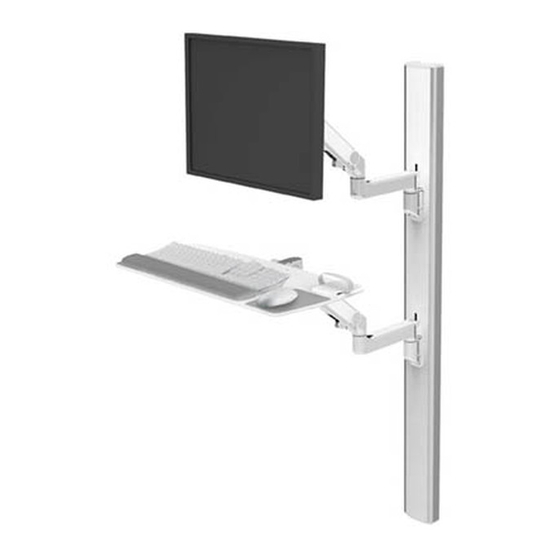

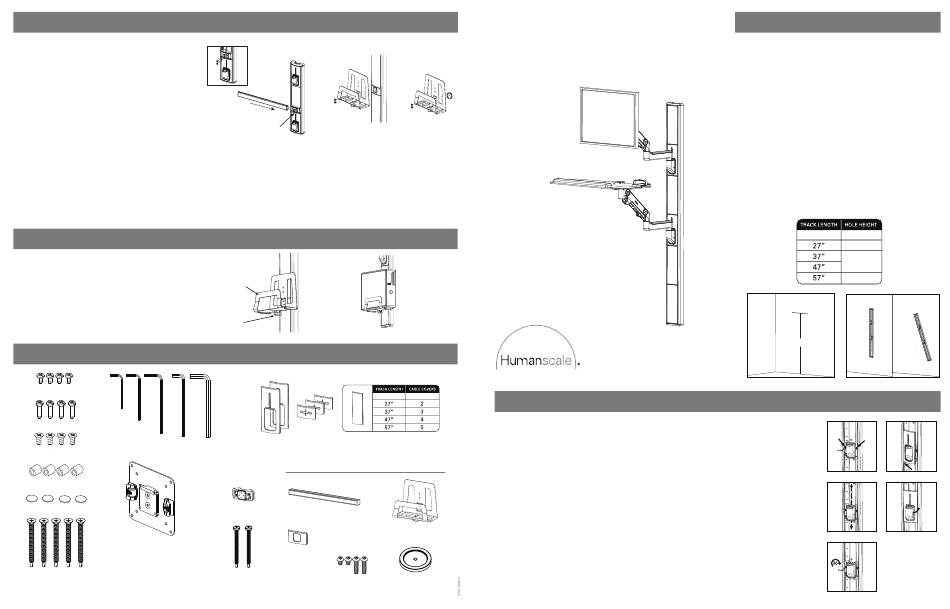

Humanscale V6 Installation Instructions

STEP 11: ATTACH CPU HOLDER OR ACCESSORY RAIL (Optional)
Attach Accessory Rail
a.Screw the V6 rail mount to the V6 Accessory Mount using
the flat head screws and supplied 4mm Allen wrench.
b. Insert the rail through the V6 Mount, measuring both ends
of the rail to ensure it is centered, or positioned as required.
c. Tighten the 2 set screws under the V6 rail mount using the
2mm Allen wrench and snap the front cover back on the mount.
Attach CPU Holder to Accessory Mount
d. Align the CPU Holder with the vertical holes in the center of the
Accessory Mount. Attach with the two M6 Screws provided with the
CPU Holder. Tighten with Hex Key D to secure.
Attach CPU Holder to Wall
a. To mount CPU Holder directly to wall, use the provided CPU Wall Mount Spacer and the provided Pan Head Self-Tapping Screws. Please refer to Step 1a on this directions
sheet and read the hardware recommendations, but note that in this instance (for the CPU Holder), you should use the Pan Head Self-Tapping hardware, as opposed to the
Flat Head hardware listed in the Step 1a directions.
b. Drill hole in wall for top through-hole of CPU holder at desired height/location, and install appropriate fastener per the recommendations in Step 1a.
c. Place CPU Wall Mount Spacer between CPU Holder and wall and align their holes. Using the appropriate hardware, fix CPU Holder to wall. Insert Pan Head Self-Tapping
Screw through the top through-hole of CPU Holder and through the CPU Wall Mount Spacer, and into the wall stud or mounting board.
d. Use a level to ensure CPU Holder is level. Mark lower through-hole location on wall (this hole is either of the two recessed through-holes on the CPU Holder).
e. Pre-drill a lower mounting hole in the spot in the wall that you have just marked in Step d, and install appropriate fastener.
f. Fasten CPU Holder with appropriate hardware in lower hole. Be sure to properly tighten screws.
STEP 12: PLACE CPU INTO CPU HOLDER
Loosen other Locking Knob
(a) and place CPU into CPU Holder. Slide Front Bracket
(b) inward so it sits tightly against CPU. TightenLocking Knob to secure.
V6 INSTALLATION HARDWARE
(4) Standard VESA Bracket Screws
Hex Key A
(2 mm)
(4) Extended VESA Bracket Screws
Hex Key B
(2.5 mm)
Hex Key C Hex Key D Hex Key E
(3 mm) (4 mm)
(4) Keyboard Tray Screws
(4) Plastic Spacers
(4) 3M Dual Lock Coins
VESA Bracket
ADDITIONAL HARDWARE REQUIRED
(5) Track Mounting Screws
(for mounting on metal stud) Electric drill
a
d
b
c
b
a
Track Covers
*12" tracks only come with one of each track cover
(5 mm)
OPTIONAL COMPONENTS
Accessory Mount
Accessory Rail
Accessory Mount Cover
(2) CPU Wallmounting Screws
(4) M6 Screws
(for mounting on metal stud)
V6

Installation Instructions

Wallmount CPU
12" 1
STEP 2: ADJUST ARM MOUNT LOCATION
Note: Assuming the Track was mounted to the wall at the recommended height, the Arm Mounts will already be in the
correct ergonomic position for the majority of people for standing use unless a Solo Arm will be used, in which case the
Mount must be adjusted so that the keyboard platform is no higher than 48" when arm is at its highest adjustment range.
Change Position of Arm Mount Location
a. Loosen the Friction Feet with Hex Key C.
b. Slide each Mount up or down the Track to the desired location.
c. Tighten the Feet. You must tighten down the Friction Feet in order to complete installation of the Arm Mount to the
Track. The Arm Mount will not be able to support any weight if it is not tightened down first. Feet must be tightened
down to a torque of 30 in-lbs. [3.4 Nm] to ensure safe operation.
Note: It is recommended to position the Mounts in a detent to allow for the best possible Cover fit in step 10.
Attach the Arm Mount Covers to the Arm Mounts
CPU Holder
d. Align one side of the Cover inside of the Track channel.
e. Push in the Crush Rib on that side. By pushing at the top corner at the opposite side, feed the side into the channel,
running fingers down the side and pushing in the Crush Rib at the bottom. Push on the middle of the Cover to
engage the snap feature.
Note: User must install the Arm Mount Covers before the Arms otherwise they cannot be put onto the Track.
CPU Wallmount Spacer
STEP 1: MOUNT TRACK TO WALL
a. For new construction, Track can be mounted to a wall stud or mounting board.
For existing construction, test the wall by drilling a pilot hole to determine what
fasteners are most suitable for installation. Be sure to drill the pilot hole in a spot
that will be covered by the Track.
RECOMMENDATIONS:
For wood – Use 2" #12 (M5.5, 50mm) flat-head wood screws.
For metal – Use 2½" #12 (M5.5, 65mm) flat-head self-tapping screws.
(Provided)
For drywall – Use 3/16" (M5) flat-head toggle bolts.
b. Choose the desired hole location for top fastener. Drill hole and install
appropriate fastener.
c. Hold Track against the wall and fasten using the appropriate fastener through
the top pre-drilled hole on track.
d. Use level to ensure Track is perfectly plumb. Mark the other mounting hole
locations.
e. Pre-drill the remaining mounting holes and install appropriate fastener.
f. Fasten Track with appropriate fasteners in the remaining mounting holes. Be
sure to fully tighten so fastener heads do not protrude beyond Track surface.
www.humanscalehealthcare.com
12" 33"
56"
66"
76"
66"
b d e
a d
b e
in/lbs.
c
