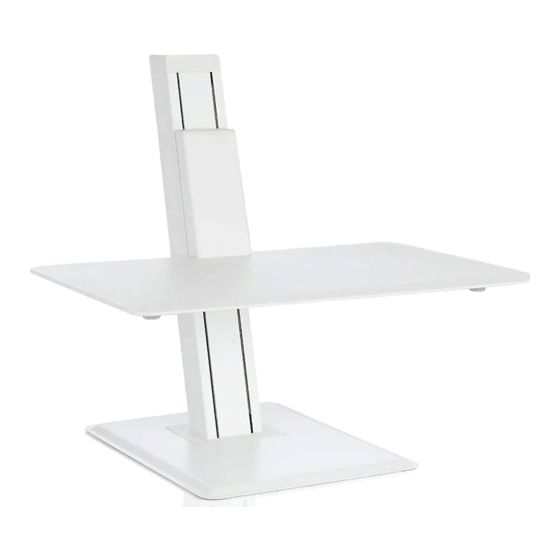

Humanscale Quickstand Installation Instructions Manual
Hide thumbs
Also See for Quickstand:
- Installation instructions (4 pages) ,
- Installation instructions (2 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Humanscale Quickstand
Summary of Contents for Humanscale Quickstand

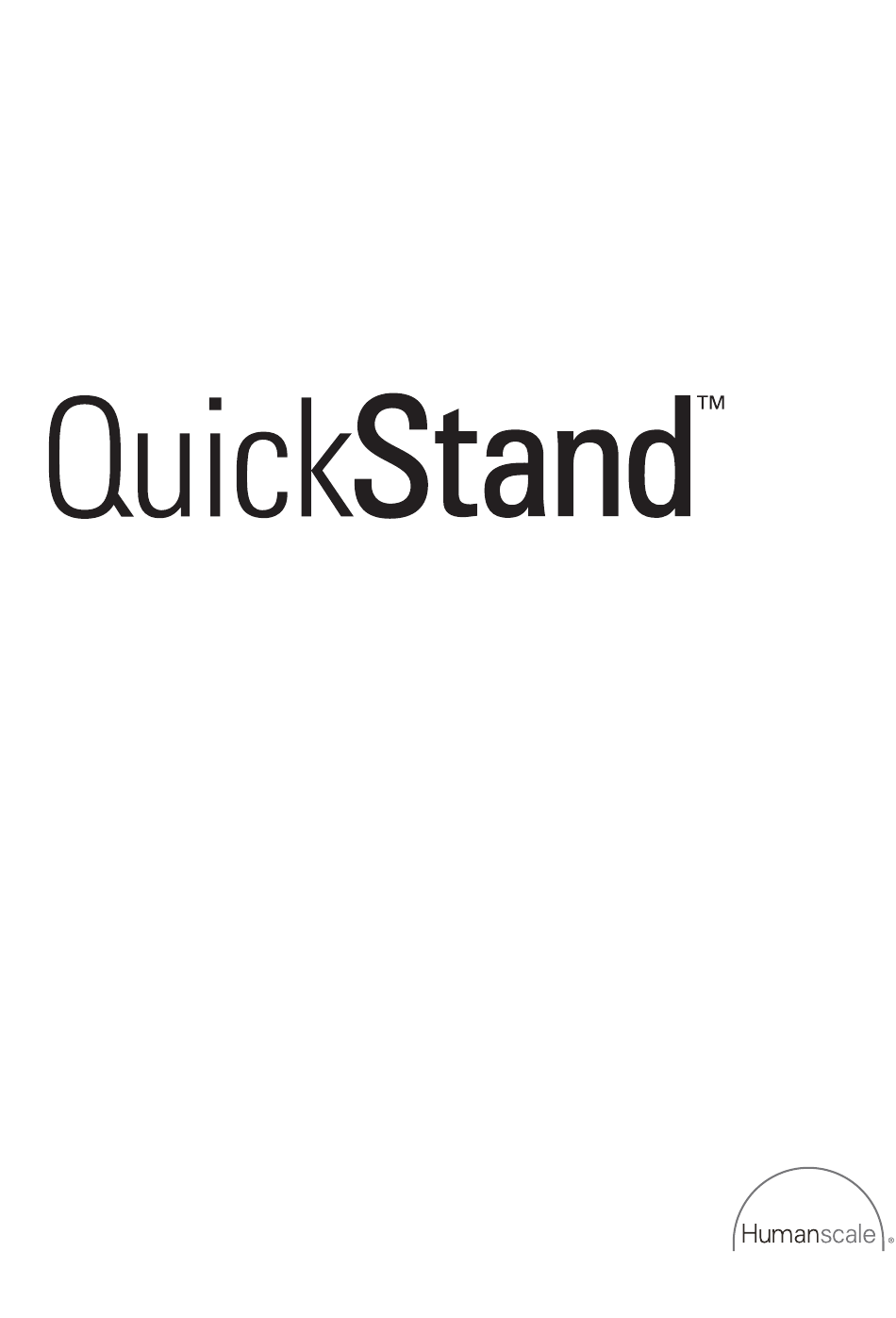

- Page 1 INSTA LL ATIO N IN ST RUC T ION S...
-
Page 2: Tools Required
(4) M4 x 18 mm Pan Head Phillips (4) M4 x 8 mm Pan Head Phillips (4) VESA Spacer Additional Parts for Dual Monitor QuickStand (1) Dual Monitor Crossbar (1) M6 x 22 mm Flat Head Machine Screws (2) M5 x 18 mm Flat Head Machine Screws... - Page 3 Failure to comply with the instructions provided may result in property damage or serious injury. Do not remove bracing box attached to QuickStand unit until your QuickStand is fully assembled...
- Page 4 Measure Work Surface Depth IMPORTANT: Please check the depth of your work surface If you are installing a QuickStand with a Large Platform, your QuickStand is pre-set to attach to a 29” (750 mm) deep work surface If you are installing a QuickStand with a Small Platform, your QuickStand is pre-set to attach to a 23”...
- Page 5 ST EP 7 Mounting Single Monitor If you are installing a dual QuickStand unit please proceed to Step 8 Tools: #2 Phillips Screwdriver • Make sure the top of the VESA Plate is...
- Page 6 ST EP 8 Attaching Crossbar for Dual Monitors Tools: 3 mm Hex Key 4 mm Hex Key • Attach Dual Monitor Crossbar to QuickStand unit using the hardware kit supplied (fig. I) ST EP 9 Attaching Dual Monitors Tools: #2 Phillips Screwdriver •...
-
Page 7: Attaching Usb Devices
ST EP 10 Secure Palm Support • Peel off sticker backing from Palm Support and place down in your desired position on the front edge of the Platform (fig. L) ST EP 11 Attaching USB Devices Tools: Flat-Head Screwdriver • Using a Flat-Head Screwdriver if needed, remove cable cover by tilting out from the bottom (fig. - Page 8 Remove tape and lift out box. (fig. Q) ADJUSTING QUICKSTAND In order to be able to raise and lower your QuickStand with ease, it is important to spend some time adjusting the tension adjuster which can be located in the top of the QuickStand unit...
- Page 9 ST EP 14 Adjusting Monitor Height SINGLE QUICKSTAND • Hold each side of your monitor and manually raise or lower until it is in the correct position (fig. T) DUAL QUICKSTAND Tools: 6 mm Hex Key • Remove top cover of the carriage assembly (fig. V) •...
- Page 10 ST EP 15 Adjusting Monitor Tilt +15º SINGLE AND DUAL QUICKSTAND • Hold the top and bottom of your monitor and manually adjust the monitor tilt until the desired angle is achieved (fig. X) -5º ST EP 16 Adjusting Monitor Orientation SINGLE AND DUAL QUICKSTAND •...
- Page 12 Customer Service: N America +1 800 400 0625 / International +353 (0)1 858 0910 www.humanscale.com...
