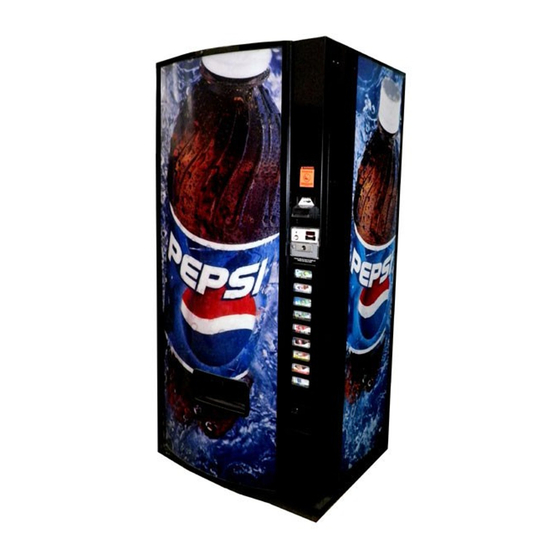

Dixie Narco 90 Series Operation Manual
  1. Manuals
  2. Brands
  3. Dixie Narco Manuals
  4. Vending machines
  5. 90 Series
  6. Operation manual

Dixie Narco 90 Series Operation Manual

Single price / siid e-model venders
Hide thumbs Also See for 90 Series:
Table of Contents

Advertisement

Quick Links

SERVICE MANUAL
SERIES 90
SINGLE PRICE / SIID
E-MODEL VENDERS
Beginning Serial #0001-6368DU
October 1996
Operation Manual
Set-Up
Troubleshooting
January 20, 1998
Dixie-Narco Blvd.
P.O. Drawer 719
Williston, South Carolina 29853
Ph: (803) 266-5000
Fax: (803) 266-5150
803,902,760.11

Advertisement

Table of Contents
loading

Related Manuals for Dixie Narco 90 Series

Summary of Contents for Dixie Narco 90 Series

  • Page 1 SERVICE MANUAL SERIES 90 SINGLE PRICE / SIID E-MODEL VENDERS Beginning Serial #0001-6368DU October 1996 Operation Manual Set-Up Troubleshooting January 20, 1998 Dixie-Narco Blvd. P.O. Drawer 719 Williston, South Carolina 29853 Ph: (803) 266-5000 Fax: (803) 266-5150 803,902,760.11...
  • Page 2 Physical Characteristics DNCB 276E Height: 1828.8mm (72") Width: 711.2mm (28") Depth: 889mm (35") Shipping 311.6kg (687 lbs) DNCB 501E Height: 1828.8mm (72") Width: 939.8mm (37") Depth: 889mm (35") Shipping 377.8kg (833 lbs) DNCB 600E Height: 2006.6mm (79") Width: 939.8mm (37") Depth: 889mm (35") Shipping...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS General Information....................................3 Installation & Set-Up ..................................4 - 11 Electrical Parts and Their Function..............................12 - 20 Product Shimming ................................... 21 - 23 Adjustments: Cams/Rear Spacers ..............................24 - 27 Vend Cycle / Sequence of Operation.............................. 28 - 32 Single Price ..................................

  • Page 5: General Information

    PRODUCT IDENTIFICATION The age of Dixie-Narco products is determined by the date code incorporated in the serial number. The vender serial number takes the form xxxx-yyyyzz. The first 4 digits (xxxx) identify the specific vender.

  • Page 6: Installation & Set-Up

    Upon receipt, inspect the vender for shipping damage. If there is any damage, have the driver note the damage on the Bill of Lading and notify Dixie-Narco. Although the terms of the vender sale require that the consignee originate shipping damage claims, Dixie-Narco will gladly help if you must file a claim.
  • Page 7 GROUND THE VENDER The vender is equipped with a three wire power supply cord and MUST be plugged into a properly grounded outlet. DO NOT REMOVE THE GROUND PIN OR IN ANY WAY BYPASS THE GROUNDING OF THE VENDER. If the outlet will not accept the power cord plug, contact an electrician to install a proper AC outlet.
  • Page 8 SIID venders are capable of interfacing to Debit Card and Data Recording systems. Presently Dixie- Narco has tested only a few such accessories. If such accessories are to be used, check with either Dixie-Narco or the accessory manufacturer about physical and electrical compatibility before attempting to interface such accessories to the SIID vender.
  • Page 9 The vender must be positioned close enough to an electrical outlet that an extension cord is not required. If securing the vender to the floor or wall is required, call the Dixie-Narco Factory Service Department or your Dixie-Narco Representative for suggestions.
  • Page 10 CLEANING THE VENDER DO NOT USE A WATER JET OR NOZZLE TO CLEAN THE VENDER. SIGN FACE The polycarbonate sign face requires proper cleaning to prolong the service life of this item. It is recommended that you periodically clean the sign face as follows: 1.
  • Page 11 LUBRICATING THE VENDER The vender refrigeration system does not require any field lubrication. The hermetic refrigeration system and fan motors are manufactured with lifetime lubrication. TIME COMPONENT LUBRICANT EXAMPLE Every 6 Months Main Door (or as needed) 1. Lock Bolt & Nut Retainer 2.
  • Page 12 TEMPERATURE CONTROL ADJUSTMENTS Adjustment #1 - Temperature Adjustment Turn the adjustment pointer clockwise for colder product and counter-clockwise for warmer product. Adjustment #2 - Altitude Adjustment WARNING: DISCONNECT POWER TO THE VENDING MACHINE BEFORE PROCEEDING WITH THIS ADJUSTMENT. The control is factory set for an altitude of 152 M (500 ft.). For higher altitudes, adjust the inside range screws to prevent freeze-up of the product.
  • Page 13 CHECK IT OUT WHAT TO DO WHAT SHOULD HAPPEN Plug the power cord in. The compressor, condenser fan, and evaporator fan run, "Use Correct Change" window lights and "Sold Out" lamps light. The fluorescent tubes light. Load at least six beverages in each column. Sold out lights go off in single price venders and sold-out message goes off in SIID venders.
  • Page 14 ELECTRICAL PARTS AND FUNCTIONS CORRECT CHANGE LAMP Correct Change Lamp 804,700,54x.x1 Correct Change Lamp Single Price (125 VAC) 904,700,18x.x1 Single Price (English) The Correct Change Lamp is mounted in the Coin Insert Casting. The Correct Change Lamp is controlled by the Coin Changer and is "OFF" when coins are in the tubes of the Coin Changer.
  • Page 15 SOLD OUT SWITCHES (2 IN A CLUSTER) The Sold Out Switch is located on the Front Mechanism Plate under the Vend Motor Cover. The Sold Out Switches are the "snap in" type. To install, place the switch in position over the opening, push in and at the same time, slide to the right.
  • Page 16 SOLD OUT LAMPS - (SINGLE PRICE VENDERS ONLY) Sold Out Lamp 804,700,51x.x1 - Pepsi, Generic 804,700,54x.x1 - Coke 804,700,63x.x1 - Dr. Pepper V4 The Sold Out Lamp (one for each vending circuit) is secured to the back of the select button in the Selector Panel. The Sold Out Lamp is turned on by the closing of the normally open contact of the Vend Sold Out Switch.
  • Page 17 VEND MOTOR For Narrow Column For Wide Column The Vend Motor (one for each vending stack) is mounted on a bracket on the front of the Front Mechanism Plate. SINGLE PRICE VENDER The Vend Motor is in the Vend Motor Coil Circuit. The Vend Motor runs when a select button is pushed. The normally open contact of the select switch closes and completes the Vend Motor Coil Circuit.
  • Page 18 VEND MOTOR SWITCH 804,100,69x.x1 - Single Price 804,100,73x.x1 - SIID SINGLE PRICE VENDER Vend Motor Switch The Vend Motor and the By-Pass Switches are secured together and referred to as a Cluster Switch. The Cluster Switch, one (1) for each circuit, is located on the Vend Motor Assembly and secured by two (2) screws.
  • Page 19 HOW THE VEND/BY-PASS SWITCHES WORK SINGLE PRICE VENDERS For Narrow Column For Wide Column Figure 1 Figure 2 The Vend Motor and Vend Motor Switches are shown in the stand-by position. (See figure 1 and figure The arm of the Vend Motor Switch A is in the cam notch (low cam). The arm of the By-Pass Switch B is on top of the cam (high cam).
  • Page 20 VEND RELAY (SINGLE PRICE ONLY) 804,200,17x.x1 VEND RELAY SWITCH NO. 1 Normally Closed (the Normally Open contact is not used) The normally closed contact of the Vend Relay Switch No. 1 is the Coin Changer Inhibit Circuit. When this normally closed contact opens, the Coin Changer is inhibited. VEND RELAY SWITCH NO.
  • Page 21 VEND MOTOR WIDE COLUMN Mounted on the Vender with the Vend Switch on the left side (See Fig. 3). The Linkage and Drive Arm assembly is used to connect the Vend Motor to the Oscillator. (See Fig. 4) Vend Motor Switch Vend Motor - Wide Column 804,100,69x.x1 - Single Price 609,070,60x.x3 - Single Price...
  • Page 22 Sold Out Spring 901,700,74x.x1 Sold-Out Switch Assy. Snap In 804,100,68x.x1 - Single Price 804,100,75x.x1 - SIID (Insulator and Switch are one piece) Sold-Out Paddle Wide and Narrow 432,070,19x.x3 - Standard 609,070,19x.x3 - Special use only VEND MOTOR NARROW COLUMN Mounted on the Vender with the Vend Motor Switch on the underside (See Fig. 1). The shaft of the Vend Motor slides into a slot in the Vend Rotor (See Fig.
  • Page 23 Shim, 3/32 Flat (801,809,81x.x1) (#5) Shim, Bottle (609,070,15x.x3) 2.89" x 9.06" 600E 1 per side 1 per right side 276E Set-up subject to change without notice. For packages not listed contact Dixie-Narco Factory Service at (800) 688-9090. Page 21 of 72...
  • Page 24 1 per side (#5) 1 per right side 276E Assy, Bottle Divider (609,072,30x.x3) - 501E/276E (609,072,40x.x3) - 600E 1 per column Set-up subject to change without notice. For packages not listed contact Dixie-Narco Factory Service at (800) 688-9090. Page 22 of 72...
  • Page 25 Shim, 3/32 Flat (801,809,81x.x1) brown Shim, Bottle (609,070,15x.x3) 600E (#3) 1 per side (#5) 1 per right side 276E Set-up subject to change without notice. For packages not listed contact Dixie-Narco Factory Service at (800) 688-9090. Page 23 of 72...

  • Page 26: Adjustments: Cams/Rear Spacers

    Color of Cam is Gold. b. Color of Cam is Blue. c. Part #801,806,40x.x1 c. Part # 801,806,61x.x1 c. Part #801,806,39x.x1 Set-up subject to change without notice. For packages not listed contact Dixie-Narco Factory Service at (800) 688-9090. Page 24 of 72...
  • Page 27 CAM INSTALLATION AND REMOVAL TO INSTALL A VENDING CAM 1. Select the Vending Cam required (See page 24). 2. Locate the Hub at the center of the Cam (See Fig. 6). 3. With the Hub facing you, slowly slide the Cam on the front shaft of the Vend Motor while depressing the Lock Tab.
  • Page 28 (See Fig. 10), the Lock Tab will be at the 6 o'clock position (See Fig. 11). 7. Install the Adjustable Cam per the instructions on the previous page. Set-up subject to change without notice. For packages not listed contact Dixie-Narco Factory Fig. 10 Service at (800) 688-9090.
  • Page 29 REAR SPACER The Rear Spacer, one for each column, is located vertically at the rear of the column. The Springs, adjustable by hand, slide into the holes in the column wall for cans and other package settings. Rear Spacer Assembly 497,073,90x.x3 - Wide 600E 498,071,30x.x3 - Wide 501E 497,073,70x.x3 - Narrow 600E...

  • Page 30: Vend Cycle / Sequence Of Operation

    11. Closes and completes the circuit to the switch... vend motor coil. 12. The vend motor..12. Continues to run. Set-up subject to change without notice. For packages not listed contact Dixie-Narco Factory Service at (800) 688-9090. Page 28 of 72...
  • Page 31 WHAT DOES IT WHAT HAPPENS 13. The vending cam... 13. Works the arm of the vend motor switch and the switch arm rises to the high side of the cam. 14. The normally closed contact of the vend motor 14. And switch opens.
  • Page 32 Vend motor switch goes "Low Cam" *The changer pays back change *Credit system is re-enabled *Vender returns to standby Set-up subject to change without notice. For packages not listed contact Dixie-Narco Factory Service at (800) 688-9090. Page 30 of 72...

  • Page 33: Siid Controller Style Coin Mech Escrow To Select / Last Bill Escrow (E-S1)

    SEQUENCE OF OPERATION SIID CONTROLLER STYLE COIN MECH ESCROW TO SELECT / LAST BILL ESCROW (E-S1) STANDBY CREDIT VENDER PUSH SELECT BUTTON *Insert coins or currency *Vend price will appear in display window Display will show increment deposits CANCEL SALE *Pay back last dollar bill accepted and any deposit over $1.00 from the coin tubes *Remove all credits...

  • Page 34: Siid Controller Style Coin Mech Escrow To Select / No Bill Escrow (E-S4)

    *Display shows "Falling Bars" *Product is delivered Vend motor switch goes "Low Cam" *Credit system is re-enabled *Vender returns to standby Set-up subject to change without notice. For packages not listed contact Dixie-Narco Factory Service at (800) 688-9090. Page 32 of 72...
  • Page 35 Page 33 of 72...

  • Page 36: Troubleshooting

    CORRECTIONS FOR COMMON SINGLE PRICE VENDER VENDING PROBLEMS NOTE: When one or more circuits become inoperative on a Dixie-Narco vender, it is usually one component that has failed, and it is with this in mind that the accompanying troubleshooting schematic is presented.
  • Page 37 ACCEPTS COINS, WILL NOT VEND FROM ONE OR MORE COLUMNS Although all circuit problems are not necessarily found to be one or more inoperative select switches, the examples listed below are typical of select switch problems found in the control panel. Refer to figure 1 on page 33.
  • Page 38 The vend motor. Note: If the vend motor runs by depressing the vend switch, the vend motor is O.K. Set-up subject to change without notice. For packages not listed contact Dixie-Narco Factory Service at (800) 688-9090. Page 36 of 72...
  • Page 39 REJECTS ALL GOOD COINS Problem 1: The coin changer will not accept coins. Put product in each column. Follow the arrow WHICH IS THE DIRECTION OF FLOW OF THE ELECTRICAL CURRENT. (See figure below) DO THIS: Make sure there is product in each column. The sold out lamps are off. Follow the arrows from left to right.
  • Page 40 A. Select Switch; Sticking, A. Replace or Correct. push no button and product incorrectly wired, or bad. is vended time after time. Set-up subject to change without notice. For packages not listed contact Dixie-Narco Factory Service at (800) 688-9090. Page 38 of 72...
  • Page 41 ACCEPTS COINS AND WILL VEND, THEN REJECTS COINS BUT WILL CONTINUE TO FREE-VEND Problem 1: Set up Credit Push a Selection It will vend Push same Selection It will vend Rejects coins Push same selection It will continue to vend Reason: The by-pass switch is not canceling the credit.

  • Page 42: Troubleshooting

    Motor stops on high cam. Troubleshooting: Change vend switch. Install current software. -5 or 380.11 or greater two-button programming. Set-up subject to change without notice. For packages not listed contact Dixie-Narco Factory Service at (800) 688-9090. Page 40 of 72...
  • Page 43 -3.16 or 390.11 or greater four button programming. Page 41 of 72...

  • Page 44: Siid Coin / Currency

    Check voltage supply (110-115AC) at outlet. Check control board. Problem: BA30 stealing bills. Troubleshooting: Check door switch. Check validator. Set-up subject to change without notice. For packages not listed contact Dixie-Narco Factory Service at (800) 688-9090. Page 42 of 72...
  • Page 45 Check interface harness. Page 43 of 72...
  • Page 46 .60) Troubleshooting: Load the nickel tube in coin fill (CD) mode. Note: This is a Coinco 9302GX problem. Set-up subject to change without notice. For packages not listed contact Dixie-Narco Factory Service at (800) 688-9090. Page 44 of 72...

  • Page 47: Siid Sold Out

    SIID SOLD-OUT MESSAGE Problem: Sold-out message stays on. Troubleshooting: Check limited access program. Check for crossed wires in cabinet harness and cabinet extension harness or loose wire harness connection. Check for motors rubbing motor cover (on early SIID venders). Problem: Sold-out message comes on with product in column.
  • Page 48 5. Put other test lead on pin 28. 6. Volt meter should read minimum 2 VDC. 7. If bad battery (under 2 VDC), check the board. Set-up subject to change without notice. For packages not listed contact Dixie-Narco Factory Service at (800) 688-9090. Page 46 of 72...
  • Page 49 17. Problem: When programming prices, display will only increment in $1.00 amounts. Troubleshooting: Go to "bill" (set bills only) in menu and set to "bills no" (two-button programming only). Down-power the vender and plug in the coin mech. Install known good coin mech. Check control board.
  • Page 50 O.K.? P4-12 and P4-13 to switches. 1-1? O.K.? Repair wiring. Repair ground wire. Retest vender and return to service. Set-up subject to change without notice. For packages not listed contact Dixie-Narco Factory Service at (800) 688-9090. Page 48 of 72...
  • Page 51 Replace door switch. continuity. O.K.? Check P4 connector Check switch ground Repair ground wire. for bent pins. O.K.? wire for continuity. O.K.? Check continuity Call Dixie-Narco from door switch to Factory Service. P4. O.K.? Repair wiring. Page 49 of 72...
  • Page 52 O.K.? Check for bent pin in Repair bent pin and P4 connector. O.K.? retest. Call Dixie-Narco Factory Service. Set-up subject to change without notice. For packages not listed contact Dixie-Narco Factory Service at (800) 688-9090. Page 50 of 72...
  • Page 53 Check continuity of ground wire to Check continuity Replace switch. Repair bent pin board. O.K.? of switch. O.K.? and retest. Call Dixie-Narco Factory Service. Check for bent pin Is ground wire on Repair ground in P5 connector. switch O.K.? wire.
  • Page 54 Do 1 correct change vend. Replace USA. Has problem been TO B solved? Return vender to (on next page) service. Set-up subject to change without notice. For packages not listed contact Dixie-Narco Factory Service at (800) 688-9090. Page 52 of 72...
  • Page 55 Change coin mech to known good unit. Fill coin tubes 5¢, 10¢, 25¢. Do 1 exact change vend. Replace coin mech Retest note and retest. acceptor. O.K. Replace SIID package. Page 53 of 72...
  • Page 56 $1.00. O.K.? mech. O.K.? Replace coin mech. Replace with known good Check wiring Replace validator. continuity. O.K.? harness Set-up subject to change without notice. For packages not listed contact Dixie-Narco Factory Service at (800) 688-9090. Page 54 of 72...
  • Page 57 HIGH LEVEL NOTE ACCEPTOR TROUBLESHOOTING CHART (ALL ACCEPTORS) Problem: Note Acceptor will not take note or display credit when it does take note. Enter diagnostic menu and Make sure all advance to “nA”. vend prices are not zero. Plug acceptor in. Close door.
  • Page 58 Call Dixie-Narco Retest note Do 1 exact Replace coin Factory Service. acceptor. O.K.? change vend. mech and fill coin tubes. Set-up subject to change without notice. For packages not listed contact Dixie-Narco Factory Service at (800) 688-9090. Page 56 of 72...
  • Page 59 TROUBLESHOOTING CHART MULTIDROP COIN MECH / NOTE ACCEPTOR Problem: Note acceptor will not accept notes, and the exact change light is off. Is exact change lamp Enter “dSp” in Replace display board. diagnostics and test. Do display segments light? See if coin option is Advance to “nA”...
  • Page 60 Return vender to Do 1 exact change vend. service. Retest note acceptor. Has problem gone away. Call Dixie-Narco Factory Service. Set-up subject to change without notice. For packages not listed contact Dixie-Narco Factory Service at (800) 688-9090. Page 58 of 72...
  • Page 61 TROUBLESHOOTING CHART MULTIDROP COIN MECH Problem: Mech will not accept coins Mech won’t accept Advance to “S-P” or coins. Make sure coin “Price”. Set price. mech is plugged in. Check prices. Are all prices set to zero? Enter diagnostics Reset vend prices. RETURN TO A (above)
  • Page 62 (on previous page) Check coin mech with known good mech. Retest coin mech. Call Dixie-Narco O.K.? Factory Service. Replace coin mech. Set-up subject to change without notice. For packages not listed contact Dixie-Narco Factory Service at (800) 688-9090. Page 60 of 72...
  • Page 63 Check coin mech with Does mech function Replace coin mech. known good mech. properly? Place enough coins in mech to make change after a vend. Did mech dispense Call Dixie-Narco coins? Factory Service. Problem resolved. Page 61 of 72...
  • Page 64 Check coin mech extension harness. (above) Call Dixie-Narco Does mech function properly/ Check coin mech with known good mech. Factory Service. Set-up subject to change without notice. For packages not listed contact Dixie-Narco Factory Service at (800) 688-9090. Page 62 of 72...
  • Page 65 COIN MECH TROUBLESHOOTING CHART MC-5000 (Micro Mech) Interface Maka Only Problem: Mech will not accept coins. Scroll to “S-P”. Set price. Are prices set to zero? Enter diagnostics. Scroll to coin mech test Reset vend prices. “cn”. Check continuity of coin Insert 1 quarter, dime, &...
  • Page 66 Does coin mech with known good mech. Replace coin mech. Does new mech accept and display coins? Call Dixie-Narco Factory Service. Set-up subject to change without notice. For packages not listed contact Dixie-Narco Factory Service at (800) 688-9090. Page 64 of 72...

  • Page 67: Refrigeration Parts And Functions

    REFRIGERATION PARTS AND FUNCTIONS MECHANICAL PARTS COMPRESSOR MOTOR The compressor motor (sealed in the compressor housing) drives the compressor with a shaft that is shared by both parts. It is started by the temperature control switch and the starting relay. It is stopped by the temperature control switch and if subject to overload by the thermal overload switch.
  • Page 68 (start) helps the compressor motor come up to speed. Once it reaches speed the starting relay disconnects the start winding from the circuit. Set-up subject to change without notice. For packages not listed contact Dixie-Narco Factory Service at (800) 688-9090.
  • Page 69 ELECTRICAL OPERATION WHAT DOES IT WHAT HAPPENS WHEN THE VENDER TEMPERATURE GETS UP TO THE CUT-IN SETTING: The temperature control switch Closes the run winding circuit of the compressor motor. Closes the start relay coil circuit. Closes in the condenser fan motor circuit. THE HEAVY CURRENT, DRAWN BY THE RUN WINDING, ALSO FLOWS IN THE START RELAY COIL, AND: The start relay coil...
  • Page 70 Set-up subject to change without notice. For packages not listed contact Dixie-Narco Factory Service at (800) 688-9090. Page 68 of 72...
  • Page 71 REFRIGERATION CIRCUIT DIAGRAMS Tecumseh Embraco Page 69 of 72...

  • Page 72: Refrigeration Cycle

    The compressor Stops. The condenser fan motor Stops. (With the vender "Plugged In" the evaporator fan motor runs constantly) Set-up subject to change without notice. For packages not listed contact Dixie-Narco Factory Service at (800) 688-9090. Page 70 of 72...
  • Page 73 10. NO, replace. 11. Is the start relay operational? 11. NO, replace. 12. Is the compressor operational? 12. NO, replace. 13. Consult the Dixie-Narco Factory Service at 1-800-688-9090. Note: Have the vender model and serial number available. Page 71 of 72...
  • Page 74 2. YES, replace the refrigeration system. 3. Consult the Dixie-Narco Factory Service at 1-800-688-9090. Note: Have the vender model and serial number available. Set-up subject to change without notice. For packages not listed contact Dixie-Narco Factory Service at (800) 688-9090. Page 72 of 72...
  • Page 75 13. Is the start relay operational? 13. NO, replace. 14. Is there refrigerant in the system? 14. NO, charge system and check for leaks. 15. Consult the Dixie-Narco Factory Service at 1-800-688-9090. Note: Have the vender model and serial number available. Page 73 of 72...

  • Page 76: Noisy Refrigeration Unit

    4. YES, replace. 5. Consult the Dixie-Narco Factory Service at 1-800-688-9090. Note: Have the vender model and serial number available. Set-up subject to change without notice. For packages not listed contact Dixie-Narco Factory Service at (800) 688-9090. Page 74 of 72...

  • Page 77: Excessive Condensate

    YES, A. Level the vender properly. B. Align the inner and outer doors so that the delivery door does not stick open. 9. Consult the Dixie-Narco Factory Service at 9. Consult the Dixie-Narco Factory Service at 1-800-688-9090. 1-800-688-9090. Note: Have the vender model and serial number available.
