Dixie Narco 55 Series Technical Manual

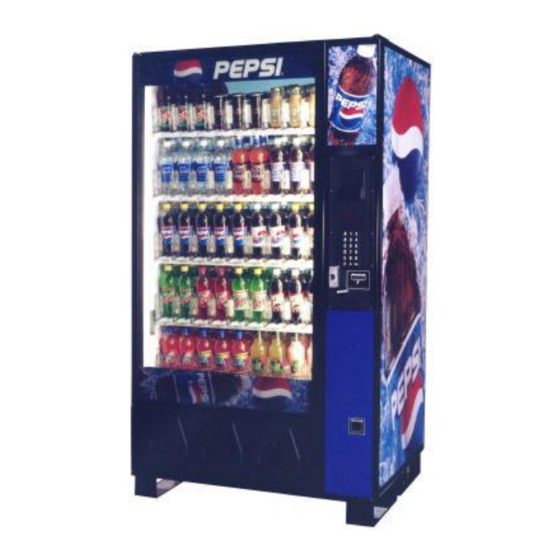

Glassfront beverage vender
Hide thumbs
Table of Contents

Advertisement

Quick Links

Glassfront Beverage Vender
Models DN 55##, DN 54##, DN 35##, DN 2145
First Production 0001-8000BW (April 1, 1998)
Manufactured by
Operation
Service
Parts
Troubleshooting
Manual
Dixie-Narco, Inc.
P.O. Drawer 719
Williston, SC 29853-0719
800-688-9090
803-266-5001
fax: 803-266-5049
Visit us on the web:
www.dixienarco.com
Version 030.11 and higher
803,902,680.41

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 55 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dixie Narco 55 Series

Summary of Contents for Dixie Narco 55 Series

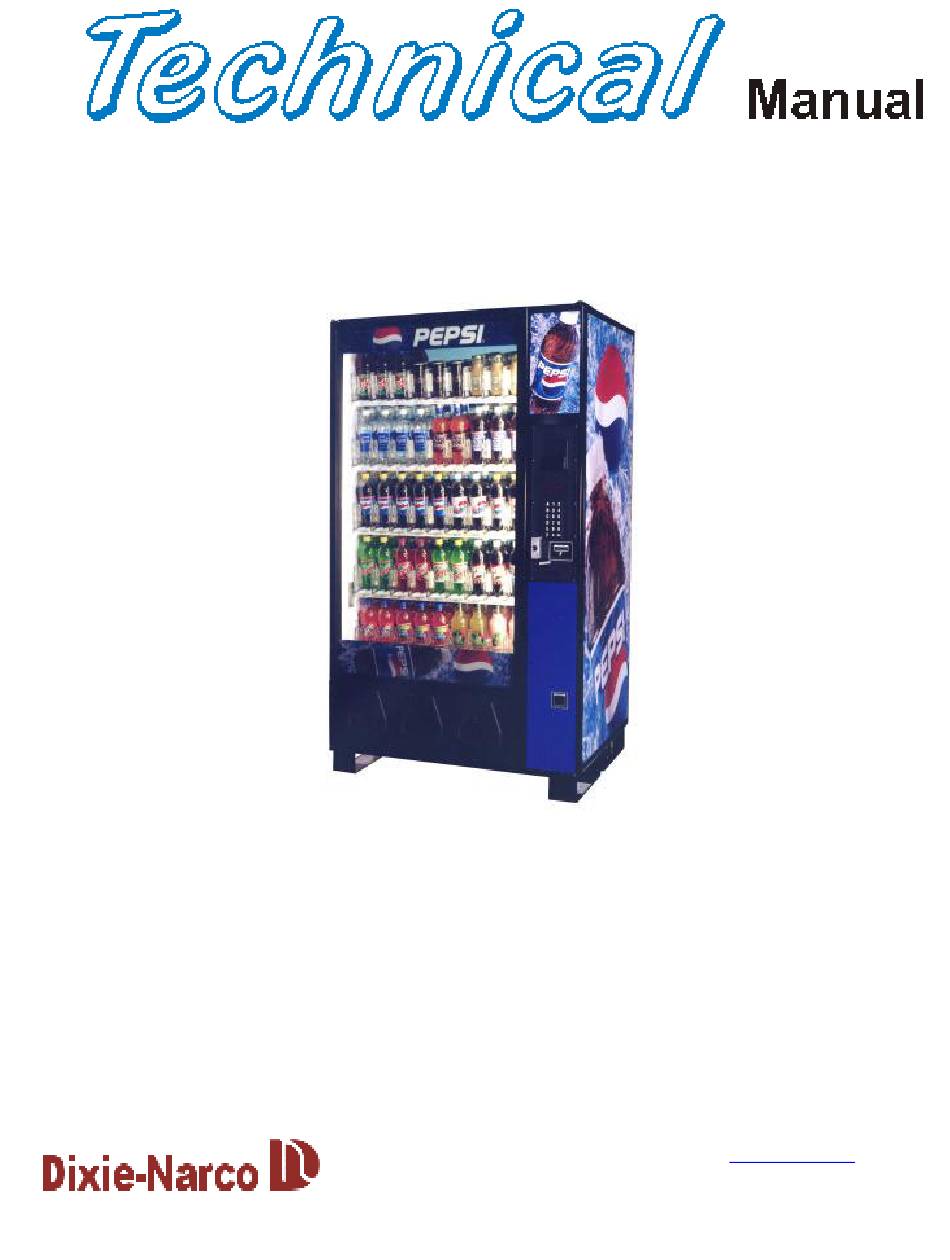

  • Page 1 Glassfront Beverage Vender Models DN 55##, DN 54##, DN 35##, DN 2145 First Production 0001-8000BW (April 1, 1998) Operation Service Parts Troubleshooting Manual Dixie-Narco, Inc. P.O. Drawer 719 Williston, SC 29853-0719 800-688-9090 Manufactured by 803-266-5001 fax: 803-266-5049 Visit us on the web: www.dixienarco.com Version 030.11 and higher 803,902,680.41...

  • Page 2: Table Of Contents

    Table of Contents GENERAL INFORMATION......................3 Vender Safety Precautions ..................... 3 Product Identification ...................... 3 Physical Characteristics....................3 INSTALLATION & SETUP..................... 4 - 8 Receiving Inspection....................... 4 Unpacking The Vender ....................4 Electrical Requirements....................4 Installation & Setup Instructions..................4 Placing the Vender On Location..................
  • Page 3 Selection Will Not Vend ..................37 - 38 ELECTRICAL DIAGRAMS & SCHEMATICS..............39 – 51 Vender Wiring Diagram ..................39 - 40 Compressor Wiring Diagram.................. 41 - 42 Right Side MDB System Schematic (ECC)..............43 Left Side MDB System Schematic (ECC)..............44 Domestic AC Distribution Box Schematic DN55##/2145 ..........

  • Page 4: General Information

    GENERAL INFORMATION VENDER SAFETY PRECAUTIONS PHYSICAL CHARACTERISTICS Please read this manual in its entirety. This service DN 2145 information is intended for use by a qualified service technician who is familiar with proper and safe HEIGHT 72” (1828.8 mm) procedures to be followed when repairing, replacing or adjusting any Dixie-Narco vender components.

  • Page 5: Installation & Setup

    INSTALLATION AND SETUP RECEIVING INSPECTION GROUND THE VENDER DO NOT STORE THE VENDER OUTSIDE. The vender is equipped with a three-wire power Upon receipt, inspect the vender for any shipping supply cord and MUST be plugged into a properly damage. If there is any damage, have the delivery grounded outlet.

  • Page 6: Placing The Vender On Location

    INSTALLATION AND SETUP vender is to be used in a bank of equipment, check Open the service door and unplug the main power the top and sides for proper alignment. If you are harness located on the front of the power box. unable to properly level the vender, select an alternate 1.

  • Page 7: Installing Labels & Flavor Cards

    INSTALLATION AND SETUP slightly bending sides of the label toward the front of the vender being careful not to crease the label. Once SETTING THE TEMPERATURE inserted, push the label firmly against the front of the CONTROL knuckle. This will insure the label is locked in place and will not fall out during normal operation of the This vender is equipped with a manual thermostat.

  • Page 8: Loading The Vender

    INSTALLATION AND SETUP LOADING THE VENDER VENDING MACHINE CONTROLLER (VMC) All venders are shipped with an assortment of spacers. Please contact a Service Representative or The vending machine controller is the heart of the refer to the proper Technical Publication for spacer Glass Front Vender and is located on the right side settings.

  • Page 9: Refrigeration System

    INSTALLATION AND SETUP REFRIGERATION SYSTEM GATE ASSEMBLY The refrigeration system is a single piece unit and is The gate assembly is mounted on the front portion of hermetically sealed. In the DN55##/54##/2145 tray assembly contains vending models it consists of a ½ horsepower compressor, two mechanism.

  • Page 10: Programming

    PROGRAMMING b. “Select Another Item <code>” – The selection can not vend due to the GENERAL INFORMATION error code indicated. The code can In order to fully utilize the many features of your be one or more of the following: vender it is important that you first understand the i.

  • Page 11: Initial Programming

    PROGRAMMING DO NOT press the “*” key when setting prices • INITIAL PROGRAMMING for individual selections. HAPPY HOUR TIMES Password protected. Before entering or changing this DATE/TIME setting you must enter the password. To set Happy Proper setting of items such as Happy Hour and Not Hour Times enter the “SETUP MODE”...
  • Page 12 PROGRAMMING SET NOT AVAILABLE TIMES Password protected. Before entering or changing this setting you must enter the password if one has been assigned. This mode allows up to 4 different time periods that use of the machine may be restricted. To set Not Available Times enter the “SETUP MODE”...

  • Page 13: Quick Reference Menu Items

    PROGRAMMING SERVICE MODE MENU ITEMS SETUP MODE SERVICE MODE A Next Item A Next Item B Enter Message B Cash Box C Clear Message C Sales D Enable/Disable $ D Display Temperature E Clear Cool Down E Set Cool Down F Master Reset F Clear Totals 1 Machine Number...

  • Page 14: Service Mode

    PROGRAMMING SET COOL DOWN - Press Key “E” SERVICE MODE MENU ITEMS Allows the service technician to set the cool down period for each selection that is warm after SERVICE MODE restocking. This feature may be set on an individual Enter SERVICE MODE by opening the service door item, a complete tray, or the entire machine.
  • Page 15 PROGRAMMING SALES BY COLUMN - Press key “3” CLEAR TOTALS Press key “F” Shows the total number sold from each selection Allows the service technician to clear totals in CASH since the last CLEAR TOTALS or MASTER RESET. BOX, SALES, NUMBER SOLD, DOOR OPENINGS, Press the number “3”...
  • Page 16 PROGRAMMING SET REGULAR PRICES - Press key “7” CLEAR ERRORS - Press key “0” Allows the setting of regular prices for an individual Allows the service technician to clear any recorded item, a complete tray, or the entire machine. Factory errors.

  • Page 17: Test Mode

    PROGRAMMING PWR OUT Indicates an interruption of the power to the controller board. When the display reads PWR TEST MODE OUT, press the “A” key and the date and time of the Enter TEST MODE by opening the service door and last power interruption will be displayed.
  • Page 18 PROGRAMMING SELF TEST - Press key “C” TUBE FILL/DISPENSE - Press key “1” Allows the service technician to run a quick Allows the service technician to inventory currency in diagnostics of all solenoids and their associated the coin mechanism escrow tubes and “Teach” the harnesses and control board drivers.
  • Page 19 PROGRAMMING the display, press the “A” key to scroll through the last five outages. Press the “CLR” key to return to SET NOT AVAILABLE MODE - Press key “3” “TEST MODE”. This setting works in conjunction with the “SET NOT AVAILABLE TIME”...

  • Page 20: Setup Mode

    PROGRAMMING ENABLE DOLLAR SIGN - Press key “D” SETUP MODE (PASSWORD REQUIRED) Enter SETUP MODE by opening service door and Allows the service technician to remove the dollar pressing the Service button three times. The display sign ($) from the display when a product price, will read “SETUP MODE”.
  • Page 21 PROGRAMMING The table outlines the results of using MASTER SET HAPPY HOUR - Press key “2” RESET. (PASSWORD REQUIRED) ITEM RESET TO Allows the service technician to set times and days CASH BOX $0.00 for Happy Hour operation. Press the number “2” on SALES $0.00 the keypad and “SET HAPPY HOUR”...
  • Page 22 PROGRAMMING TOTAL SALES - Press key “6” DROP SENSOR ENABLED/DISABLED - Press key “8” Shows total sales since machine manufacture or last MAS-TER RESET. This total is not cleared by (PASSWORD REQUIRED) CLEAR TOTALS. Press the number “6” on the Allows Enabling or Disabling of drop sensor Credit keypad, the display will scroll “TOTAL SALES”...

  • Page 23: Setup Mode 2

    PROGRAMMING DEFAULT STS CONFIG - Press key “D” SETUP MODE 2 Configures the Space-to-Sales to the preset Enter SETUP MODE 2 by opening the main door mappings. and pushing the Service button four times. Press “D” on the keypad and the display will scroll display will read “SETUP MODE 2”...
  • Page 24 PROGRAMMING HEALTH RECHECK ENABLED/DISABLED - Press key “1” PRICE DISPLAY ENABLED/DISABLED - Press key “4” When enabled, after a “HEALTH TIME” error has occurred, the vender will recheck the cooler This setting controls whether the vender displays a compartment temperature 3 times in 15-minute price when a selection is made.

  • Page 25: Major Component Description

    MAJOR COMPONENT DESCRIPTION AC DISTRIBUTION BOX REFRIGERATION UNIT DN55## / DN2145 DN5500 / DN5400 110 VAC and 220 VAC units DN2145 (Roll-Up) 110 VAC and 220 VAC units Main Power Switch / Plug Interrupts hot side of incoming power Compressor Tecumseh, 1/2 HP, 115 to all components in VAC, 60 Hz, 1 Phase...
  • Page 26 MAJOR COMPONENT DESCRIPTION REFRIGERATION UNIT AC DISTRIBUTION BOX DN35## DN35## 110 VAC units 110 VAC and 220 VAC units Compressor Aspera, 1/2 HP, 115 VAC, Main Power Switch / Plug Interrupts hot side 60 Hz, 1 Phase of incoming power T6213Z to all components in Unit uses 13 oz.

  • Page 27: General Maintenance

    GENERAL MAINTENANCE scratches on painted surfaces to prevent The most important facets of proper care and corrosion. maintenance of your machine are the electrical Check the drain pan periodically for dirt, debris, power supplied to it, leveling, and cleanliness of the and proper alignment.

  • Page 28: Electrical Diagrams & Schematics

    ELECTRICAL DIAGRAMS & SCHEMATICS FIGURE 2 – MDB CONTROLLER CONNECTIONS DN 55## / 54## / 35## SERIES INDEX NUMBER CONNECTION DESCRIPTION Power from AC Distribution Box Bottle Drop Sensor Multi Drop Bus Door Interlock Switch Digital Display Temperature Sensor Keypad Bottom Row J3 –...

  • Page 29: Dual Sensor Board

    ELECTRICAL DIAGRAMS & SCHEMATICS DUAL SENSOR BOARD...

  • Page 30: Troubleshooting

    TROUBLESHOOTING COIN ACCEPTANCE ISSUES PROBLEM CAUSE Coins Returned to Customer 1. Coin Jam in Mech 1. Clear Jam and Test With No Credit Issued 2. Flight Deck Dirty 2. Clean Flight Deck 3. No Power to Mech 3. Check Harness, Changer to 4.

  • Page 31: All Coins Rejected

    TROUBLESHOOTING These charts are intended as a guide to isolate and correct most problems you might encounter. Should your machine scroll ‘OUT OF SERVICE”, go in the TEST MODE and press “B” to list errors. ALL COINS ARE REJECTED All coins are rejected. Main Power OFF / Apply power Disconnected.

  • Page 32: All Bills Rejected

    TROUBLESHOOTING ALL BILLS ARE REJECTED All bills are rejected. Main Power OFF / Apply power Disconnected. Check fuses and Blown Fuse replace if necessary. List errors to determine Machine is Out Of cause of Out Of Service. Service. Refer to pg. 13 for error explanations.

  • Page 33: Incorrect Change Dispensed

    TROUBLESHOOTING INCORRECT CHANGE DISPENSED Incorrect change dispensed. Check price and Vend prices set reset if incorrectly. necessary. Check coin Coins not laying flat in tubes; clear and tubes. reload coins. Defective coin Replace. mechanism. Defective controller Replace. board.

  • Page 34: Selection Will Not Vend

    TROUBLESHOOTING SELECTION WILL NOT VEND Selection will not vend. Check price and Vend price set reset if incorrectly. necessary. Check price, ensure credit is Insufficient credit. equal to or greater. Product and gate mis- Check gate / matched. spacer. Move product away from gate (removing the weight) and use "Test Vend"...

  • Page 35: Ice / Frost On Evaporator

    TROUBLESHOOTING ICE / FROST ON EVAPORATOR Ice / frost on evaporator. Condensate drain Clear drain. plugged. Check product door Air leak. seal and cable openings in cabinet. CONDENSATE ON OUTSIDE OF PRODUCT DOOR Condensate on outside of product door. Machine in direct Move machine.

  • Page 36: Compressor Will Not Start

    TROUBLESHOOTING COMPRESSOR WILL NOT START Compressor will not start. Close service Service door open. door. Plug compressor in Compressor is outlet on face of unplugged. AC distribution box. Defective door interlock Replace switch. Check power Low voltage. source. Defective thermostat. Replace.

  • Page 37: Machine Not Cooling

    TROUBLESHOOTING MACHINE NOT COOLING Machine not cooling. Dirty or clogged Clean. condenser. Defective thermostat. Replace. Check rear screen for obstructions. Ensure rear of Restricted airflow. cabinet is at least 3.25" (82.6 mm) from wall. Machine in direct Move machine. sunlight. Faulty product seal.

  • Page 38: Selection Will Not Vend

    TROUBLESHOOTING TROUBLESHOOTING “SELECTION WILL NOT VEND” ISSUES 1. Selection will not vend a. Does a different selection vend? i. Shelf harness swapped 1. Perform TEST VEND in TEST MENU ensure proper selection vends ii. Space-To-Sales has been enabled 1. Check STS configuration in SETUP MENU 2 b.
  • Page 39 TROUBLESHOOTING ii. Gate did not rattle or solenoid did not click (continued) 2. Software did not attempt to vend a. Check error list. Does error list show “VEND ERR”, with selection included in vend error list when pressing “A”? i. A previous vend operation, vend test, or self test indicated a solenoid error b.

  • Page 40: Electrical Diagrams & Schematics

    ELECTRICAL DIAGRAMS & SCHEMATICS 9 COLUMN VENDER...
  • Page 41 ELECTRICAL DIAGRAMS & SCHEMATICS 6 COLUMN VENDER...

  • Page 42: Compressor Wiring Diagram

    ELECTRICAL DIAGRAMS & SCHEMATICS COMPRESSOR WIRING DIAGRAM (DN55## / DN2145 – ROLL UP CONDENSER)
  • Page 43 ELECTRICAL DIAGRAMS & SCHEMATICS DN35## compressor Wiring Diagram...

  • Page 44: Right Side Mdb System Schematic (Ecc)

    ELECTRICAL DIAGRAMS & SCHEMATICS ECC SYSTEM SCHEMATIC (RIGHT SIDE; MDB) SAMPLE...

  • Page 45: Left Side Mdb System Schematic (Ecc)

    ELECTRICAL DIAGRAMS & SCHEMATICS ECC SYSTEM SCHEMATIC (LEFT SIDE) SAMPLE...

  • Page 46: Domestic Ac Distribution Box Schematic Dn55##/2145

    ELECTRICAL DIAGRAMS & SCHEMATICS DN55##/2145 AC DISTRIBUTION BOX SCHEMATIC DOMESTIC FIGURE 3...

  • Page 47: Export Ac Distribution Box Schematic Dn55##/2145

    ELECTRICAL DIAGRAMS & SCHEMATICS DN55##/2145 AC DISTRIBUTION BOX SCHEMATIC – EXPORT FIGURE 4...

  • Page 48: Domestic Ac Distribution Box Schematic T8 Electronic

    ELECTRICAL DIAGRAMS & SCHEMATICS DN35## AC DISTRIBUTION BOX SCHEMATIC – DOMESTIC FIGURE 5...

  • Page 49: Ac Distribution Box J2 Port Voltages

    ELECTRICAL DIAGRAMS & SCHEMATICS AC VOLTAGES Domestic Export Between Pins Reading Reading 24 VAC 24 VAC 12 VAC 12 VAC 12 VAC 12 VAC 24 VAC 24 VAC 115 VAC 220 VAC 115 VAC 220 VAC AC DISTRIBUTION BOX, J2 VOLTAGES – ITEM 1...

  • Page 50: Assembly, Export Ac Distribution Box

    ELECTRICAL DIAGRAMS & SCHEMATICS ASSY AC BOX CE / GS EXPORT...

  • Page 51: Assembly, Domestic Ac Distribution Box

    ELECTRICAL DIAGRAMS & SCHEMATICS ASSY AC BOX DOMESTIC...

  • Page 52: Assembly, Domestic Ac Distribution Box T8 Electronic

    ELECTRICAL DIAGRAMS & SCHEMATICS ASSY AC BOX DOMESTIC T8 Electronic...
  • Page 53 COMPATIBLE CURRENCY / CREDIT UNITS PARTS LIST...

  • Page 54: Parts List And Diagrams

    ELECTRICAL DIAGRAMS & SCHEMATICS MACHINE FRONT VIEW...
  • Page 55 ELECTRICAL DIAGRAMS & SCHEMATICS MACHINE FRONT VIEW INDEX NUMBER PART NUMBER PART DESCRIPTION 800,101,89x.x1 DN55## Door Assembly, Glass (0001-8072 & higher) 800,102,11x.x1 DN55##/54## Door Assembly, Glass, Special 3 Pane (0001-8072 & higher) 800,101,86x.x1 DN2145 Door Assembly, Glass (prior to 0001-8072) 800,102,18x.x1 DN35## Door Assembly, Glass 800,102,03x.x1...
  • Page 56 ELECTRICAL DIAGRAMS & SCHEMATICS MACHINE FRONT VIEW...
  • Page 57 ELECTRICAL DIAGRAMS & SCHEMATICS MACHINE FRONT VIEW – continued INDEX NUMBER PART NUMBER PART DESCRIPTION 804,913,76x.x1 Assembly, Product Sensor with Harness (Dual Sensor 8105 & after) a10B 622,050,90x.x3 Sensor Mounting Plate (prior to 0001-8072) 627,050,12x.x3 Sensor Mounting Plate (2 Sensor – 0001-8072 & higher) 804,919,05x.x1 Dual Vend Sensor Adapter 900,701,27x.x1...

  • Page 58: Cabinet Detail

    ELECTRICAL DIAGRAMS & SCHEMATICS CABINET DETAIL...
  • Page 59 ELECTRICAL DIAGRAMS & SCHEMATICS CABINET DETAIL INDEX NUMBER PART NUMBER PART DESCRIPTION 622,070,02x.x3 Left Tray Mounting Bracket, Domestic DN 2145 622,050,35x.x3 DN2145, Export 627,070,21x.x3 DN5591/3591 627,070,08x.x3 DN5592/3592 627,070,12x.x3 DN5593 DN5594/3594 627,070,25x.x3 622,050,36x.x3 Mexico 600 ml DN2145 D042 Rear Tray Support Bracket, Domestic DN2145 622,050,33x.x3 Export DN2145 622,050,38x.x3...
  • Page 60 ELECTRICAL DIAGRAMS & SCHEMATICS CABINET DETAIL...
  • Page 61 ELECTRICAL DIAGRAMS & SCHEMATICS CABINET DETAIL - continued INDEX NUMBER PART NUMBER PART DESCRIPTION 622,050,10x.x3 Cash Box Assembly (prior to 041-8019BX) 432,051,80x.x3 Cash Box Assembly (041-8019BX and higher) 622,050,00x.x3 Cash Box Shelf (prior to 041-8019BX) 622,050,25x.x3 Cash Box Shelf (041-8019BX and higher) D200-3 Locking Cash Box Kit (used with Metal cash Box) prior to 041-8019BX 432,011,50x.x4...

  • Page 62: Refrigeration Unit Dn55##/Dn54##/Dn2145 Roll Up Condenser

    ELECTRICAL DIAGRAMS & SCHEMATICS REFRIGERATION UNIT – TECUMSEH (DN 5500 / DN 5400 / DN 2145 – ROLL UP CONDENSER)
  • Page 63 ELECTRICAL DIAGRAMS & SCHEMATICS REFRIGERATION UNIT – TECUMSEH DN 5500 / DN 5400 / DN 2145 – ROLL UP CONDENSER) INDEX NUMBER PART NUMBER PART DESCRIPTION 804,501,19x.x1 Condenser Fan Assembly, 115 V / 60 Hz 804,501,10x.x1 Condenser Fan Assembly, 220-230 V / 50 Hz F470 Condenser Fan Motor, 115 V 60 Hz 9W F471...

  • Page 64: Refrigeration Unit Dn35## Fin & Tube Condenser

    ELECTRICAL DIAGRAMS & SCHEMATICS REFRIGERATION UNIT – ASPERA (DN 35## FIN & TUBE CONDENSER)
  • Page 65 ELECTRICAL DIAGRAMS & SCHEMATICS REFRIGERATION UNIT – ASPERA (DN 35## FIN & TUBE CONDENSER) INDEX NUMBER PART NUMBER PART DESCRIPTION Refrigeration Unit 2001 C-A, 115V/60Hz Domestic Kit 635,050,06x.x3 Refrigeration Unit 2001 C-A, 115V/60Hz Domestic 626,040,60x.x3 Compressor Assy. 115V/60Hz Domestic 802,502,22x.x1 Compressor “A”...

  • Page 66: Service Door Front

    ELECTRICAL DIAGRAMS & SCHEMATICS SERVICE DOOR (FRONT)
  • Page 67 ELECTRICAL DIAGRAMS & SCHEMATICS SERVICE DOOR (FRONT) INDEX NUMBER PART NUMBER PART DESCRIPTION 622,050,50x.x3 Service Door Assembly, 3 Point Lock DN2145 627,050,10x.x3 Service Door Assembly, 3 Point Lock DN55##/35## 626,051,60x.x3 Service Door Assembly, 3 Point Lock DN2145 Export 622,051,70x.x3 Service Door Assembly, Double Knock Out, 3 Point Lock DN2145 627,050,50x.x3 Service Door Assembly, Double Knock Out, 3 Point Lock DN55##/35## 803,857,25x.x1...
  • Page 68 ELECTRICAL DIAGRAMS & SCHEMATICS SERVICE DOOR (FRONT)
  • Page 69 ELECTRICAL DIAGRAMS & SCHEMATICS SERVICE DOOR (FRONT) - continued INDEX NUMBER PART NUMBER PART DESCRIPTION W367 Display Filter, Red 901,001,46x.x1 Display Spacer – standoff W737 Bearing, Service Door (not shown) 804,919,95x.x1 Assembly. Display IR Capable (production run 8206AB) 804,914,89x.x1 Assembly, 8 Digit, 14 Segment Display W121 Cover, Display 622,052,20x.x3...

  • Page 70: Service Door Back

    ELECTRICAL DIAGRAMS & SCHEMATICS SERVICE DOOR (BACK)
  • Page 71 ELECTRICAL DIAGRAMS & SCHEMATICS SERVICE DOOR (BACK) INDEX NUMBER PART NUMBER PART DESCRIPTION F557 Spacer, 10-32 .31 OD .6252L – 3 Point Lock 800,503,31x.x1 Latch Bar – 3 Point Lock 801,305,58x.x1 Bottom Latch – 3 Point Lock 900,201,87x.x1 Phillips Trusshead Screw #10-32x3/8 F240-3 Latch Spacer –...

  • Page 72: Tall Gate Tray Detail

    ELECTRICAL DIAGRAMS & SCHEMATICS TALL GATE TRAY DETAIL...
  • Page 73 ELECTRICAL DIAGRAMS & SCHEMATICS TALL GATE TRAY DETAIL INDEX NUMBER PART NUMBER PART DESCRIPTION Tray Assembly, 9 Column ALL DN5592/5593/5591/5594 prior to 0001- 622,071,10x.x3 8107; ALL DN2145, All DN5493 622,070,70x.x3 Top Tray Assy., 9 Column Tall Gate, Export DN2145 prior to 0001-8072 622,053,0x.x3 Tray Assy., 8 Column DN5483 627,070,80x.x3...

  • Page 74: Domestic Ac Box

    ELECTRICAL DIAGRAMS & SCHEMATICS DOMESTIC AC DISTRIBUTION BOX, 110 VAC...
  • Page 75 ELECTRICAL DIAGRAMS & SCHEMATICS DOMESTIC AC DISTRIBUTION BOX, 110 VAC INDEX NUMBER PART NUMBER PART DESCRIPTION Domestic AC Box Kit – includes AC Box, Main Power Harness, and MDB 622,052,70x.x4 Interior Power Harness 622,060,10x.x3 AC Distribution Box, 110 V / 60 Hz 635,060,30x.x3 Assy.

  • Page 76: Export Ac Box

    ELECTRICAL DIAGRAMS & SCHEMATICS EXPORT AC DISTRIBUTION BOX, 220 VAC...
  • Page 77 ELECTRICAL DIAGRAMS & SCHEMATICS EXPORT AC DISTRIBUTION BOX, 220 VAC INDEX NUMBER PART NUMBER PART DESCRIPTION 622,061,40x.x3 AC Distribution Box, Export CE / GS 804,913,75x.x1 MDB Interior Power Harness 804,914,06x.x1 MicroMech Interior Power Harness F535 Plug, 15 Amp, 240 V (Power In) – 2 Pole 3 Wire (Main Power Plug) 804,914,94x.x1 AC Power-In Export Harness 802,800,75x.x1...

  • Page 78: Miscellaneous

    ELECTRICAL DIAGRAMS & SCHEMATICS Miscellaneous Parts Not Shown PART NUMBER PART DESCRIPTION 627,020,60x.x4 Vender Lag Bracket Kit (0001-8124 & higher) 803,903,68x.x1 Manual, Service / Operation / Parts W485 Label Set, Price and Product W485-1 Label Set, Product Only (i.e. A1, A2, etc.) D014 Wall Stand-Off Bracket Kit 804,917,03x.x1...

  • Page 79: Compatible Currency / Credit Units

    ELECTRICAL DIAGRAMS & SCHEMATICS COMPATIBLE CURRENCY / CREDIT UNITS MDB COIN MECHANISMS: Mars TRC6510 MDB 24 Volt 6 Pin Coinco 9302GX MDB 24 Volt 6 Pin Conlux CCM5G 1-2-3-4-5 MDB BILL VALIDATORS: Mars VN2512 Coinco BA30B Conlux NBM-3000 Series MDB CARD READERS: Debitek V15-MDB Danyl Smartcard VCU-MDB Note: The control board will not allow these units to be set to accept $2.00 bills.

This manual is also suitable for:

54 series35 series2145
