ZiLOG ZMOTION Series Getting Started page 7

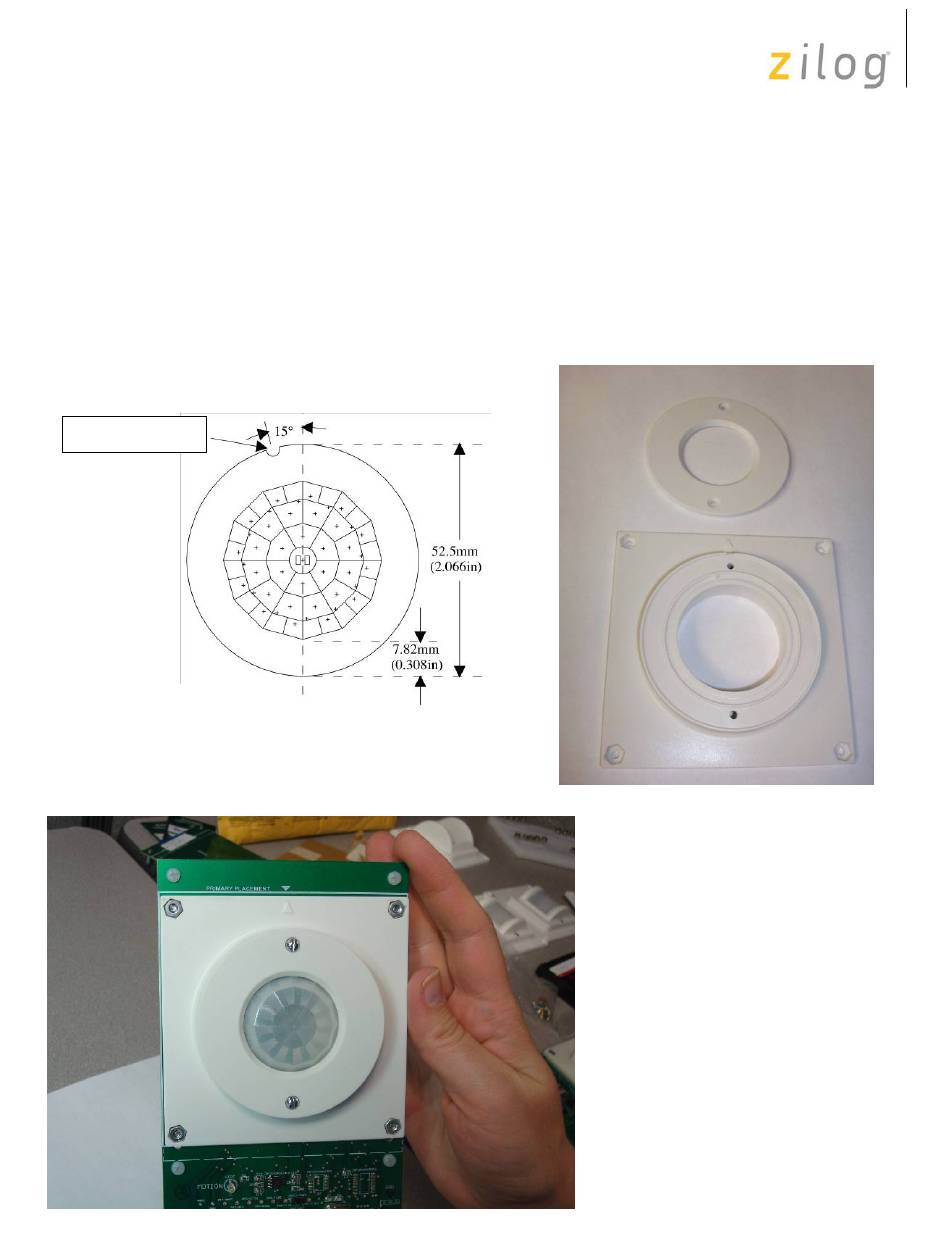

Circular Lens Holder 0.77 Focal
The circular lens holder is a 2 piece assembly that provides a 0.77" focal length mounting. To
assemble the lens and lens holder, place the circular lens into the base of the lens holder, aligning the
notch on the lens with the inside notch on the base. Place the circular cap over the lens and the base
ensuring the outside tab on the cap aligns with the outside tab on the base. Use the provided ¾"
machine screws (2) with a nut to secure the cap in place. Place the lens and lens holder assembly on
TM
the to ZMOTION Development board with the arrow on the lens holder, aligned with the "Primary
Placement" arrow on the circuit board. The 4 screw holes in the circuit board should line up with the 4
mounting holes in the lens holder. Use the provided ½" machine screws (4) with a nut to secure the
lens holder in place.
Notch on Lens
Circular Lens: CM 0.77 GI V5
UM022801-0610
Getting Started with Zilog's ZMOTION
Assembled Circular 0.77" Lens
holder and Circular Lens installed
on ZMOTION
Board
TM Development Kit
Circular 0.77" Lens
Holder (Cap and Base)
TM
Development
7 of 18
