Getting Started with Zilog's ZMOTION TM Development Kit
TM
Make sure the ZMOTION Development board is powered off and connect the USB Smart Cable
(Debugger) to P3 as described above.
Apply power to the Development board and click the "Reset" icon in ZDS-II.
An information notice may appear indicating that the silicon is not the latest version. This is normal
and not an issue. Click OK to continue. You should end up with a message in the Debug Output
Window indicating that the load was successful.

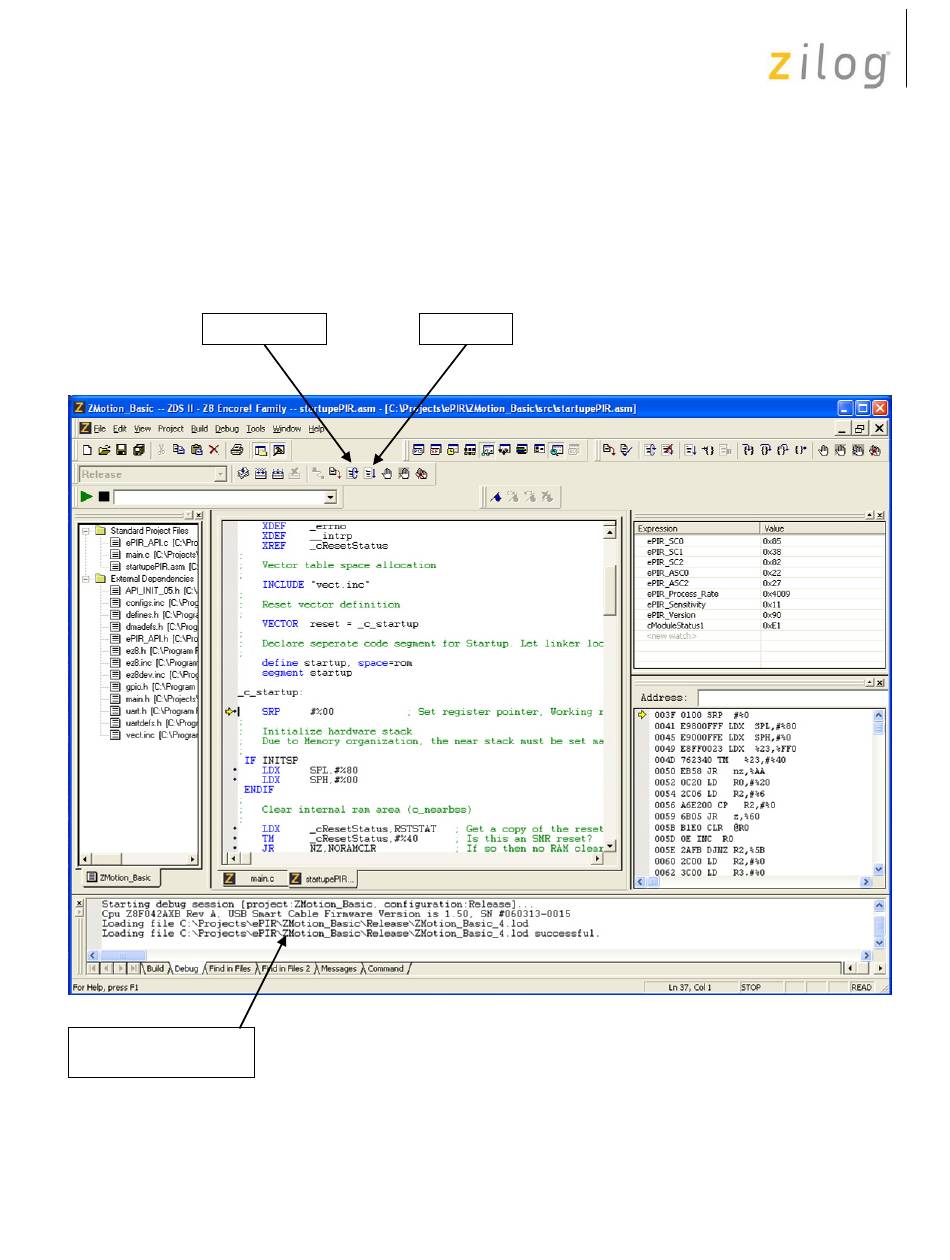

"Reset" Icon "Go" Icon
Debug Window Output
after clicking Reset
Click on the "Go" icon to start the application running. The Red LED will be ON initially until the
pyroelectric sensor stabilizes. This can take up to 30 seconds. Once it is stable, the LED is turned off
and only comes on when motion is detected. Wave your hand over the lens and notice the LED
turning ON for approximately 1 second.
