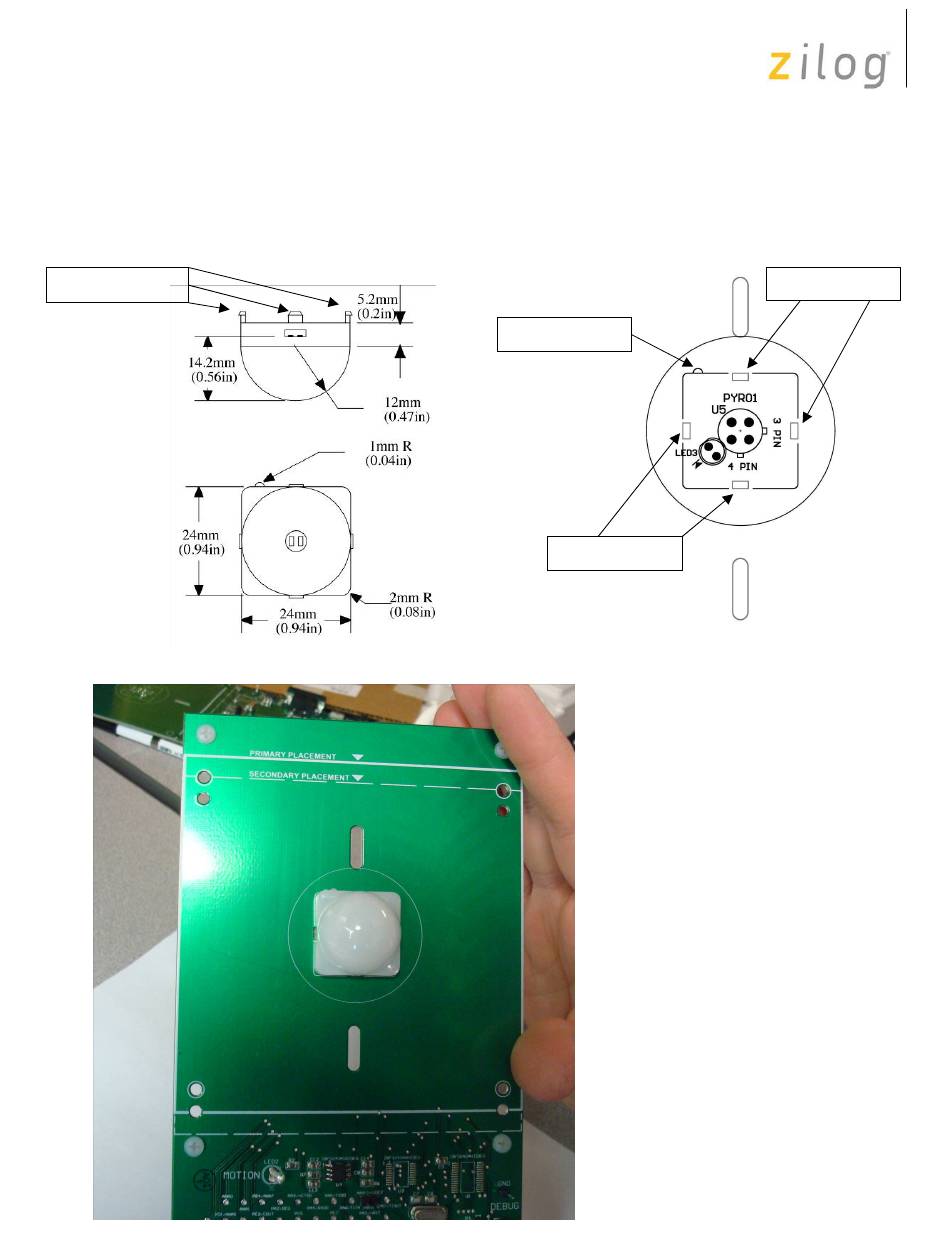

Circuit Board Clip In
This lens style clips directly into the circuit board over top the PIR sensor. There are 4 mounting clips
on the lens that are aligned with the slots in the circuit board. Note the locating tab on the side of the
lens is to be aligned with the tab on the silk-screen.
Mounting Clips
CWM 0.5 GI V1 Lens
UM022801-0610
Getting Started with Zilog's ZMOTION
Locating Tab
Mounting Slots
CWM 0.5 GI V1 Lens and PIR
Sensor installed on
ZMOTION
Board
TM Development Kit
Mounting Slots
Lens Mounting Area on
TM
ZMOTION Development
Board
TM
Development
