yroelectric Sensor Socket
P

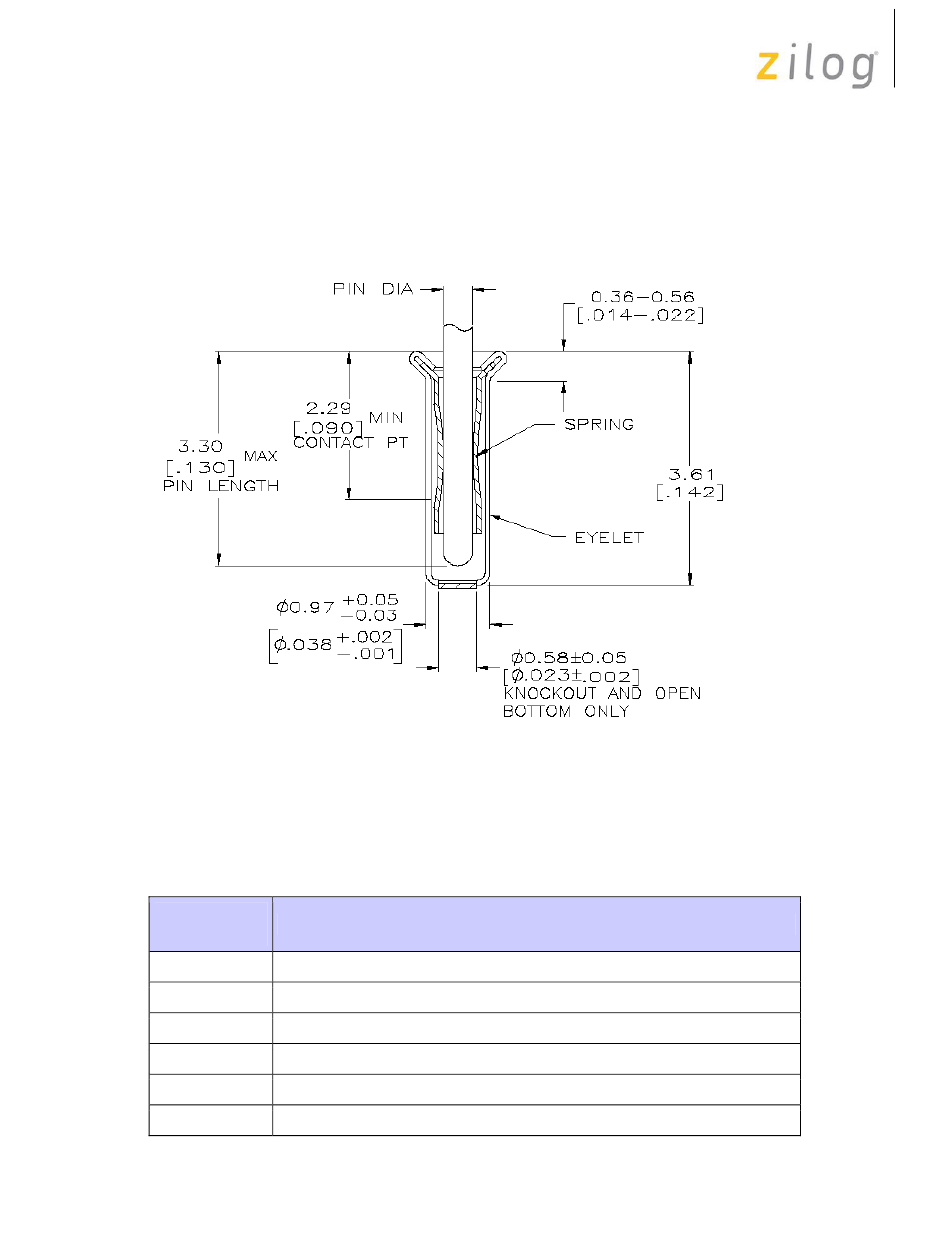

Mechanical information for the socket that holds the pyroelectric sensor is shown below.
The leads on the pyroelectric sensor should be trimmed no shorter than 2.3mm (.090") and no
longer than 3.3mm (0.130").
References
Refer to the following documentation for additional information:
Document
Number
PS0286
PS0285
PB0225
PB0223
PS0284
WP0017
UM022801-0610
Getting Started with Zilog's ZMOTION
TM
ZMOTION Lens and Pyroelectric Sensor Product Specification
TM
ZMOTION Detection and Control Product Specification
TM
ZMOTION Detection and Control Product Brief
TM
ZMOTION Detection Module Product Brief
TM
ZMOTION Detection Module Product Specification
A New PIR Motion Detection Architecture White Paper
Description
TM Development Kit
