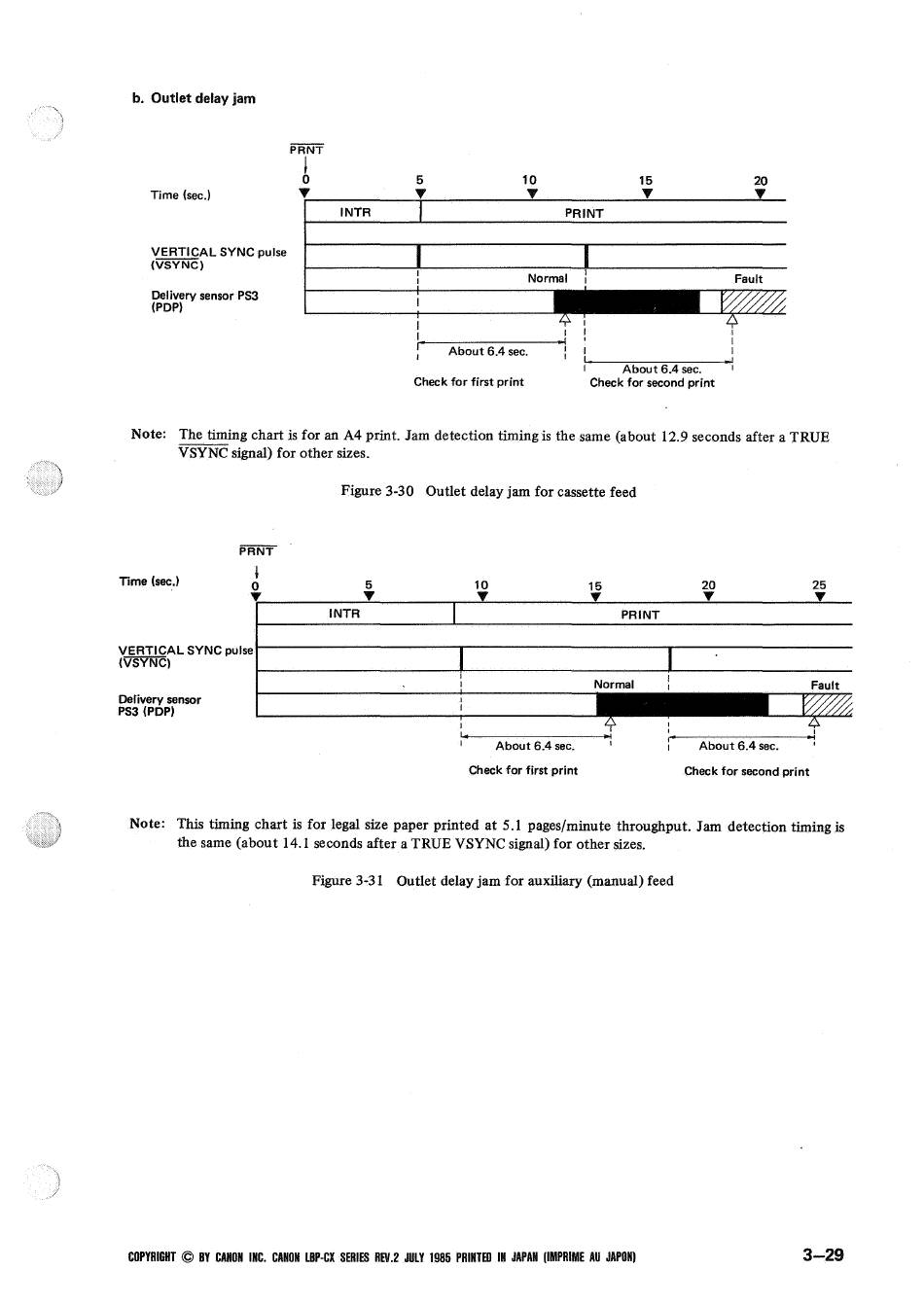

b. Outlet delay jam
Time (sec.)
VERTICAL SYNC pulse
(VSYNC)
Delivery sensor PS3
(PDP)
INTR
5
...
10
...
PRINT
15
...
Normal
About 6.4 sec.
Check for first print
I
•I
1
About 6.4 sec.
Check for second print
20
...
Fault
Note: The timing chart is for an A4 print. Jam detection timing is the same (about 12.9 seconds after a TRUE
VSYNC signal) for other sizes.
Time (sec.)
VERTICAL SYNC pulse
(VSYNC}
Delivery sensor
PS3 (PDP)
Figure 3-30 Outlet delay jam for cassette feed
INTR
5
...
10
...
About 6.4 sec.
Check for first print
15
...
PRINT
20
...
About 6.4 sec.
Check for second print
25
...
Note: This timing chart is for legal size paper printed at 5.1 pages/minute throughput. Jam detection timing is
the same (about 14.1 seconds after a TRUE VSYNC signal) for other sizes.
Figure 3-31 Outlet delay jam for auxiliary (manual) feed
COPYRIGHT
©
BY CANON INC. CANON LBP-CX SERIES REY.2 JULY 1985 PRINTm IN JAPAN (IMPRIME AU JAPON)
3-29
