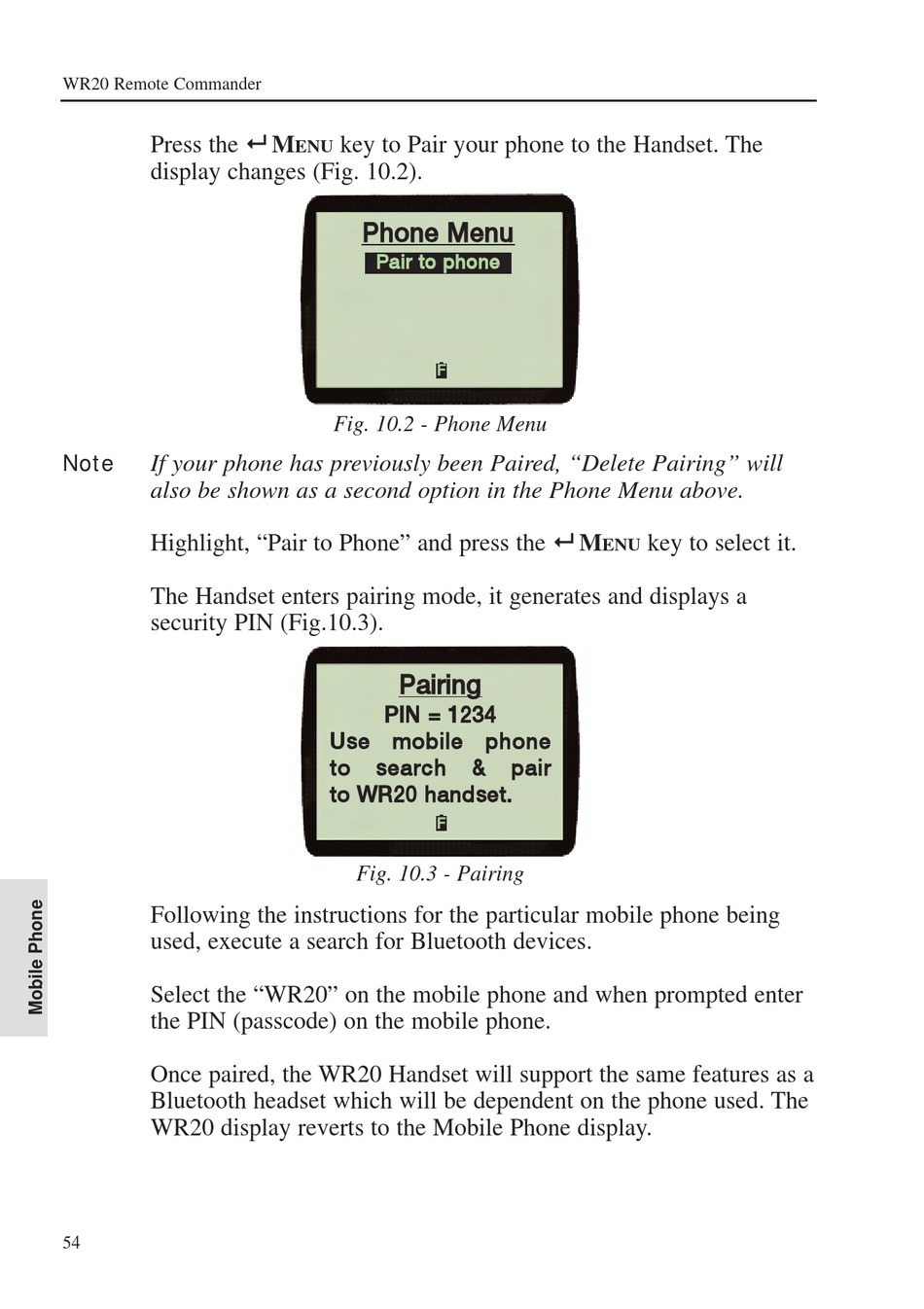

Simrad WR20 RemoteCommander Manual page 54

WR20 Remote Commander
Press the
display changes (Fig. 10.2).
Note
If your phone has previously been Paired, "Delete Pairing" will
also be shown as a second option in the Phone Menu above.
Highlight, "Pair to Phone" and press the
The Handset enters pairing mode, it generates and displays a
security PIN (Fig.10.3).
Following the instructions for the particular mobile phone being
used, execute a search for Bluetooth devices.
Select the "WR20" on the mobile phone and when prompted enter
the PIN (passcode) on the mobile phone.
Once paired, the WR20 Handset will support the same features as a
Bluetooth headset which will be dependent on the phone used. The
WR20 display reverts to the Mobile Phone display.
54
M key to Pair your phone to the Handset. The
ENU
mÜçåÉ= = jÉåì
m~áê= = íç= = éÜçåÉ
F
Fig. 10.2 - Phone Menu
m~áêáåÖ
mfk= = Z= = NOPQ
rëÉ= = ãçÄáäÉ= = éÜçåÉ
íç= = ëÉ~êÅÜ= = C= = é~áê
íç= = toOM= = Ü~åÇëÉíK
F
Fig. 10.3 - Pairing
M key to select it.
ENU
