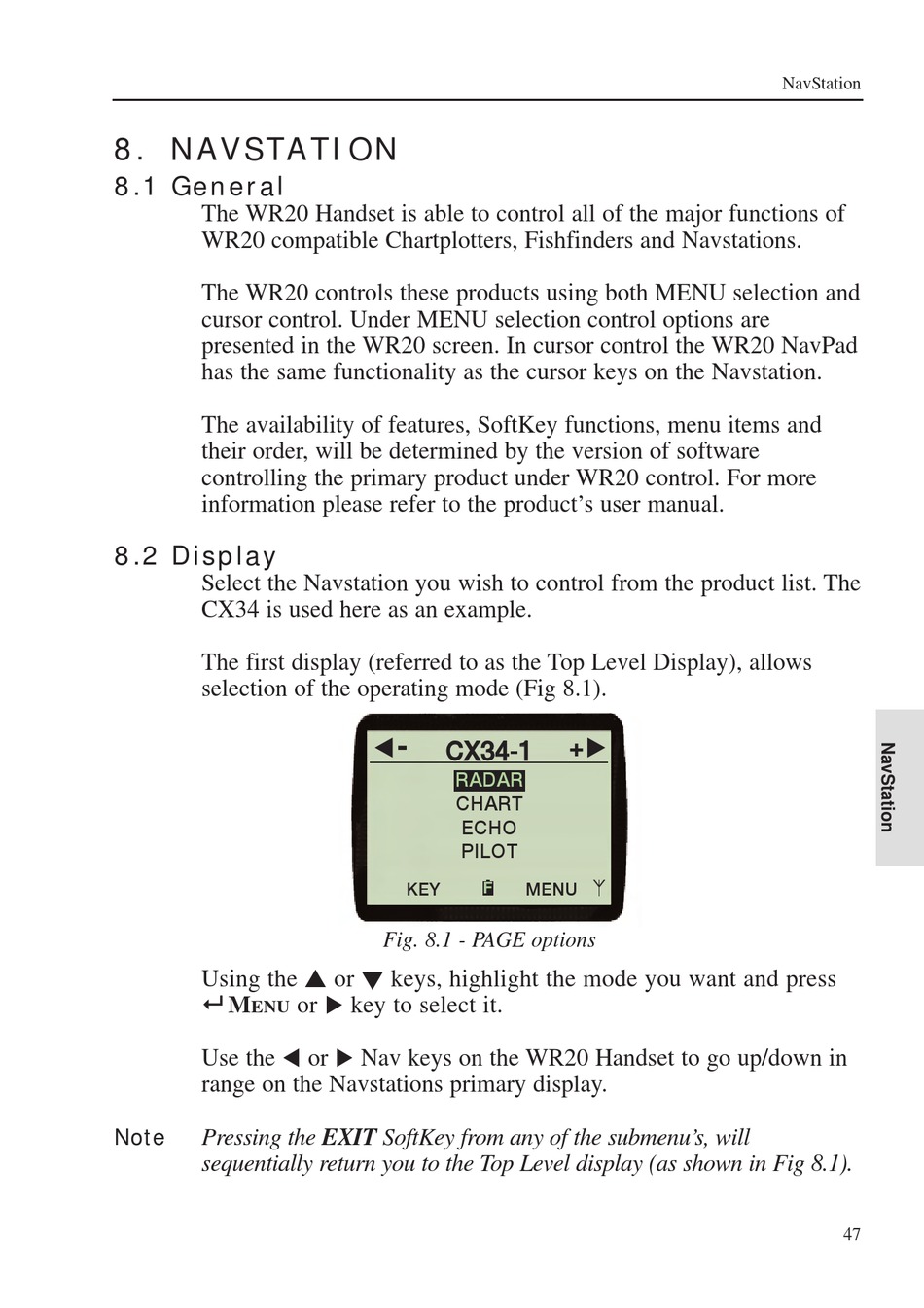

8. NAVSTATION

8.1 General

The WR20 Handset is able to control all of the major functions of
WR20 compatible Chartplotters, Fishfinders and Navstations.
The WR20 controls these products using both MENU selection and
cursor control. Under MENU selection control options are
presented in the WR20 screen. In cursor control the WR20 NavPad
has the same functionality as the cursor keys on the Navstation.
The availability of features, SoftKey functions, menu items and
their order, will be determined by the version of software
controlling the primary product under WR20 control. For more
information please refer to the product's user manual.

8.2 Display

Select the Navstation you wish to control from the product list. The
CX34 is used here as an example.
The first display (referred to as the Top Level Display), allows
selection of the operating mode (Fig 8.1).
Using the
M
ENU
Use the
range on the Navstations primary display.
Note
Pressing the EXIT SoftKey from any of the submenu's, will
sequentially return you to the Top Level display (as shown in Fig 8.1).
-
`uPQJN N
o^a^o
`e^oq
b`el
mfilq
hbv
Fig. 8.1 - PAGE options
or keys, highlight the mode you want and press
or key to select it.
or Nav keys on the WR20 Handset to go up/down in
+
jbkr
F
NavStation
47
