Installation
5
Installation
5.1
Requirements
5.1.1

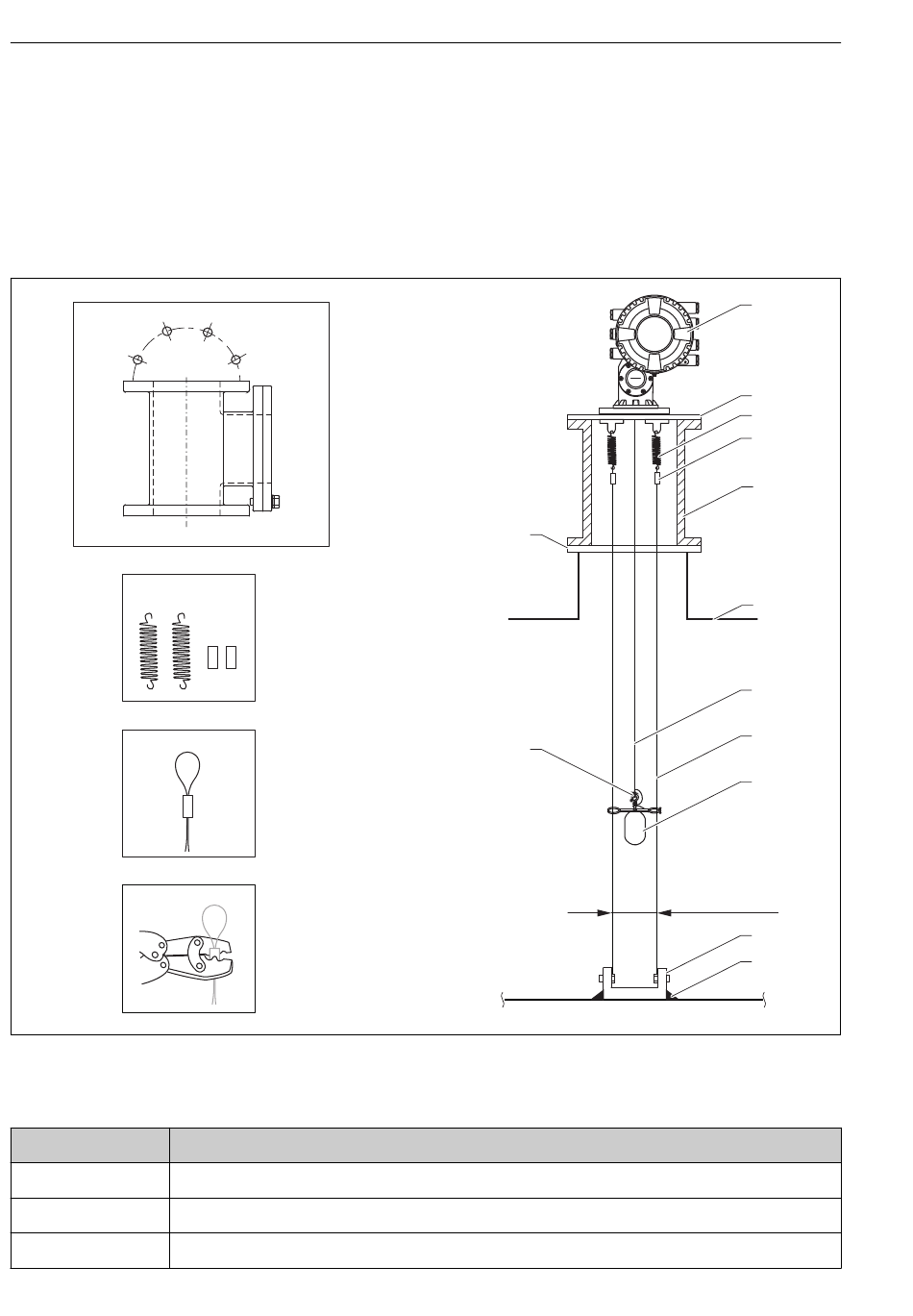

Mounting with guide wires
It is also possible to guide the displacer with guide wires to prevent swinging.
A
B
C
D
2
Guide wire; dimensions mm (in)
No.
A
Calibration chamber
B
Spring and sleeve
C
Guide wire sleeve
10
13
12
Description
Proservo NMS80
1
2
3
4
5
6
7
8
9
100 (3.94)
10
11
A0026819
