Commissioning
7.5.3 Configuration of a connected RTD
Submenu: Setup → Advanced setup → Input/output → Analog IP
Parameter
RTD type
RTD connection type
Input value
Minimum probe temperature
Maximum probe temperature
Probe position

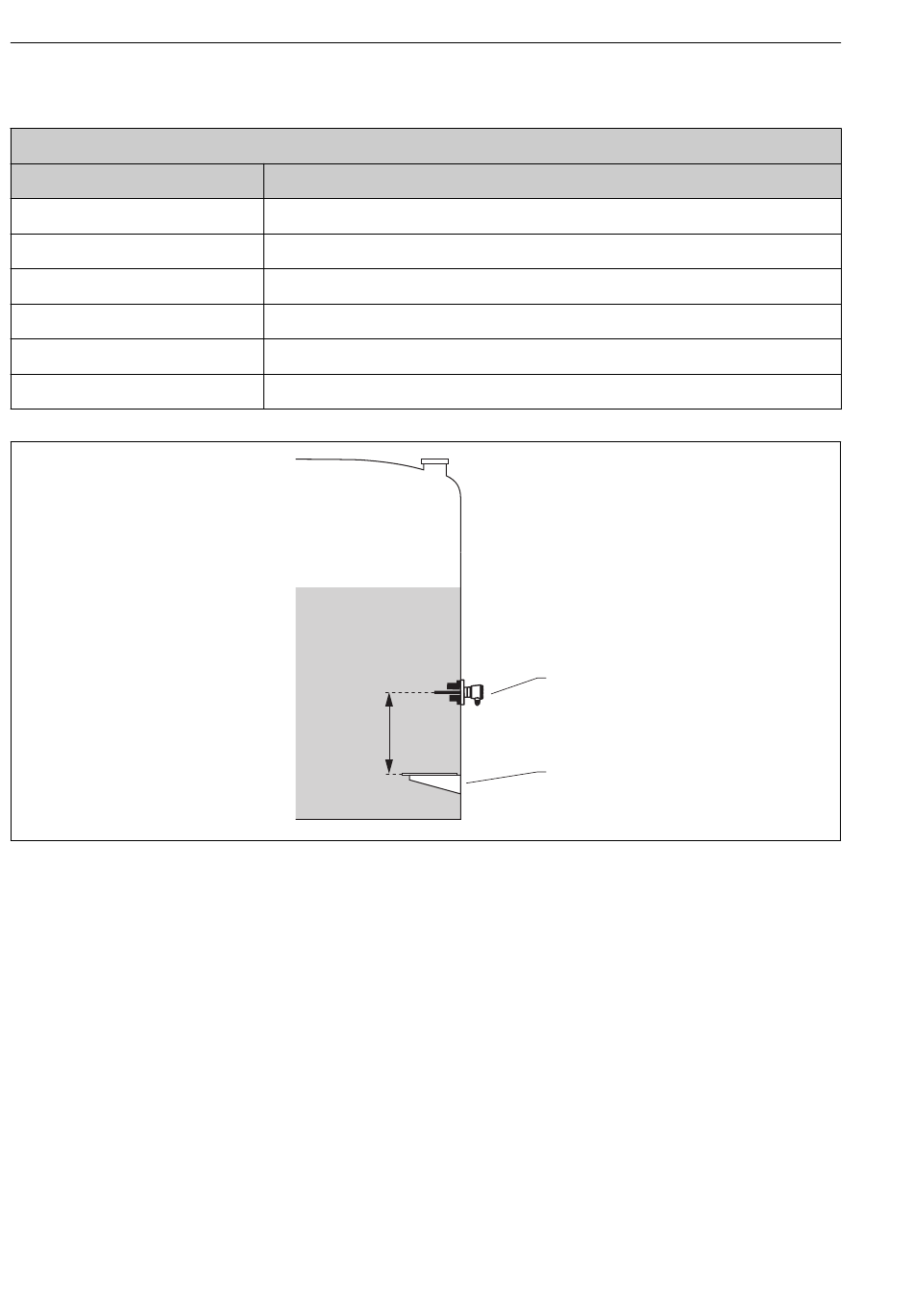

1 Datum plate
2 RTD
3 Probe position
54
Meaning / Action
Specify the type of the connected RTD.
Specify the type of connection of the RTD (2-, 3- or 4-wire).
Check whether the indicated value matches the actual temperature.
Specify the minimum approved temperature of the connected RTD.
Specify the maximum approved temperature of the connected RTD.
Enter the mounting position of the RTD (measured from the datum plate).
3
2
1
Proservo NMS80
