Endress+Hauser Proservo NMS80 Brief Operating Instructions page 20

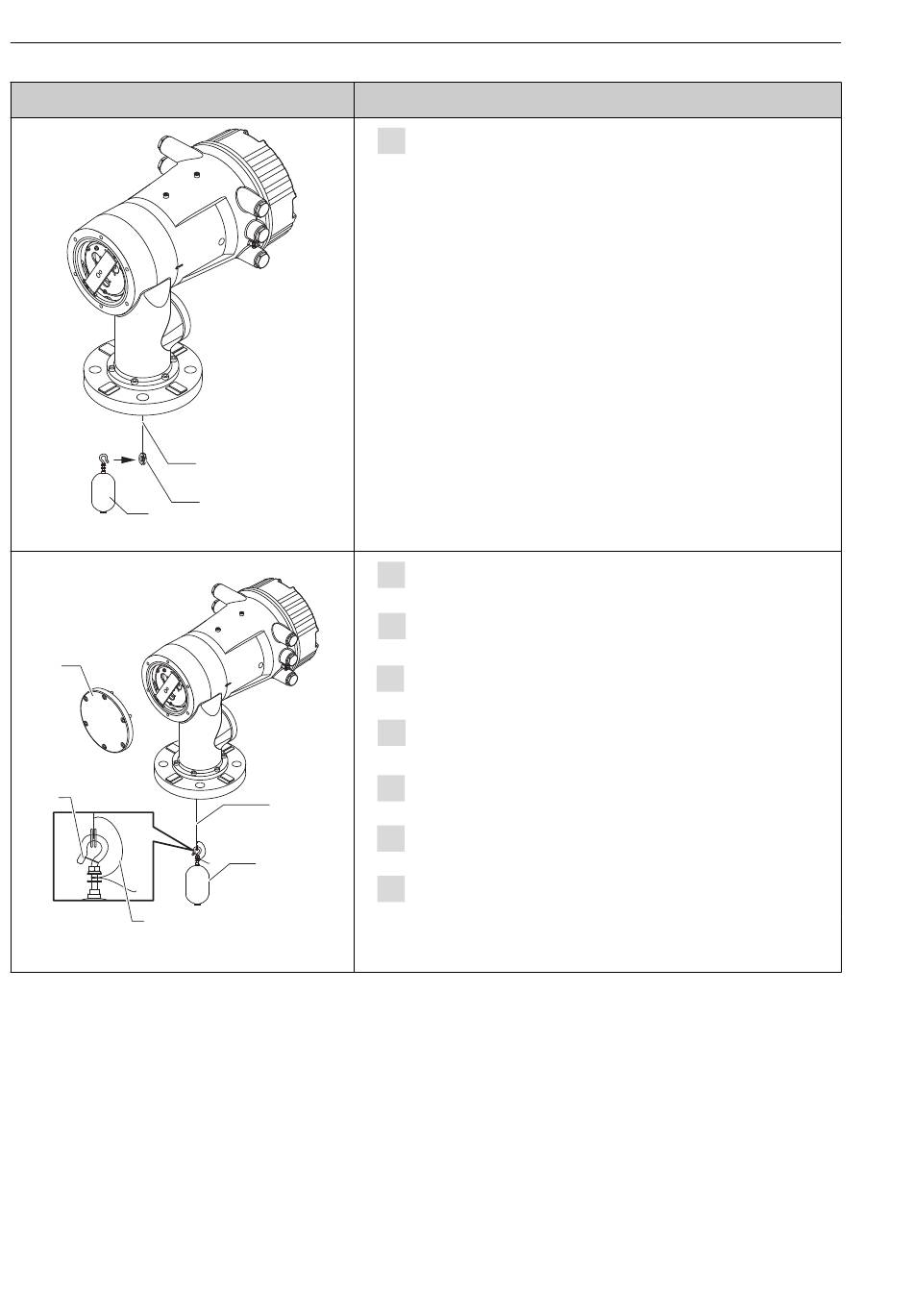

Installation
Figures
3
5
4
3
20

1
2
A0030110
1
2

A0030111
Hook the displacer [3] on the ring [2].
10.
• Be sure that the wire is wound correctly in the grooves.
• If not, remove the displacer and the wire drum, and repeat
step 7.
Turn on the power of NMS8x.
11.
Perform sensor calibration
12.
Secure the displacer [2] to the measuring wire [1] using the
13.
securing wire [4].
Install the ground wire [3] of the displacer (for details of
14.
displacer ground wire installation →  24).
Perform reference calibration.
15.
Turn off the power.
16.
Mount the wire drum cover [5].
17.
• For sensor calibration, →  47
• For reference calibration, →  49.
Proservo NMS80
Procedures
Endress+Hauser
