Installation
-90°

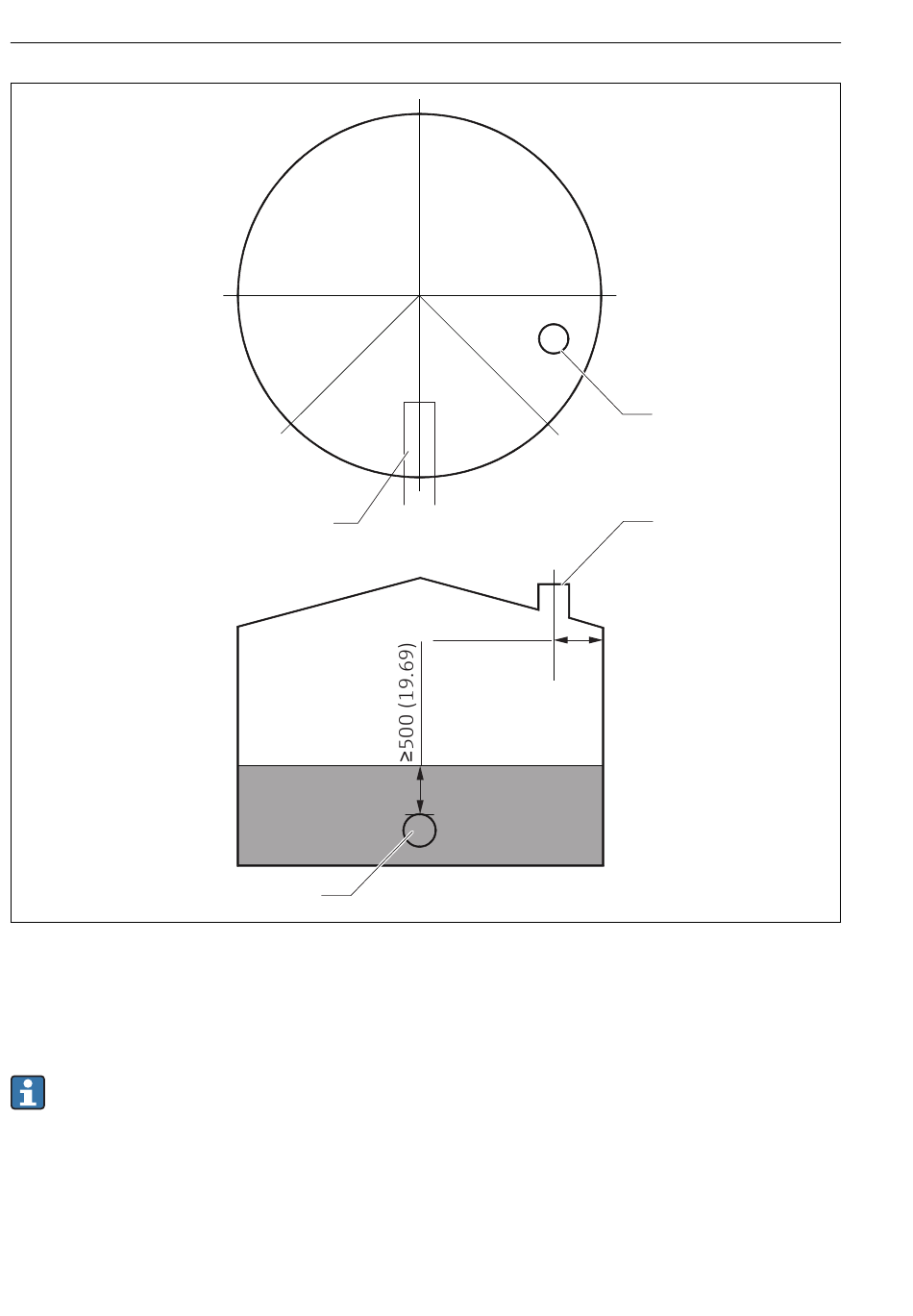

 5 Recommended position for mounting NMS8x and minimum measuring level; dimensions mm (in)
1 Inlet pipe
2 Tank nozzle
• Before pouring liquid into the tank, confirm that liquid flowing through the inlet of the
pipe will not contact the displacer directly.
• When discharging liquid out of the tank, ensure that the displacer will not get caught
in the liquid current and sucked into the outlet pipe.
14
-45°
0°
1
1
45°
≥500 (19.69)
Proservo NMS80
90°
2
2
