5.2.3 Installation for all-in-one method
In the case of a 50 mm (1.97 in) or 70 mm (2.76 in) diameter displacer, the device can be
delivered by all-in-one method.
6

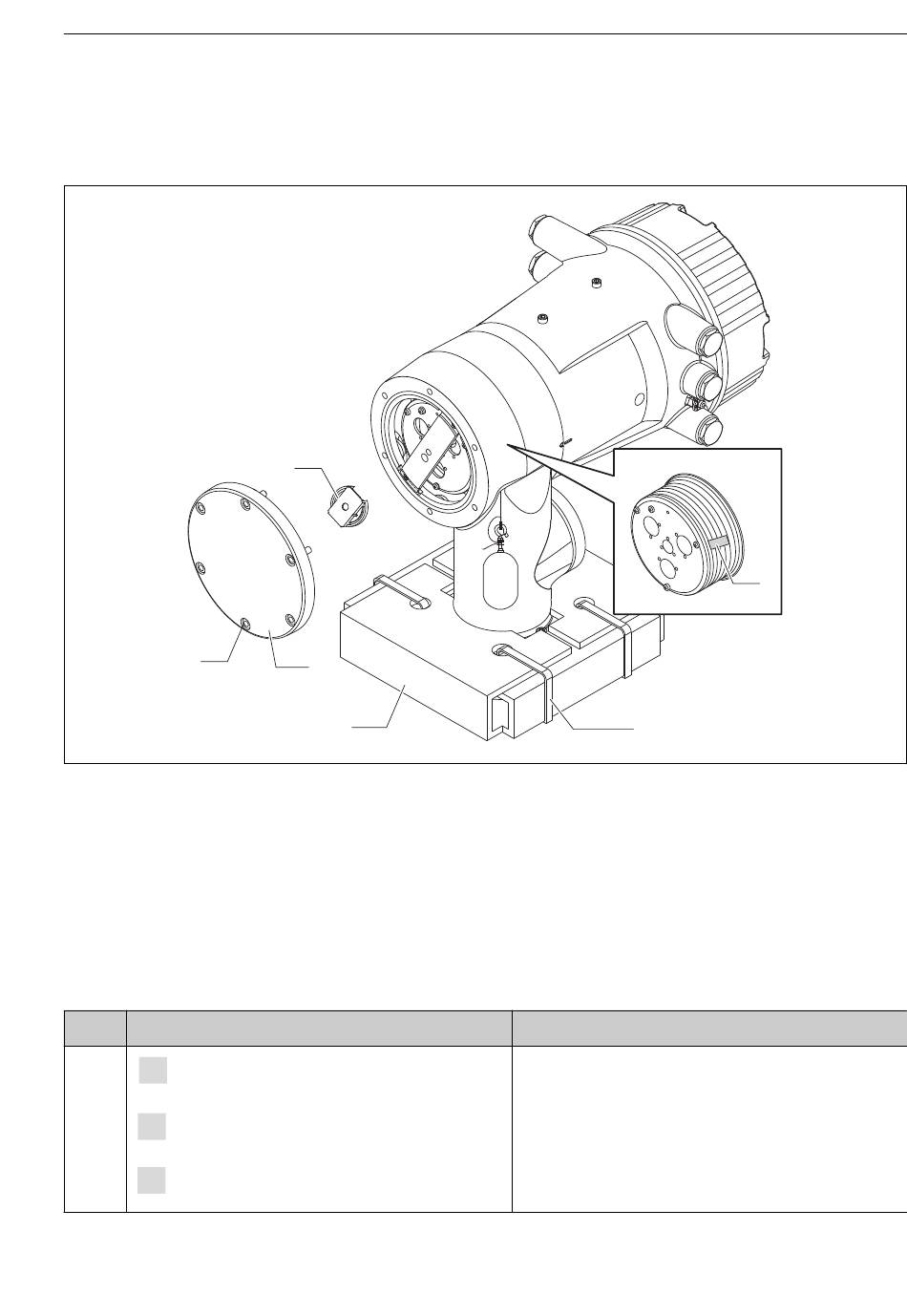

 7 Removing packing materials
1 Tape
2 Fixing band
3 Displacer holder
4 Wire drum stopper
5 Drum housing cover
6 Screws and bolts
Steps
Hold the gauge so that it stays horizontal
1.
against the flange.
Cut the fixing bands [2].
1
2.
Remove the displacer holder [3] and packing
3.
material of the displacer.
Endress+Hauser
4
5
3
Procedures
2
Notes
• Perform these steps before mounting NMS8x on
the nozzle.
• Do not tilt NMS8x after removing the displacer
holder.
Installation
1
A0030108
