Proservo NMS80
1.
1
2
3

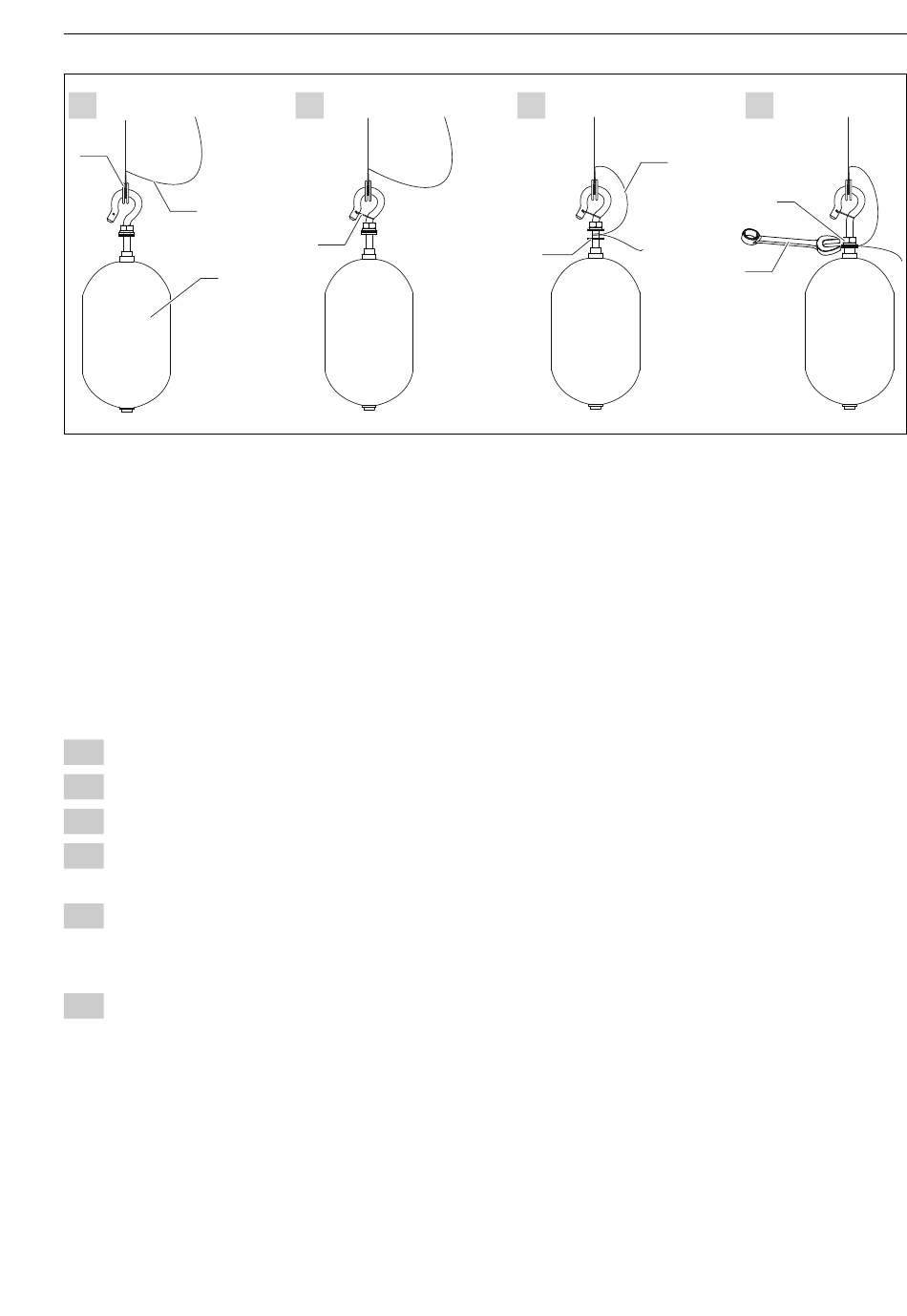

 8 Displacer installation
1 Wire ring
2 Ground wire
3 Displacer
4 Securing wire
5 Washer
6 Nut
7 Wrench
PTFE displacer installation
1. Remove the screw [1] using a flathead screwdriver.
2. Mount the displacer [4] on the PFA covered ring [2].
3. Remove the PFA cover approximately 10 mm (0.39 in) for conductivity.
4. Install the ground wire [6] onto the displacer from the wire insertion slot [3] until the
ground wire contacts to the wall of the screw hole [5].
5. Tighten the screw [1].
 Hold the ground wire with finger tips so that the wire does not come out from the
slot.
6. Lift the displacer using a screwdriver and confirm that the ground wire does not come
out from the slot.
This completes the PTFE displacer installation.
Endress+Hauser
2.
4
3.
2
5
Installation
4.
6
7
A0028694
