7.5.2 Configuration of the 4-20mA inputs
Submenu: Setup → Advanced setup → Input/output → Analog I/O
Parameter
Operating mode
Analog input source
Analog input 0% value
Analog input 100% value
Customer value
1) There is a Analog I/O submenu for each Analog I/O module of the device.

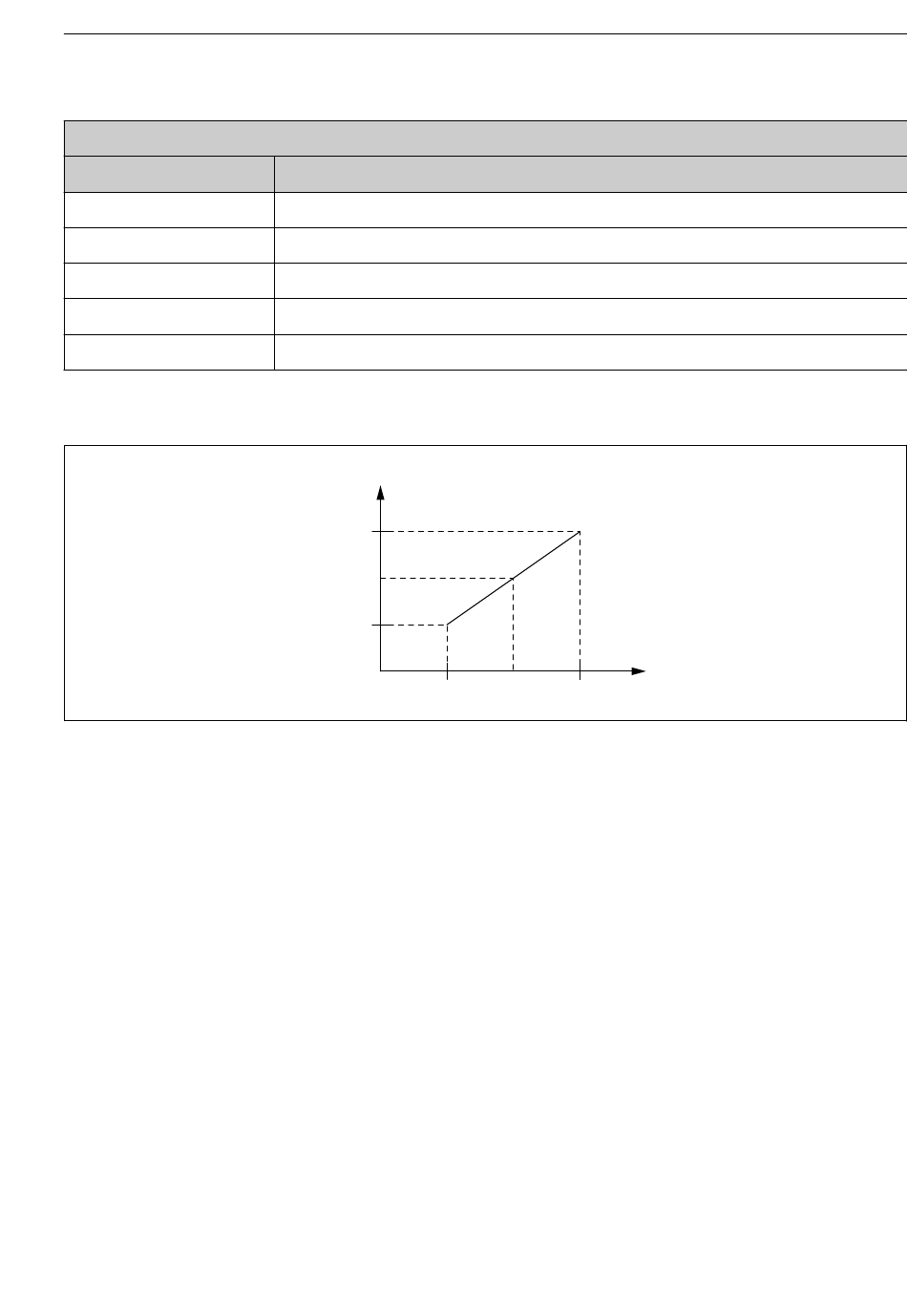

 28 Scaling of the 4-20mA input
A Analog input source
1 Analog input 0% value
2 Analog input 100% value
3 Input current
4 Customer value
Endress+Hauser
Meaning / Action
Select 4..20mA input or HART master+4..20mA input
Select which process variable is transmitted by the connected device.
Define which value of the process variable corresponds to an input current of 4 mA.
Define which value of the process variable corresponds to an input current of 20 mA.
Check whether the indicated value matches the actual value of the process variable.
I [mA]
20mA
3
4mA
1
1)
4 A
2
Commissioning
