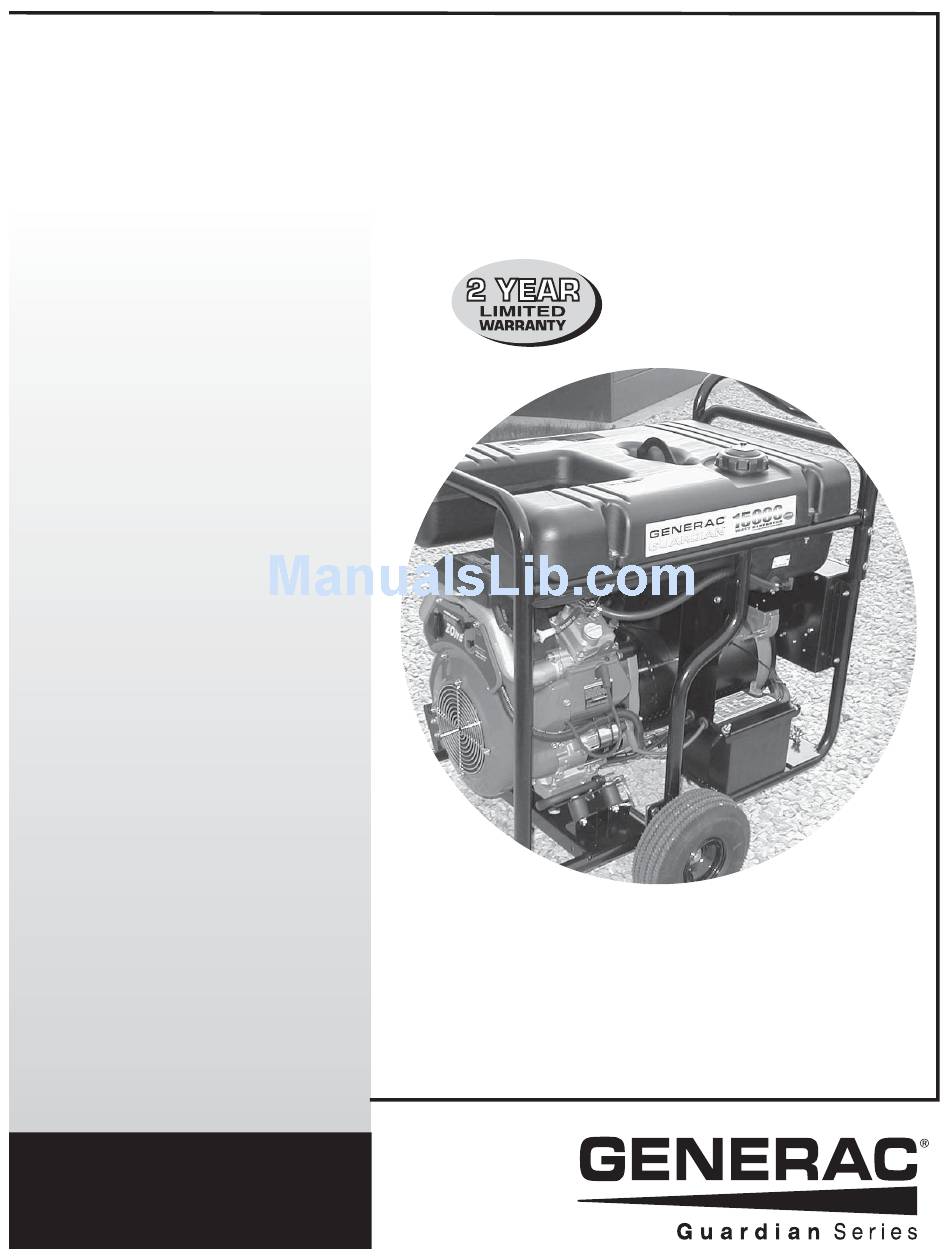

- Page 1 Ultra Source Portable Generator 12,500 Watt Owner’s Manual • SAFETY • ASSEMBLY • OPERATION • TROUBLESHOOTING • WARRANTY COMMERCIAL • INDUSTRIAL • RESIDENTIAL MODEL: 004451-1 AUTHORIZED DEALER SUPPORT: www.generac.com 1-888-436-3722...
-
Page 2: Table Of Contents
Table of Contents Portable Generator System Introduction ............. 1 Section 3 – Maintenance ........13 Maintenance Schedule ..........13 Read this Manual Thouroughly ....... 1 Product Specifications ..........13 Safety Rules ............2 3.2.1 Generator Specifications ........13 Standards Index .............3 3.2.2 Engine Specifications ........13 General Recommendations ...........13 Section 1 –... -
Page 3: Introduction
Thank you for purchasing this model of the GP Series portable Using a generator indoors CAN KILL YOU IN MINUTES. generator by Generac Power Systems, Inc. This model is a Exhaust contains carbon monoxide, a poison gas you compact, high performance, air-cooled, engine driven generator cannot see or smell. -
Page 4: Safety Rules
IMPORTANT SAFETY INSTRUCTIONS Portable Generator System SAVE THESE INSTRUCTIONS – The manufacturer suggests that these rules for safe operation be copied and posted near the unit's installation site. Safety should be stressed to all operators and potential operators of this equipment. Study these SAFETY RULES carefully before installing, operating ... -
Page 5: Standards Index
IMPORTANT SAFETY INSTRUCTIONS Portable Generator System • When working on this equipment, remain alert at all times. Never FIRE HAZARDS work on the equipment when physically or mentally fatigued. • Inspect the generator regularly, and contact the nearest •... -
Page 6: Section 1 - General Information
Section 1 – General Information Portable Generator System 1.1 UNPACKING 1.2 ASSEMBLY The generator requires some assembly prior to using it. If problems • Set the palleted carton on a rigid flat surface. arise when assembling the generator, please call the Generator •... -
Page 7: Emissions Information
Section 1 – General Information Portable Generator System Figure 2 - Handle Assembly 1.3 EMISSIONS INFORMATIN Figure 3 - Battery Connections The Environmental Protection Agency (EPA) and the California Air Resource Board (CARB) require that this generator comply with Negative Positive exhaust emission standards. -
Page 8: Section 2 - Operation
Section 2 – Operation Portable Generator System The Emissions Compliance Period referred to on the Emissions 13. Idle Control Switch – The idle control runs the engine at Compliance Label indicates the number of operating hours for normal (high) speeds when there is an electrical load present which the engine has been shown to meet Federal and California and runs the engine at idle (low) speeds when a load is not emission requirements. -
Page 9: Cord Sets And Connection Plugs
Section 2 – Operation Portable Generator System Figure 6 - Engine Control Panel 2.2.2 120 VAC, 20 AMP, GFCI RECEPTACLE This unit is equipped with a ground fault circuit interrupter (GFCI) (Figure 8). This device meets applicable federal, state and local codes. -
Page 10: 120 Vac, 30 Amp Receptacle
Section 2 – Operation Portable Generator System 2.2.3 120 VAC, 30 AMP RECEPTACLE 2.2.5 12 VOLT DC, 10 AMP RECEPTACLE Use a NEMA L5-30 plug with this receptacle. Connect a 3-wire This receptacle allows you to recharge a 12 Volt automotive or cord set rated for 125 Volts AC at 30 Amps (or greater) to the plug utility style storage battery with the battery charge cables provided. -
Page 11: How To Use The Generator
Section 2 – Operation Portable Generator System 2.3 HOW TO USE THE GENERATOR 2.3.3 GENERATOR LOCATION If you have any problems operating your generator, please call the generator helpline at 1-800-333-1322. Exhaust heat/gases can ignite combustibles, structures 2.3.1 GROUNDING THE GENERATOR or damage fuel tank causing a fire. -
Page 12: Wattage Reference Guide
Section 2 – Operation Portable Generator System 2.5 WATTAGE REFERENCE GUIDE 2.6 BEFORE STARTING THE GENERATOR Prior to operating the generator, engine oil and gasoline will need Device ................Running Watts to be added, as follows: *Air Conditioner (12,000 Btu) ............1700 *Air Conditioner (24,000 Btu) ............3800 *Air Conditioner (40,000 Btu) ............6000 2.6.1 ADDING ENGINE OIL... -
Page 13: To Start The Engine
Section 2 – Operation Portable Generator System • Use regular UNLEADED gasoline with the generator engine. Do • Locate the Idle Control ON/OFF switch on the control panel and not use premium gasoline. Do not mix oil with gasoline. set it to the “OFF” position. •... -
Page 14: Automatic Idle Control
Section 3 — Maintenance Portable Generator System 2.12 CHARGING A BATTERY IMPORTANT: Do not overload the generator. Also, do not overload individual panel receptacles. These outlets are protected against overload with push-to-reset-type circuit breakers. If amperage DANGER rating of any circuit breaker is exceeded, that breaker opens and ... -
Page 15: Section 3 - Maintenance
To receive full value from the warranty, the operator must maintain the generator as Model .................. GPS 12500 instructed in this manual. Model # .................004451-1 Some adjustments will need to be made periodically to properly Rated Max. Power ..............12.5 kW maintain the generator. -
Page 16: To Clean The Generator
Section 3 — Maintenance Portable Generator System Use the following instructions to change the oil while the engine is still warm: • Clean area around oil drain hose and plug. Never insert any object or tool through the air cooling slots, even if the engine is not running. -
Page 17: Clean Spark Arrestor Screen
Section 3 — Maintenance Portable Generator System To clean or replace paper air filter: Figure 21 - Spark Arrestor • Remove air cleaner cover; then remove foam pre-filter (service if necessary) and remove paper filter. • Clean paper filter by tapping it gently on a solid surface. If the filter is too dirty, replace it with a new one. -
Page 18: Storage
Section 3 — Maintenance Portable Generator System Figure 22 - Valve Clearance Adjustment • Remove all gasoline from the fuel tank. DANGER Drain fuel into approved container outdoors, away from open flame. Be sure engine is cool. Do not smoke around gasoline. -
Page 19: Section 4 - Troubleshooting
Section 4 — Troubleshooting Portable Generator System 4.1 TROUBLESHOOTING GUIDE PROBLEM CAUSE CORRECTION Engine is running, but no AC output 1. Circuit breaker is open. 1. Reset circuit breaker. is available. 2. Poor connection or defective cord set. 2. Check and repair. 3. -
Page 20: Section 5 - Notes
Section 5 — Notes... - Page 21 Section 5 — Notes...
-
Page 22: Section 6 - Warranty
Warranty), which is provided to you by Generac pursuant to California and federal law. See also the "Generac Limited Warranties for Generac Power Systems, Inc.," which is enclosed herewith on a separate sheet, also provided to you by Generac. Note that this warranty shall not apply to any incidental, consequential or indirect damages caused by defects in materials or workmanship or any delay in repair or replace- ment of the defective part(s). -
Page 23: Emission Control System Warranty
(1) Any warranted part that is not scheduled for replacement as required maintenance in the Owner's Manual shall be warranted for the ECS Warranty Period. If any such part fails during the ECS Warranty Period, it shall be repaired or replaced by Generac according to Subsection (4) below. Any such part repaired or replaced under the ECS Warranty shall be warranted for the remainder of the ECS Warranty Period. -
Page 24: Consumer Application
“12,500 WATT AND 15,000 WATT PORTABLE GENERATORS” For a period of two years from the date of original sale, Generac Power Systems, Inc. (Generac) warrants its Guardian generator will be free from defects in materials and workmanship for the items and period set forth below. Generac will, at its option, repair or replace any part which, upon examination, inspection and testing by Generac or a Generac Authorized Warranty Service Dealer, is found to be defective.
