4 Software

Key screens

Key screens

Overview tab

Log off, (Log on)
Prepare
End Shift
Roche Diagnostics
A-82
The screen representations shown in this chapter and throughout this manual are for illus-
trative purposes only. The screens do not necessarily show valid data.
The main screen is divided into tabs. These tabs represent distinct work areas.
f
The Overview tab is your main work area when performing the daily routine tasks.
o
Use the Workplace to gain information on orders and the corresponding results.
You can also start the lot handling functions from this tab.
o
Use the Utilities tab to perform tasks that are not normally part of the routine
analysis workflow. Typically, these would be administration and maintenance
tasks.
The following sections describe the key screens of these tabs and point out the main
tasks you can perform on them.

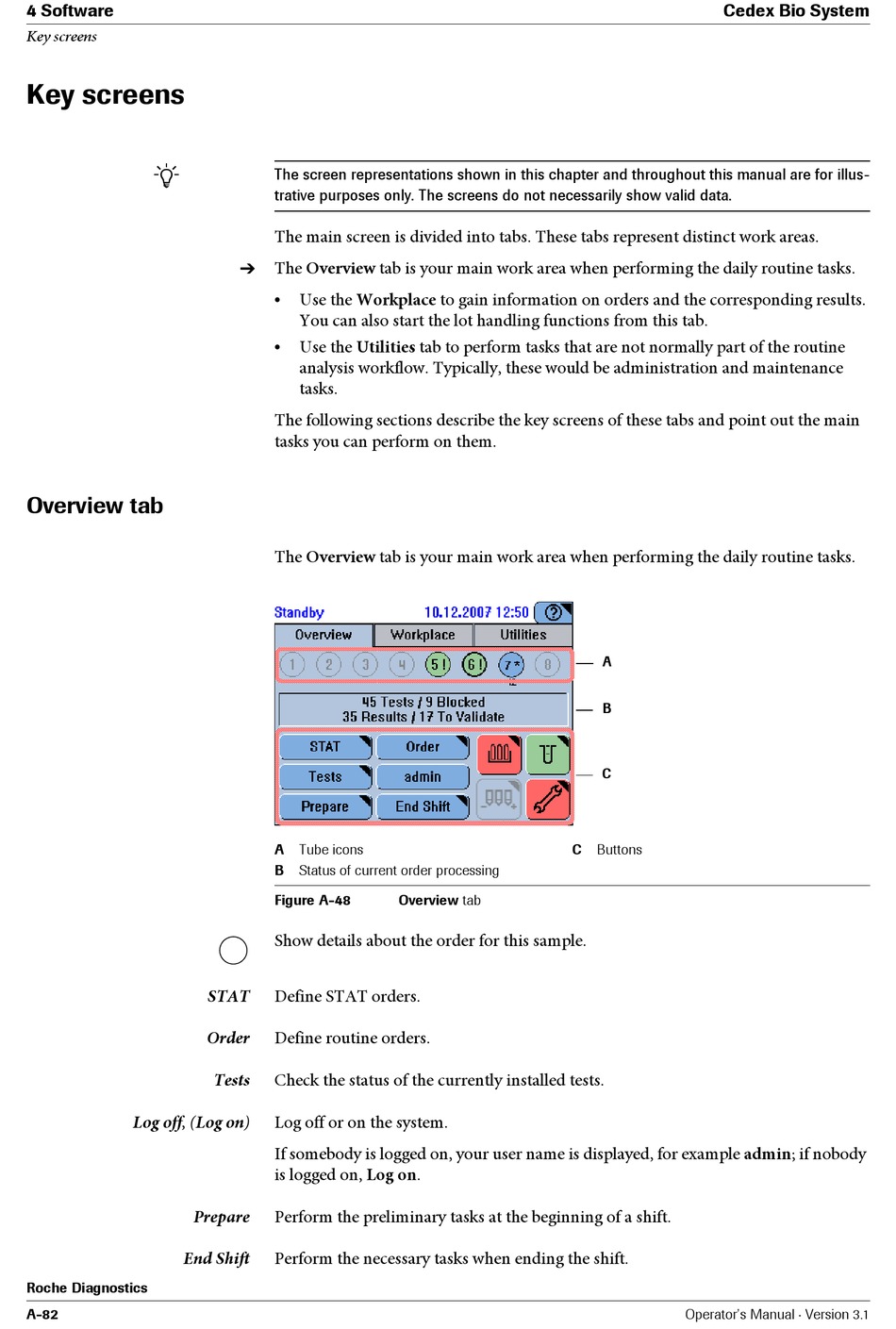

The Overview tab is your main work area when performing the daily routine tasks.
A Tube icons
B Status of current order processing
Figure A-48
Show details about the order for this sample.
STAT Define STAT orders.
Order Define routine orders.
Tests Check the status of the currently installed tests.
Log off or on the system.
If somebody is logged on, your user name is displayed, for example admin; if nobody
is logged on, Log on.
Perform the preliminary tasks at the beginning of a shift.
Perform the necessary tasks when ending the shift.
Overview tab
Cedex Bio System
A
B
C
C Buttons
Operator's Manual · Version 3.1
