Quick overview

Machine control – Operating elements
4 Quick overview
4.1 Machine control – Operating elements
Item Symbol
1
2
3
4
5
6
7
A B C D Context-dependent push-button
8
10
Description 0
System push-button
To display and configure the system settings > see 5.4.4 chapter.
Machine display
Graphical machine display showing all machine functions, menus and parameters with
their values > see 4.3 chapter.
USB push-button
To use and configure the USB interface > see 5.5 chapter.
USB interface for offline data transfer
Connection capability for a USB flash memory (industrial USB flash memory recom-
mended).
Click wheel welding power
• ---------- Setting the welding power > see 5.1 chapter
• ---------- Setting various parameters values depending on the preselection.
It is possible to adjust settings when the backlight is activated.
Click wheel correction of arc
• ---------- Setting the correction of arc length > see 6.1.1.3 chapter
• ---------- Setting the arc dynamics > see 6.1.1.4 chapter
It is possible to adjust settings when the backlight is activated.
Interface (Xbutton)
Welding access based on user-defined rights to protect against unauthorised
use > see 5.4.2 chapter.
> see 5.3 chapter

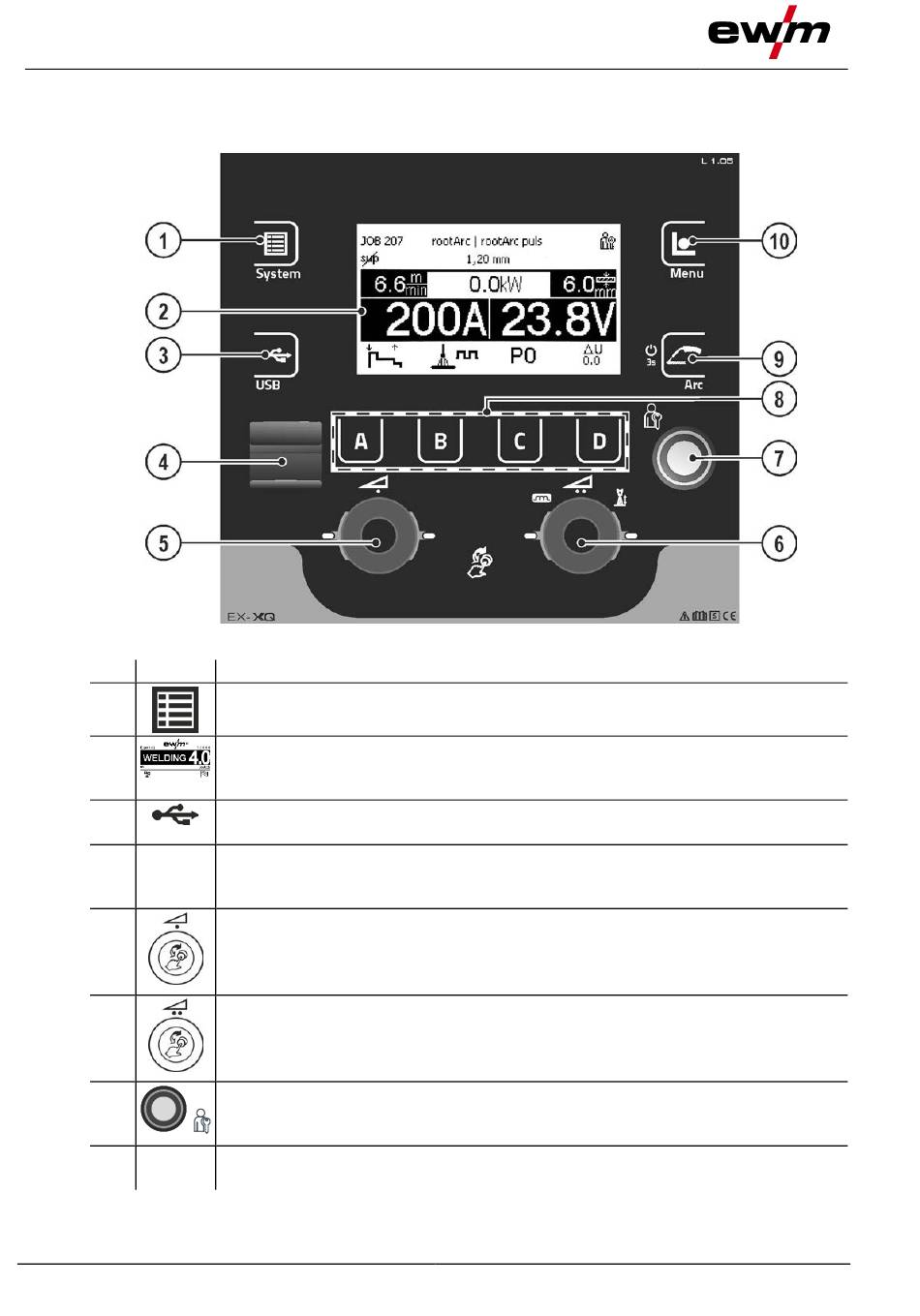

Figure 4-1
099-00L105-EW501
07.06.2019
