Machine description – quick overview
CB-007-1
4 Machine description – quick overview
4.1 CB-007-1
4.1.1

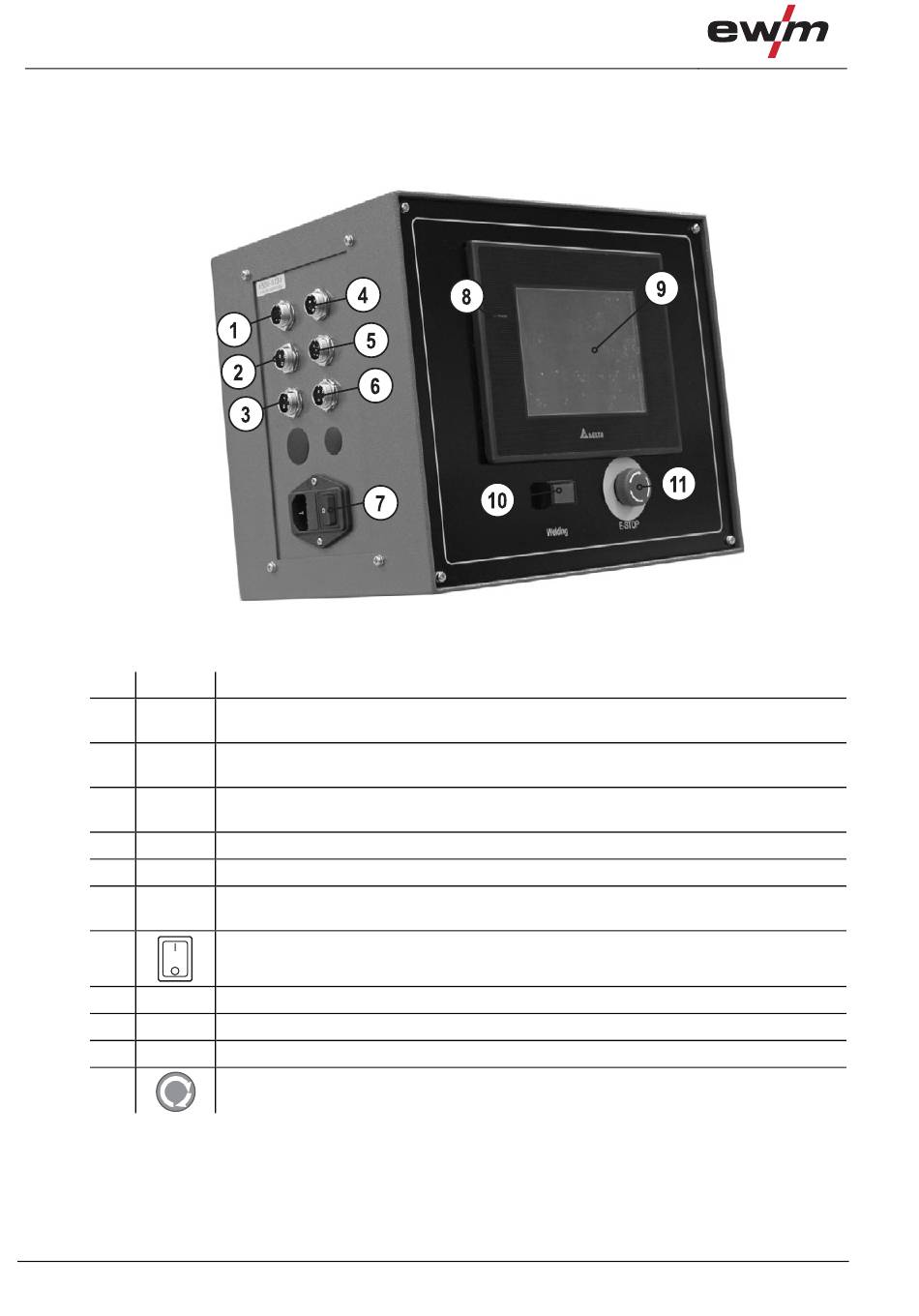

Front view

Item Symbol Description
1
2
3
4
5
6
7
8
9
10
11
10
0
7-pole connection socket, motor
Geared motor/encoder connection
3-pole connection socket
Foot-operated switch connection (start/stop)
4-pole connection socket, wire feed unit
Start signal, wire feed unit
5-pole connection socket, welding machine start/stop
6-pole connection socket, solenoid valve
4-pole connection socket
Option
Main switch, machine on/off
Ready for operation signal light
Touchpanel
Key button, welding start
Emergency stop switch
Figure 4-1
099-010268-EW501
28.03.2011
