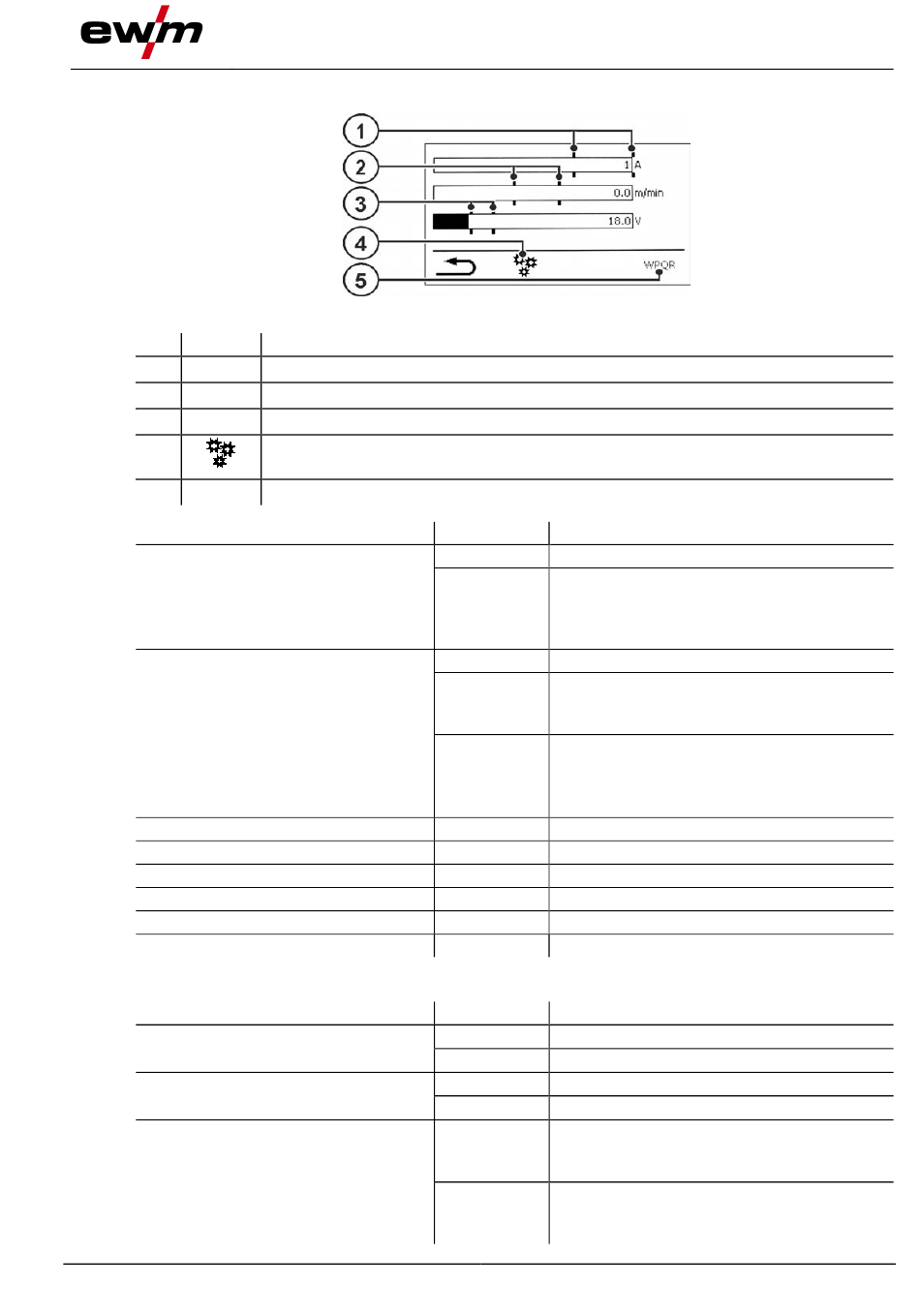

Welding monitoring

Item Symbol
1
2
3
4
5 WPQR
Menu item / parameter
Automatic
Errors and warnings
Voltage tolerance
Current tolerance
Tolerance response time
Wire feeder tolerance
Maximum permissible motor current
Tolerance response time
5.6.9

JOB display setting

Menu item/parameter
Text for material:
Text for gas:
Absolute value set point:
099-00L105-EW501
07.06.2019
Description 0
Current tolerance
WF tolerance
Voltage tolerance
Advanced settings
Display and setting of advanced system parameters
WPQR welding data assistant
Value
No
Yes
Off
Warnings
Error
0-100 %
0-100 %
0.00-20.0 s
0-100 %
0.0-5.0 A
0.00-20.0 s
Value
Standard
Alternative
Standard
Alternative
Yes
No
Operating the machine control
Welding task administration (Menu)
Figure 5-28
Comment
The welding monitoring window opens auto-
matically from the main screen after a welding
start. A rotary knob actuation automatically
switches back to the main window.
Exceeding a tolerance limit for the duration of
the tolerance response time triggers warning
12.
Exceeding a tolerance limit for the duration of
the tolerance response time triggers error 61.
Please note: Error leads to immediate stop of
the ongoing welding!
For voltage and current tolerance
For WF tolerance and motor current
Comment
Ignition current, secondary current and end
current are set and displayed as absolute va-
lues
Ignition current, secondary current and end
current are defined and displayed as a percen-
tage of program A (ex works)
51
