Main Screen - EWM Expert XQ 2.0 Operating Instructions Manual

Quick overview
Machine display
4.3.2

Main screen

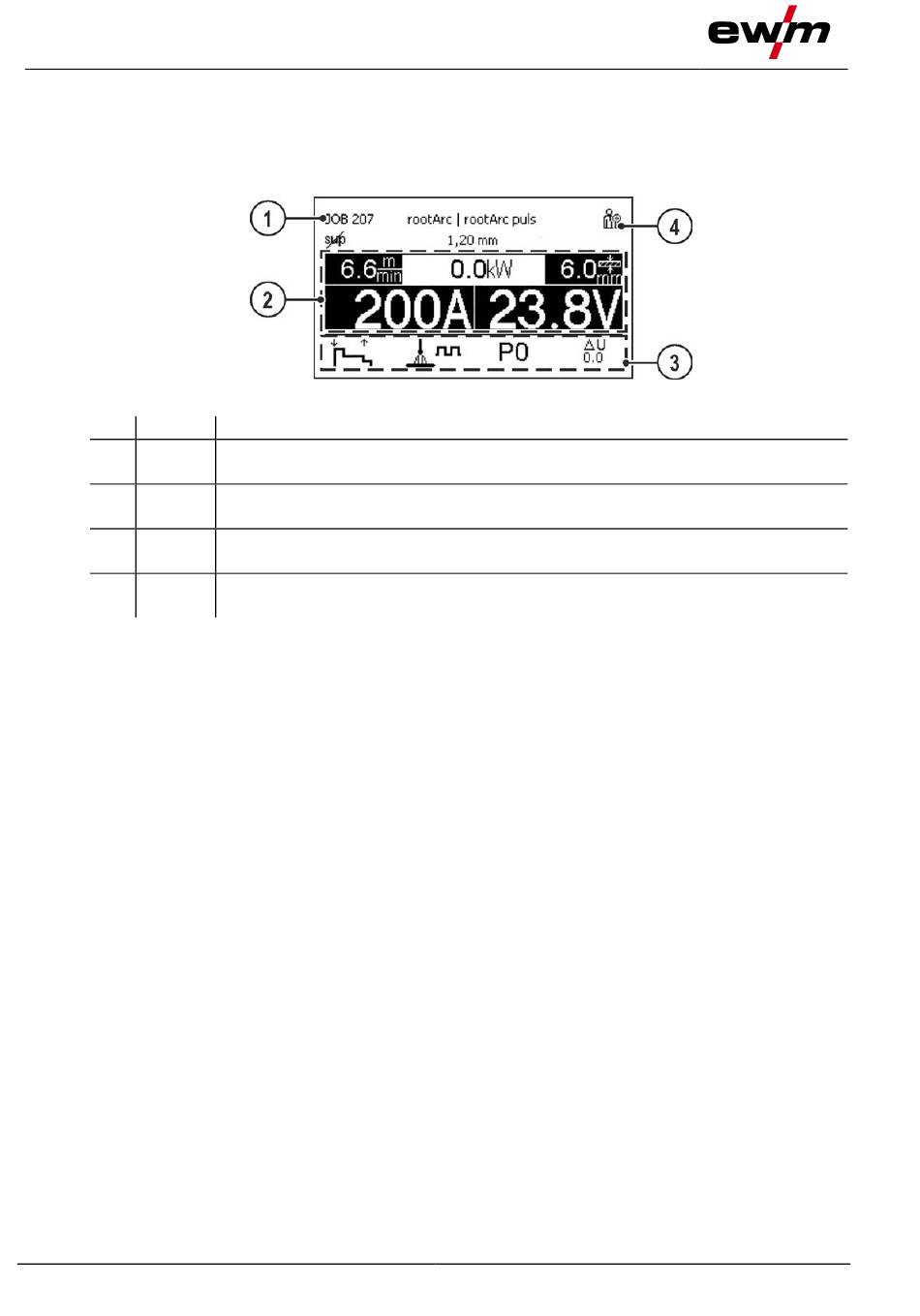

The main screen shows all the information relevant for the welding process before, while and after it is
carried out. In addition, it shows status information on the machine state. The assignment of the context-
dependent push-buttons is also shown on the main screen.
The user can choose between different main screens > see 4.3.2.1 chapter.
Item Symbol
1
2
3
4
By pressing push-button A for a prolonged time (on the operating mode main screen) it is possible to di-
rectly switch to the program sequence.
14
Description 0
Information on the welding task selected
JOB number, process etc.
Display area for welding data
Welding current, welding voltage, wire feed speed, material thickness etc.
Display area for process parameters
Operating mode, voltage correction, program, welding method etc.
Display area for system status
Network status, error status etc. > see 4.2 chapter
