Basic settings for operation with two wire feeders (P10)

The setting is available/required in the following cases only:
• the control is integrated in the wire feeder
• the control is integrated in the power source (compact design)
Menu item/parameter
DVX (single)
DVX-Unit 1 (master)
DVX-Unit 2 (slave)
With single unit operation (P10 = 0) a second wire feeder may not be connected!
• Remove any connections to the second wire feeder
With double unit operation (P10 = 1 or 2) both wire feeders have to be connected and be set up for
this operation at the control with different configurations.
• Configure one wire feeder as master (P10 = 1)
• Configure the other wire feeder as slave (P10 = 2)
Access control
If one of the wire feeders in the welding system is equipped with an access control key switch, it has to be
configured as master (P10 = 1). With double unit operation, if more than one wire feeder is equipped with
an access control key switch, either one can be configured as master. The wire feeder configured as
master is active as soon as the welding machine has been switching on. There are no other functional dif-
ferences between the wire feeders.
4.3.3.2

Change system language

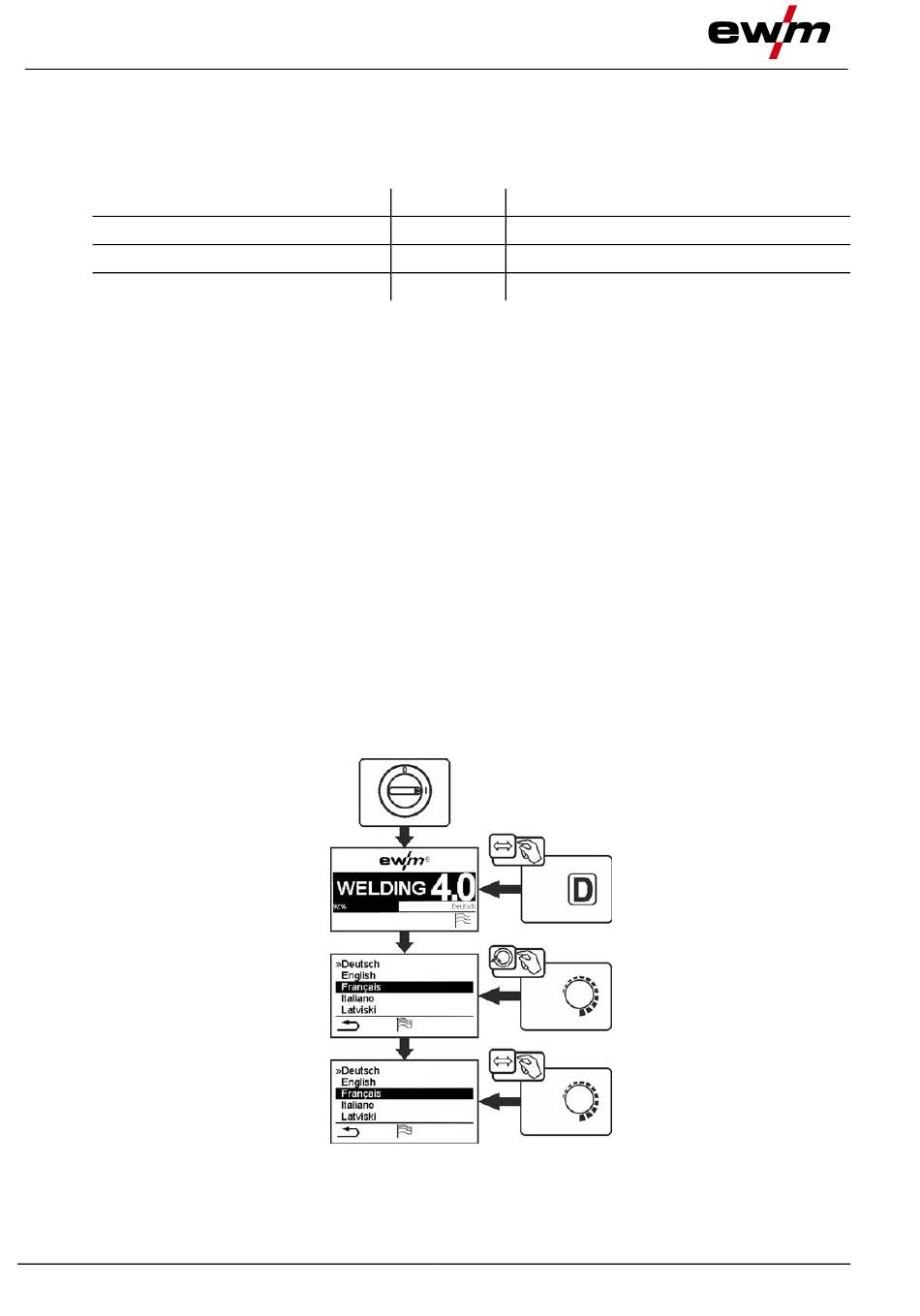

During the start process the user can select or change the system language at the machine control.
• Switch the machine off and on again.
• Press the context-dependent push-button [D] during the start phase (the word WELDING 4.0 is dis-
played).
• Select the required language by turning the control button.
• Confirm the selected language by pressing the control button (the user can exit the menu by pressing
the context-dependent push-button [A] without making any changes).
16
Value Comment
0
1
2
Figure 4-5
099-00L105-EW501
07.06.2019
