6.2

TIG welding

6.2.1

Operating modes (functional sequences)

6.2.1.1

Explanation of signs and functions

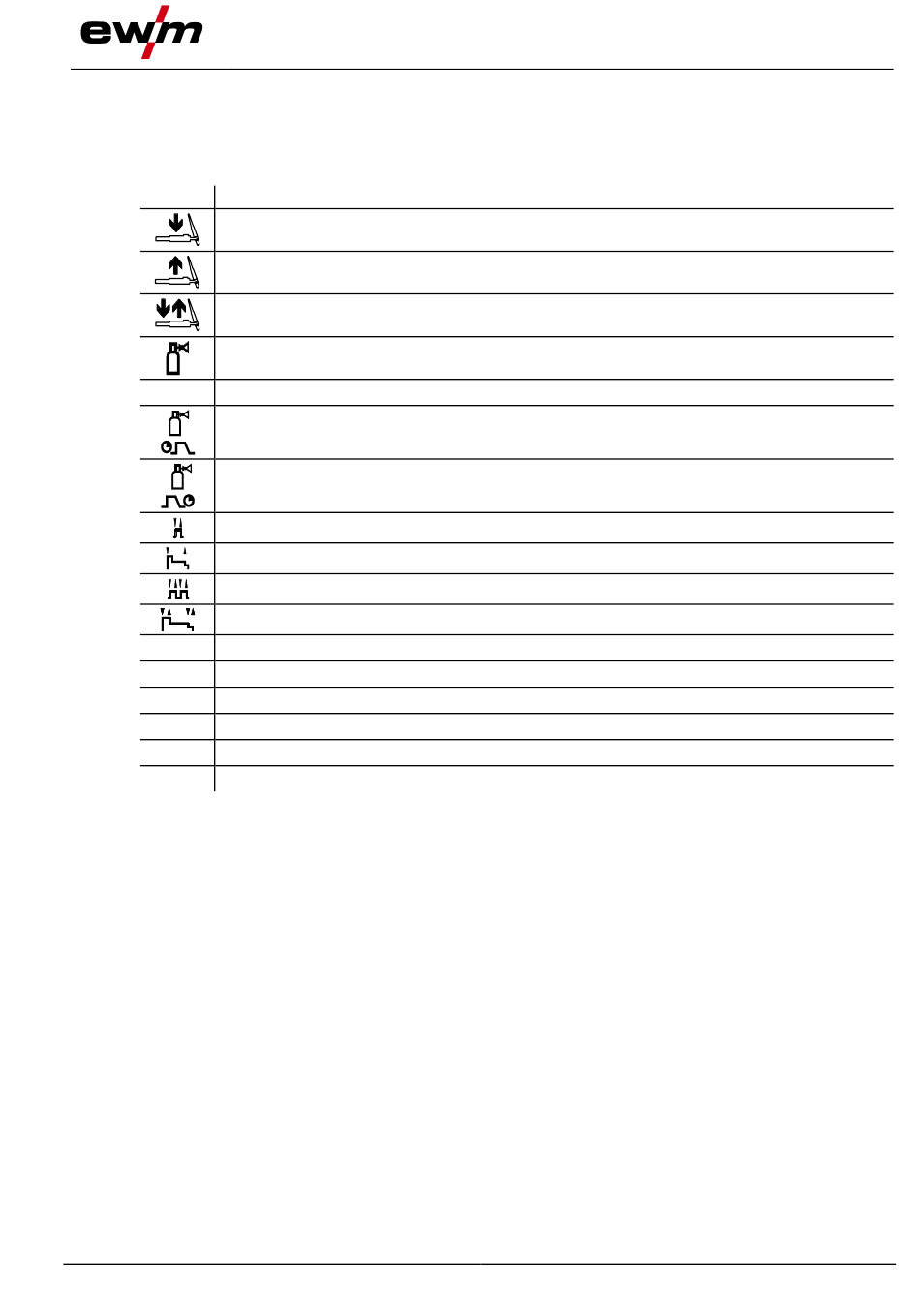

Symbol Meaning
Press torch trigger
Release torch trigger
Tap torch trigger (press briefly and release)
Shielding gas flowing
Welding output
I
Gas pre-flows
Gas post-flows
Non-latched
Special, non-latched
Latched
Special, latched
Time
t
Ignition program
P
START
Main program
P
A
Reduced main program
P
B
End program
P
END
Slope duration from PSTART to PA
tS1
6.2.1.2

Automatic cut-out

Once the fault periods have elapsed, the automatic cut-out stops the welding process when it has been
triggered by one of two states:
• During ignition
5 s after the start of the welding process, no welding current flows (ignition error).
• During welding
The arc is interrupted for more than 5 s (arc interruption).
