SET COMMUNICATION:

This section define the fundamental communication parameters of two buses, BACnet and PROFIBUS.

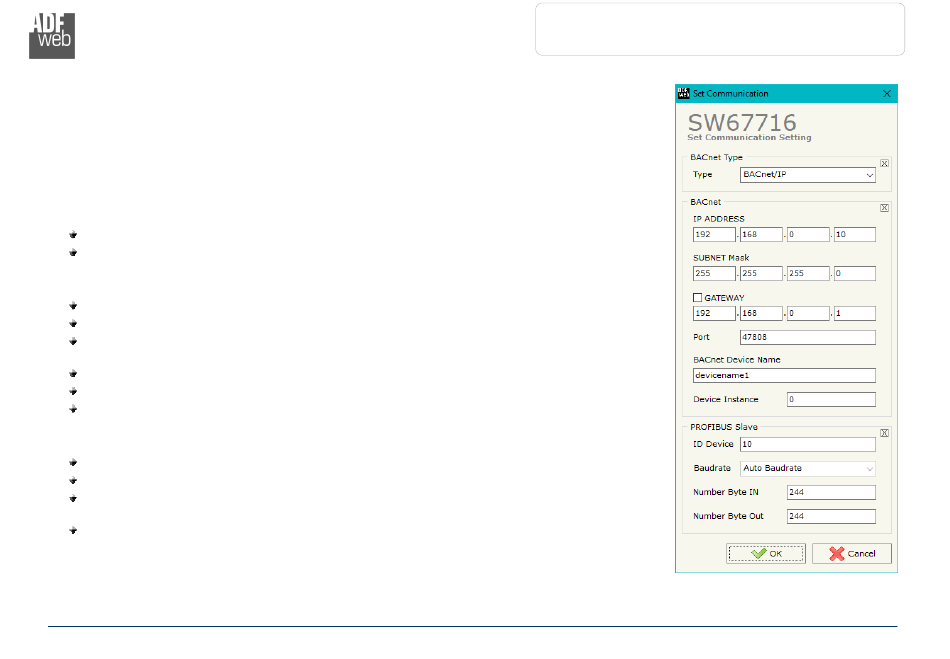

By Pressing the "Set Communication" button from the main window for SW67716 (Fig. 2) the window
"Set Communication" appears (Fig. 3).
The window is divided in three sections, one for selecting the type of BACnet (in relation to the device
used), one for the BACnet parameters and the other for the PROFIBUS parameters.
In the section "BACnet Type" is possible to select the type of BACnet to use from:
BACnet/IP (uses Ethernet);
BACnet MS/TP (uses RS485).
The means of the fields for "BACnet" are:
In the field "IP ADDRESS" the IP address of BACnet/IP side of the converter is defined;
In the field "SUBNET Mask" the SubNet Mask of the converter is defined;
In the field "GATEWAY" the default gateway of the net is defined. This feature can be enabled
or disabled pressing the Check Box field. This feature is used for going out of the net;
In the field "Port" the port used for BACnet communication is defined;
In the field "BACnet Device
In the field "Device Identifier" the identifier of the BACnet side of the converter is defined.
The means of the fields for the "PROFIBUS Slave" section are:
In the field "ID Device" the ID for the PROFIBUS side is defined.
In the field "Baudrate" the baudrate is defined (fixed to 'Auto Baudrate');
In the field "Number Byte
244 bytes);
In the field "Number Byte
244 bytes).
ADFweb.com S.r.l.
Name" the name of the BACnet side of the converter is defined;
IN" the number of input bytes of PROFIBUS side is defined (up to
OUT" the number of output bytes of PROFIBUS side is defined (up to
