Industrial Electronic Devices

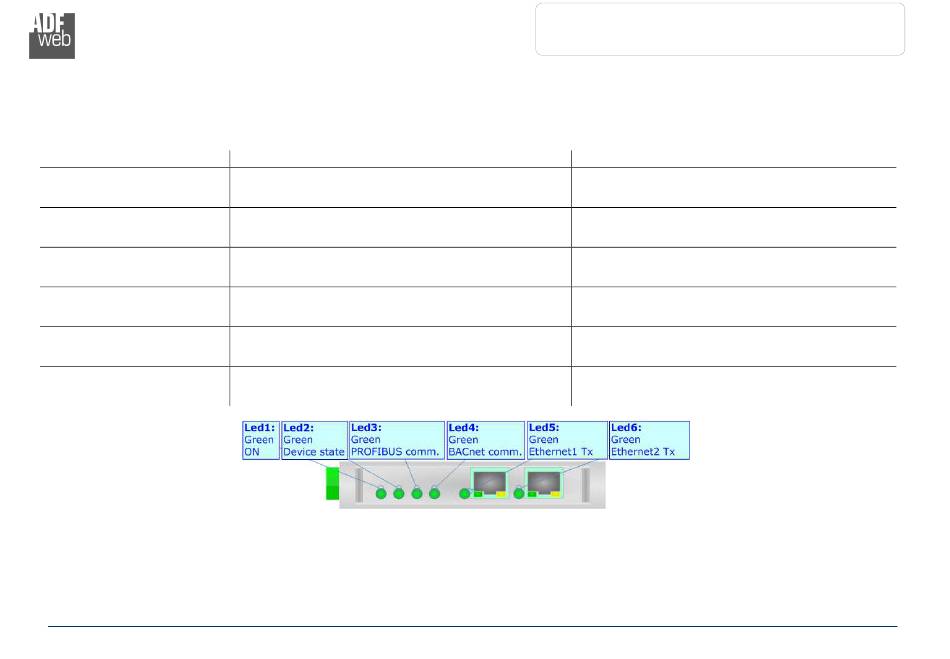

LEDS:
The device has got six LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: ON [supply voltage ]
(green)
2: PROFIBUS comm. (green)
3: Device state (green)
4: BACnet comm. (green)
5: Ethernet1 Tx (only for
BACnet/IP version)
6: Ethernet2 Tx
ADFweb.com S.r.l.
Normal Mode
ON: Device powered
OFF: Device not powered
Blinks quickly when PROFIBUS communication is
working
Blinks slowly (~1Hz)
Blinks quickly when a BACnet response is received
Blinks when Ethernet frames are transmitted
Blinks when Ethernet frames are transmitted
User Manual BACnet Master / PROFIBUS Slave
Document code: MN67716_ENG
Revision 1.001
Boot Mode
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Page 10 of 28
