7/30/2019
Download This Reference Manual
Basys MX3 PDF
(https://reference.digilentinc.com/_media/reference/microprocessor/basys-mx3/basys_mx3_rm.pdf)

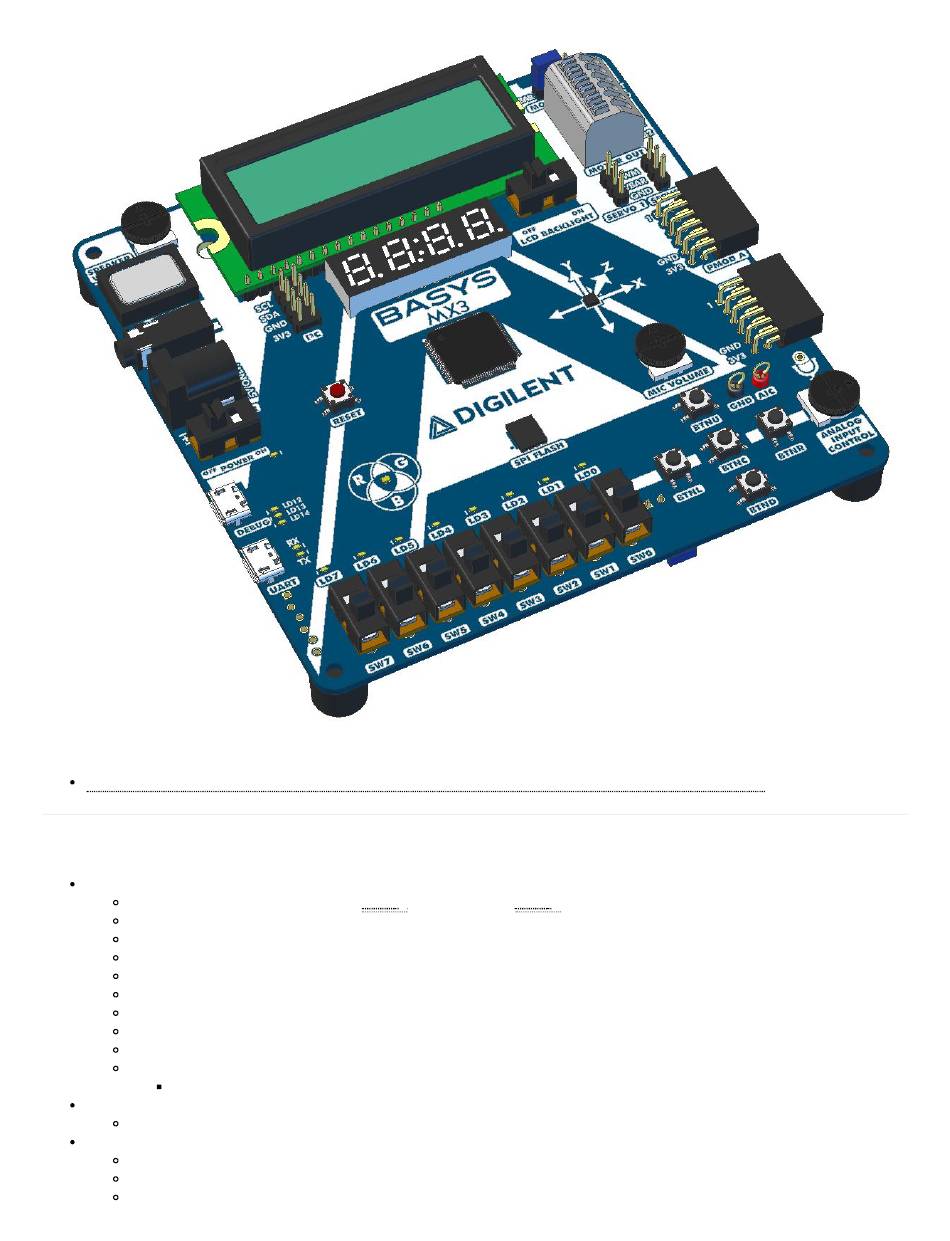

Features
PIC32MX370F512L Microcontroller
MIPS32® M4K® core runs up to 96 MHz () using onboard 8 MHz () oscillator
512 KB of Program Flash Memory, 12 KB of Boot Flash Memory
128 KB of SRAM
Four Direct Memory Access (DMA) Modules
Two SPI, Two I²C, and Five UART serial interfaces
Parallel Master Port (PMP) for graphics interfaces
Five 16-bit Timers/Counters
Five Input Capture Modules
Five Output Compare Modules
85 I/O pins
54 pins support Peripheral Pin Select (PPS) for function remapping
Power
Powered from USB or any 5V external power source
USB and Debugging
USB-UART Bridge
USB programmer/debugger
30-pin Analog Discovery 2 connector
https://reference.digilentinc.com/reference/microprocessor/basys-mx3/reference-manual?_ga=2.68739409.1349070004.1564406803-1961480359.1...
Basys MX3 Reference Manual [Reference.Digilentinc]
5/52
Advertisement
Table of Contents
Need help?
Do you have a question about the Basys MX3 and is the answer not in the manual?
Questions and answers
I m not able to use the basys mx3 with recent version of mplabx (6.x). The debugging tool does not show in the list. U of Sherbrooke
If the Digilent Basys MX3 board does not appear in the list of debugging tools in MPLAB X version 6.x, you can try the following steps:
1. Ensure the board is connected via the DEBUG USB connector.
2. Verify that the correct device (PIC32MX370F512L) is selected during project setup.
3. Make sure all required drivers are installed for the Basys MX3 board.
4. If the tool still does not appear, manually select it under the Licensed Debugger group.
5. If unavailable, consider using MPLAB X IPE to program/erase the microcontroller, though it does not support debugging.
If the problem persists, the version of MPLAB X may not fully support the Basys MX3 debugger integration. In this case, try using a different MPLAB X version or contact support for updates.
