7/30/2019

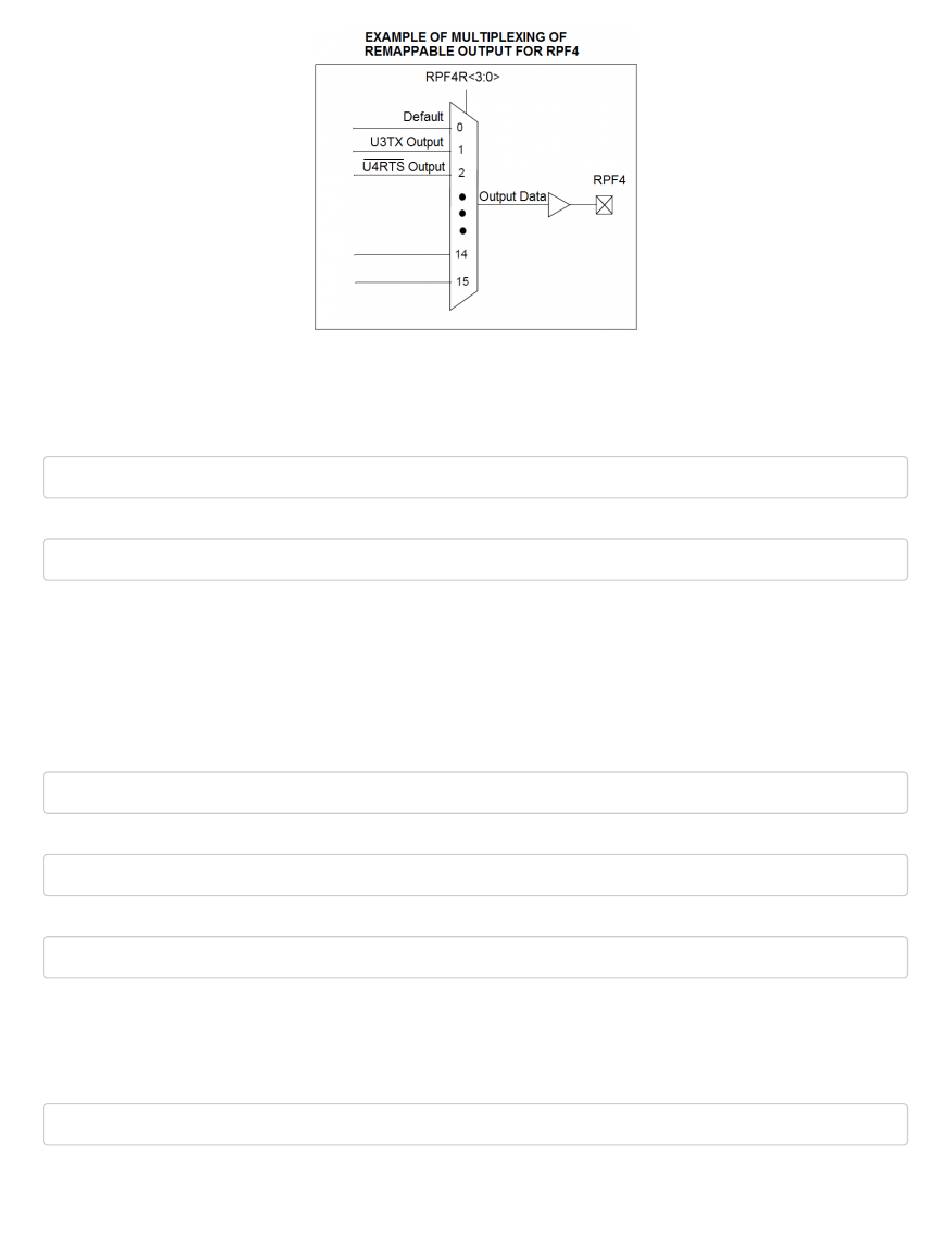

Input and output remapping is illustrated in the SPI2 section, where the SPI2 pins are mapped over the pins of PMOD A connector.
1.5. CPU Clock Source
The PIC32 microcontroller supports numerous clock source options for the main processor operating clock. The Basys MX3 uses an 8MHz
external crystal for use with the XT oscillator option. Oscillator options are selected via the configuration settings specified using the
#pragma config
statement. Use
#pragma config POSCMOD=XT
to select the XT option.
Using the internal system clock phase-locked loop (PLL), it is possible to select numerous multiples or divisions of the 8MHz oscillator to
produce CPU operating frequencies up to 80MHz. The clock circuit PLL provides an input divider, multiplier, and output divider. The
external clock frequency (8MHz) is first divided by the input divider value selected. This is multiplied by the selected multiplier value and
then finally divided by the selected output divider. The result is the system clock, SYSCLK, frequency. The SYSCLK frequency is used by
the CPU, DMA controller, interrupt controller, and pre-fetch cache.
The values controlling the operating frequency are specified using the PIC32MX370 configuration variables. These are set using the
#pragma config statement. Use
#pragma config FPLLIDIV
to set the input divider,
#pragma config FPLLMUL
to set the multiplication factor and
#pragma config FPLLODIV
to set the output divider. Refer to the PIC32MX3XX/4XX Family Data Sheet and the PIC32MX Family Reference Manual, Section
Oscillators, for information on how to choose the correct values, as not all combinations of multiplication and division factors will work.
In addition to configuring the SYSCLK frequency, the peripheral bus clock, PBCLK, frequency is also configurable. The peripheral bus
clock is used for most peripheral devices, and in particular is the clock used by the timers, and serial controllers (UART, SPI, I2C). The
PBLCK frequency is a division of the SYSCLK frequency selected using
#pragma config FPBDIV
The PBCLK divider can be set to divide by 1, 2, 4, or 8.
The following example will set up the Basys MX3 for operation with a SYSCLK frequency of 80MHz and a PBCLK frequency of 80MHz.
