Note that RC1(SPI2_SI) and RC4 (SPI2_SO) need to be remapped to perform SDO2 and SDI2 functions. Also, note that the naming of the
signals is reversed, as SPI2_SI and SPI2_SO are named from slave perspective, while SDO2 and SDI2 are named from the microcontroller
perspective.
Table 11.1. SPI connectivity.
Pmod A pin Function
JA1 SPI2_SS
JA2 SPI2_SI
JA3 SPI2_SO
JA4 SPI2_SCK
Communication over the SPI2 interface is implemented in the SPIJA library of the Basys MX3 library pack.

12. Flash Memory

The Basys MX3 comes with 4 MB () of onboard flash memory. The part used is the Spansion S25FL132 and is an SPI memory. More
information about the SPI interface is found in the Serial Peripheral Interface section.

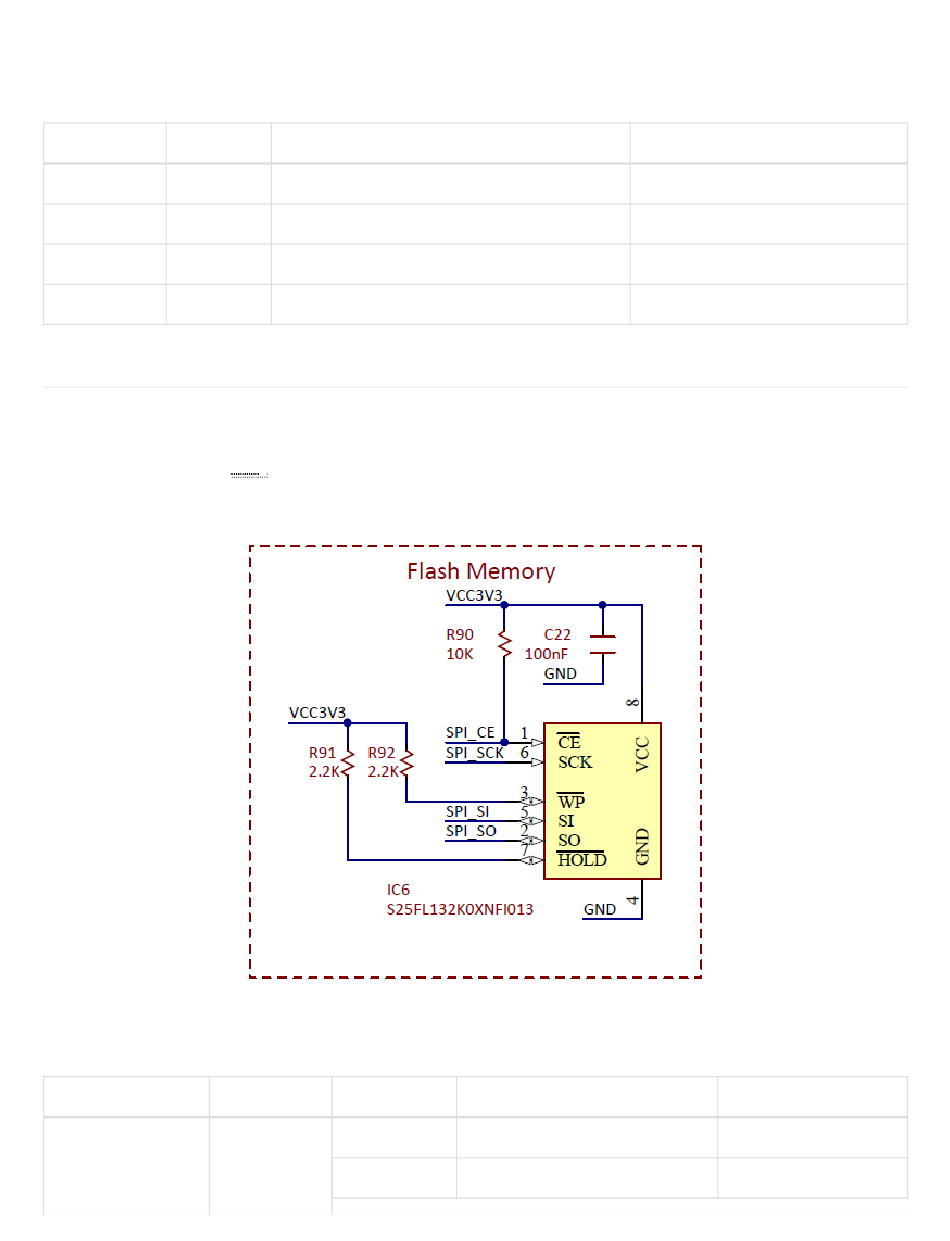

Figure 12.1 depicts the way the Flash memory is controlled by digital signals.
It contains 1024 sectors of 4 KB, making the total capacity 4MB. The following table, shown in Table 12.1 extracted from the S25FL132K
datasheet, shows the main memory address map.
Table 12.1. S25FL132K Main Memory Address Map.
Sector Size (kbyte)
4
https://reference.digilentinc.com/reference/microprocessor/basys-mx3/reference-manual?_ga=2.68739409.1349070004.1564406803-1961480359....
Basys MX3 Reference Manual [Reference.Digilentinc]
PIC32 Pin
RPC2/RC2
RPC1/RC1
RPC4/CTED7/RC4
AN16/C1IND/RPG6/SCK2/PMA5/RG6
Sector Count Sector Range
1024 SA0
:
Needed Mapping for SPI2
RPC1R = 0x06; // SDO2 – RC1
SDI2R = 0x0A; // SDI2 – RC4
Address Range (Byte Address)
000000h-000FFFh
:
Notes
Sector Starting Address
-
