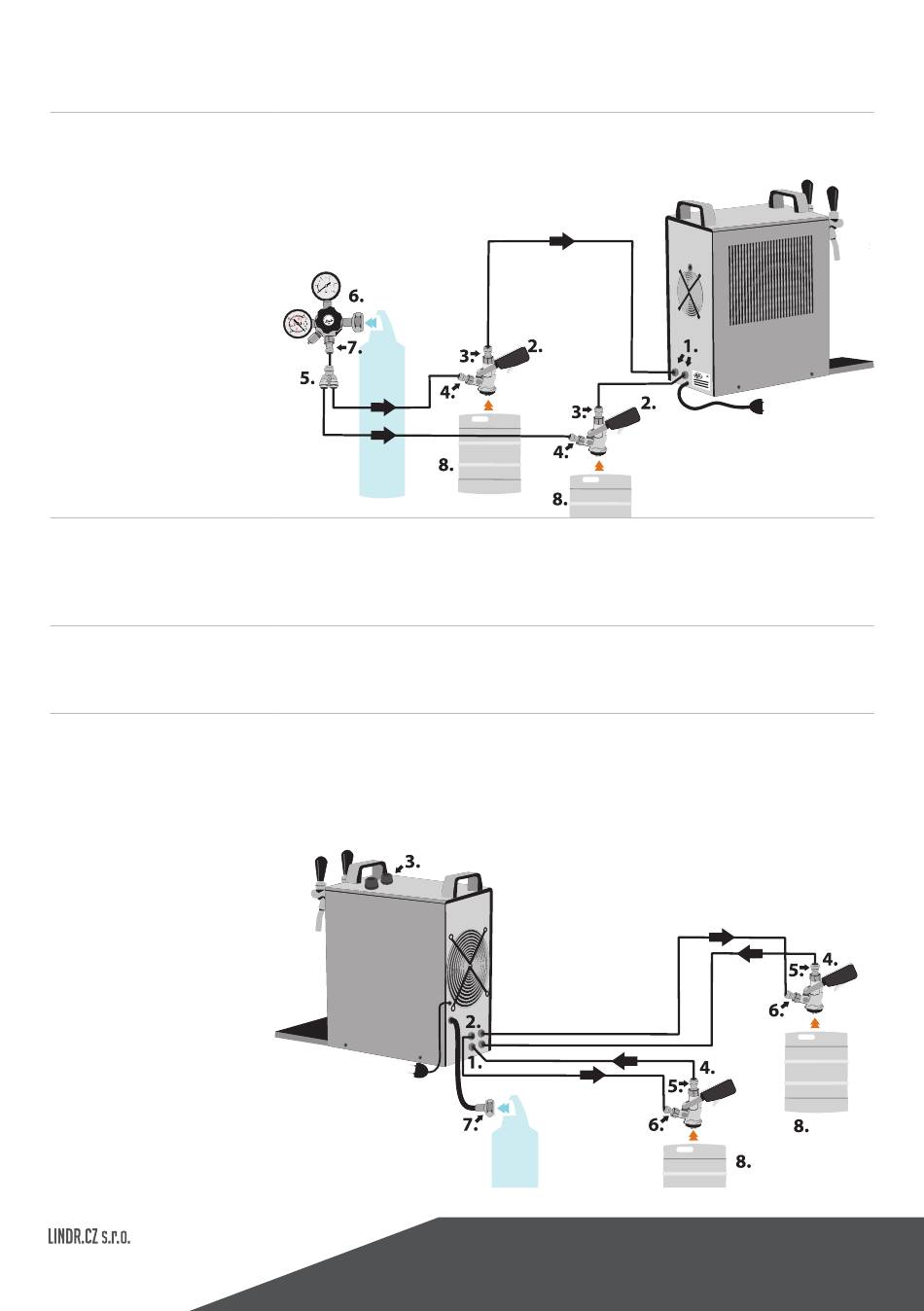

Connection D: using a machine with two dispensing taps together with a C02 bottle
1. Beverage inlet
2. Keg coupler (S-type,
A-type, M-type)
3. Plastic fitting
F 5/8x9.5 mm
4. Plastic fitting
F 5/8x8 mm
5. Plastic fitting
F 5/8x8 mm
6. Pressure reducer
CO2
7. Plastic fitting
F 7/16x8 mm
8. Beverage
By compressor PUMA 1 HP a 1/2HP, compressor LEONARDO 1HP, compressor AIRCRAFT
Connection E: KONTAKT 155/R for use to pressurize the traditional CO2 bottle (or mixed gas of CO2 and N2 -
1. Beverage inlet
2. CO2 outlet
3. Pressure Control
4. Keg coupler (S-type,
A-type, M-type)
5. Plastic fitting
F 5/8x9.5 mm
6. Plastic fitting
F 5/8x8 mm
7. High pressure hose
with a sleeve nut
W21.8 for the
cylinder with thread
G3/4 is needed to
use the adapter for
K155/R
8. Beverge
COOLING AND DISPENSING SYSTEMS
Other options of pressurizing:
1HP or with N2 bottle and C02.
reduction)(for machines with two dispensing taps)
