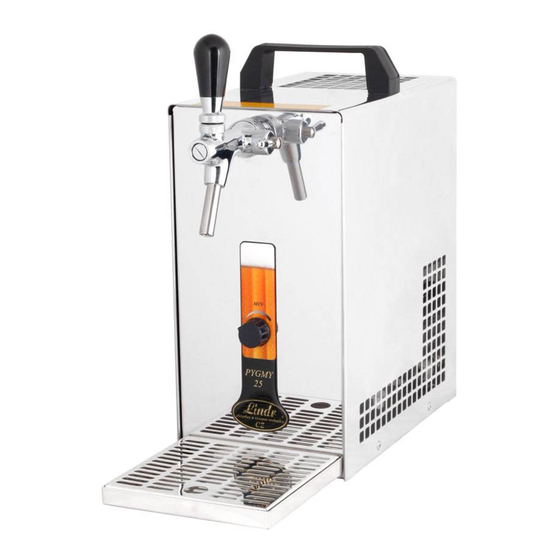

LINDR PYGMY 20 Instructions For Use Manual
Flow type contact cooler
Hide thumbs
Also See for PYGMY 20:
- Instructions for use manual (9 pages) ,
- Instruction manual (40 pages) ,
- Instruction manual (20 pages)
Subscribe to Our Youtube Channel
Related Manuals for LINDR PYGMY 20
Summary of Contents for LINDR PYGMY 20

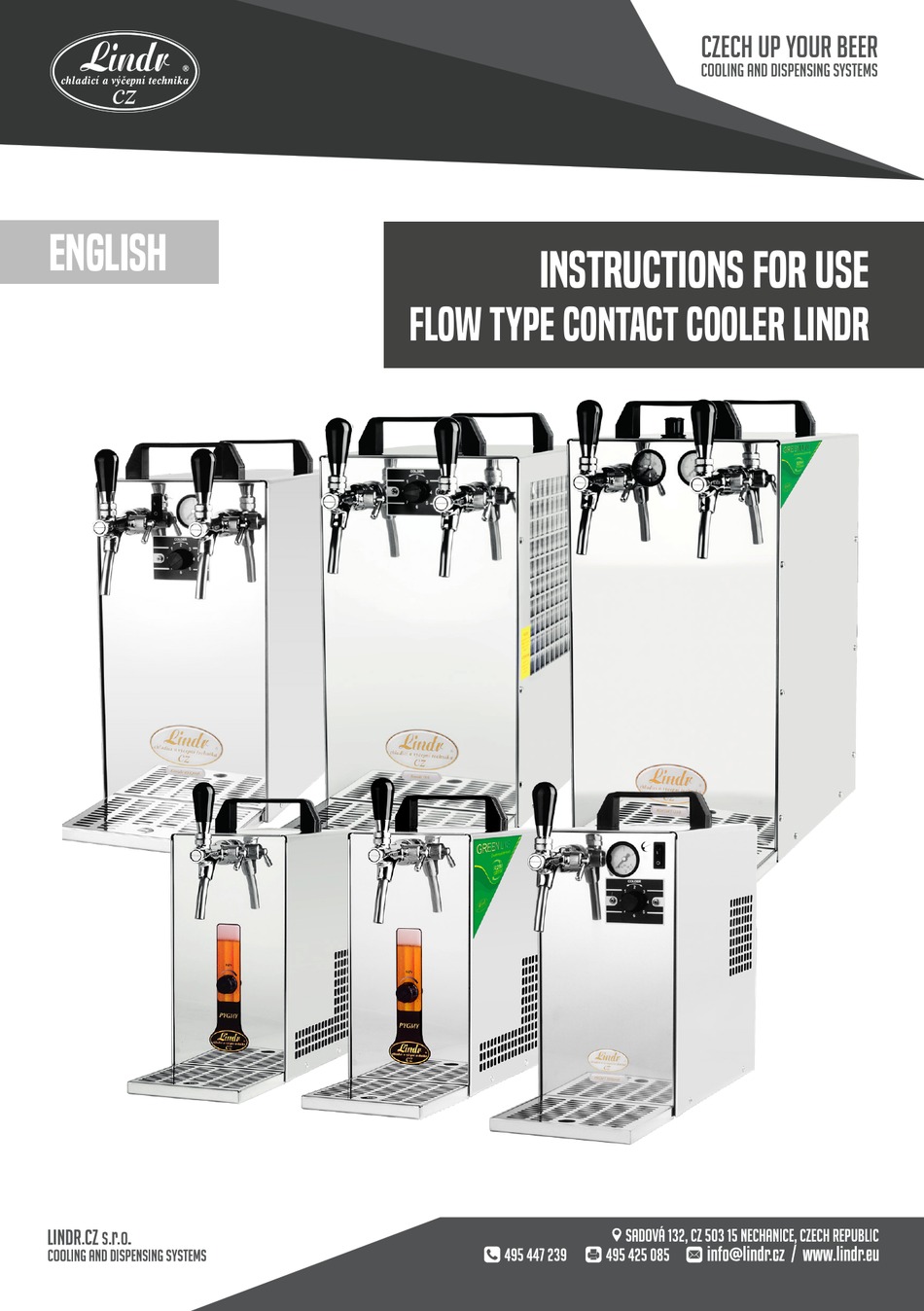

- Page 1 CZECH UP YOUR BEER COOLING AND DISPENSING SYSTEMS english INSTRUCTIONS FOR USE FLOW TYPE CONTACT COOLER LINDR...
- Page 2 Thank you for purchasing a Lindr product. This instruction manual is for models: frequency match the data shownon the PYGMY 20, PYGMY 20/K, PYGMY 25, PYGMY device. 25/K, PYGMY 30/K profi, KONTAKT 40, KON- CAUTION: Always make sure the power...
- Page 3 Use the machine best in cold and well ventilated room. The machine is intended for use at ambient temperature min. 6 ° C and max. 28 ° C. Do NOT use or store the FLOW TYPE CONTACT COOLER LINDR ˇ...
- Page 4 the packaging includes: Beer dispensing tap (1.)(models with 2 taps contain 2 pieces of beer dispensing taps) drip tray (2.) Service Key for the taps (3.). Connecting of the dispensing tap: Rotate the compensator lever (1.) in a downward direct (see picture).
- Page 5 5/ 16. The plastic fitting on the back of the cooler is labelled with an AIR sign. (see connection A.,C.) FLOW TYPE CONTACT COOLER LINDR ˇ...
- Page 6 Connection A: using a machine with inbuilt compressor and one dispensing tap 1. Beverage inlet 2. Air outlet 3. ON/OFF switch for the compressor 4. Keg coupler (S-type, A-type, M-type) 5. Plastic fitting F 5/8x9.5 mm 6. Plastic fitting F 5/8x8 mm 7.
- Page 7 Built-in air compressor Only for models with built-in air compressor PYGMY 20/K, PYGMY 25/K, PYGMY 30/K profi, KONTAKT 40/ K, KONTAKT 40/K profi and models GREEN LINE PYGMY 25/ K, KONTAKT 40/K, KONTAKT 70/ K, KONTAKT 155/ K.
- Page 8 Connection D: using a machine with two dispensing taps together with a C02 bottle 1. Beverage inlet 2. Keg coupler (S-type, A-type, M-type) 3. Plastic fitting F 5/8x9.5 mm 4. Plastic fitting F 5/8x8 mm 5. Plastic fitting F 5/8x8 mm 6.
- Page 9 (No.3). (The pressure setting is displayed on the manometer of the front side of the cooling machine). 7. Connect the keg using the keg coupler. FLOW TYPE CONTACT COOLER LINDR ˇ...
- Page 10 CHECK IF ALL THE CONNECTIONS ARE PROPERLY SEALED. the thermostat hand-barrow to the level S only - not more, otherwise the drinks lf there is everything in order, check the thermostat settings (off position). Connect could freeze in the cooler loops and could the cooler is plug to the electrical network.
- Page 11 Reduse of recycled materials helps prevent environmental pollution and reduces the demand for raw materials. Local regula tions may provide for separate collection of household appliances in local outlets or the point of purchase. FLOW TYPE CONTACT COOLER LINDR ˇ...
- Page 12 Maintenance: Cleaning with water (using a cleaning adapter): After each use, rinse the beverage tube with Connect the cleaning adapter to the water pressured water (see Sanitation with water supply using the hose. below). For easier sanitation use a sanitary adapter according to the type of your keg CAUTION! The maximum water temperature should...
- Page 13 Place the dispense tap in it´s original position (on the cooler) and perform the sanitation. Sanitizing ball will stops in the body of the dispense tap. Remove the ball ! Sanitizing ball FLOW TYPE CONTACT COOLER LINDR ˇ...
- Page 14 problem cause how to fix it beverage doesn´t flow the keg is connected wrongly check it the keg coupler is connec- ted properly not enough air pressure (low use a pump - pump air into the keg pressure) CO2 - check the pressure in the machine with inbuilt compensator - turn on the switch the water froze after sanitation...
- Page 15 FLOW TYPE CONTACT COOLER LINDR ˇ...
- Page 16 FLOW TYPE CONTACT COOLER LINDR ˇ...
