Page 1: Instructions For Use

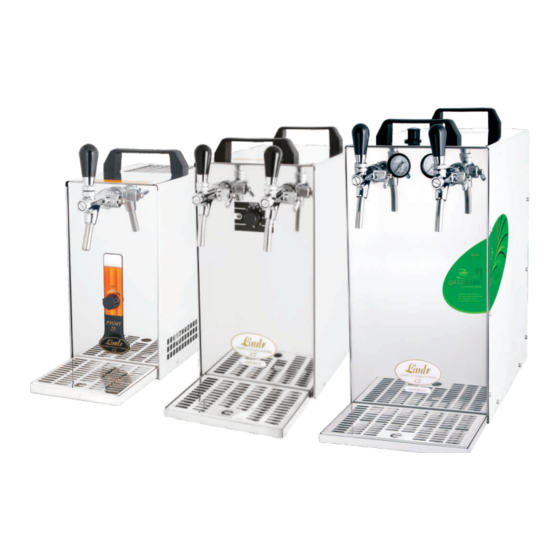

ENGLISH INSTRUCTIONS FOR USE FLOW TYPE CONTACT COOLER LINDR LINDR.CZ s.r.o. Cooling and dispensing systems Sadová 132, CZ 503 15 Nechanice, Czech Republic Tel.: 495 447 239 Fax: 495 425 085 E-mail: info@lindr.cz www.lindr.eu... - Page 2 2 hours before its first use. This instructions manual is for models: PYGMY 20, PYGMY 20/ K, PYGMY 25, PYGMY 25/ K, PYGMY 30/ K profi, CAUTION: KONTAKT 40, KONTAKT 40/ K, KONTAKT 40/ K profi,...
- Page 3 ENGLISH 2. Fit the tap in an upright 6. Screw the plastic fitting position onto the body F 5 / 8 x 8.0 mm onto the with a cap nut. coupler (air inlet) air inlet Beverage connection: 3. Secure the cap nut and 7.
- Page 4 Connection A: using a machine with with inbuilt compressor and one dispensing tap. 1. Beverage inlet 2. Air outlet 3. ON/ OFF switch for the compressor 4.Keg coupler (S-type, A-type, M-type) 5. Plastic fitting F 5/8 x9.5mm 6. Plastic fitting F 5/8 x 8 mm 7.
- Page 5 ENGLISH Connection D: using a machine with two dispensing taps together with a CO2 bottle. 1. Beverage inlet 2. Keg coupler (S-type, A-type, M-type) 3. Plastic fitting F 5/8 x9.5mm 4. Plastic fitting F 5/8 x 8 mm 5. Plastic fitting Y 8x8x8mm 6.
- Page 6 Electrical connection: The machine has to be connected to a power supply CHECK IF ALL THE CONNECTIONS ARE PROPERLY of 220-240V 50Hz with 16A circuit breaker. Power SEALED. plug circuit installation must comply with applicable regulations DIN, EN and ISO. If the power cord is If there is everything in order, check the thermostat damaged, it must be replaced by the manufacturer or settings (off position).
- Page 7 ENGLISH Maintenance: Disassembly After each use, rinse the beverage tube with a of the compensator from pressured water (see Sanitation with water below). For the tap: easier sanitation use a sanitary adapter according to 14. Unscrew the cap nut the type of your keg coupler. It is necessary to sanitize on the dispensing tap (it chemically once every two months (see Chemical will stay on the cooler)
- Page 8 Before you call the service: Problem Cause How to fix it Beverage doesn't flow The keg is connected Check if the keg coupler is connected properly wrongly Not enough air pressure Use a pump - pump air into the keg (low pressure) CO2-check the pressure in the machine with inbuilt compressor- turn on the switch...
