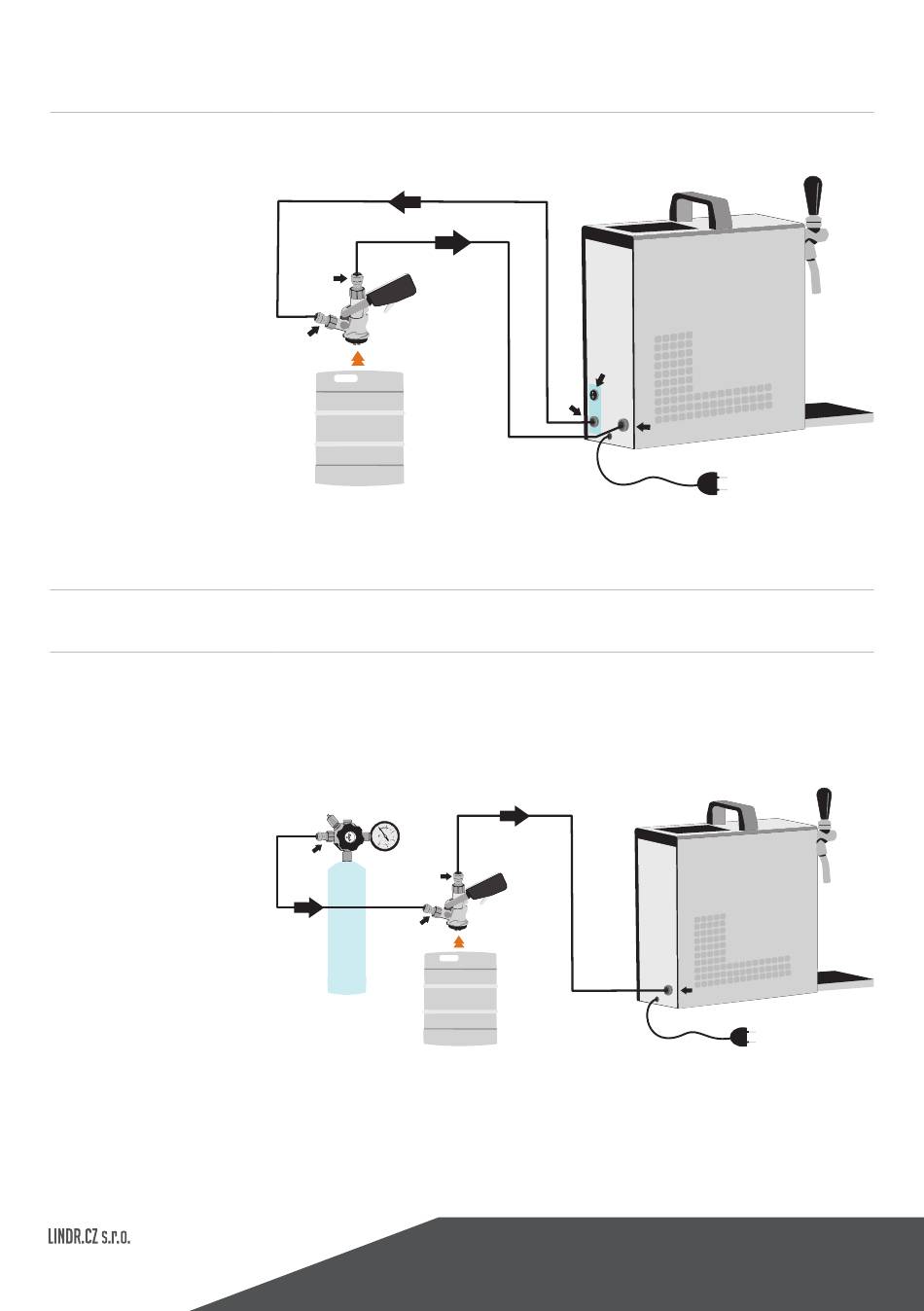

Connection A: using a machine with inbuilt compressor and one dispensing tap
1. Beverage inlet
2. Air outlet
3. ON/OFF switch for
the compressor
4. Keg coupler (S-type,
A-type, M-type)
5. Plastic fitting
F 5/8x9.5 mm
6. Plastic fitting
F 5/8x8 mm
7. Beverge
Connection B: using a machine with one dispensing tap together with a mini CO2 bottle
1. Beverage inlet
2. Keg coupler (S-type,
A-type, M-type)
3. Plastic fitting
F 5/8x9.5 mm
4. Plastic fitting
F 5/8x8 mm
5. Pressure reducer for
Co2 bootle mini
6. Plastic fitting
F 7/16x8 mm
7. Beverage
COOLING AND DISPENSING SYSTEMS
4.
5.
6.
7.
5.
6.
3.
4.
7.
3.
2.
2.
22
1 .
1.
