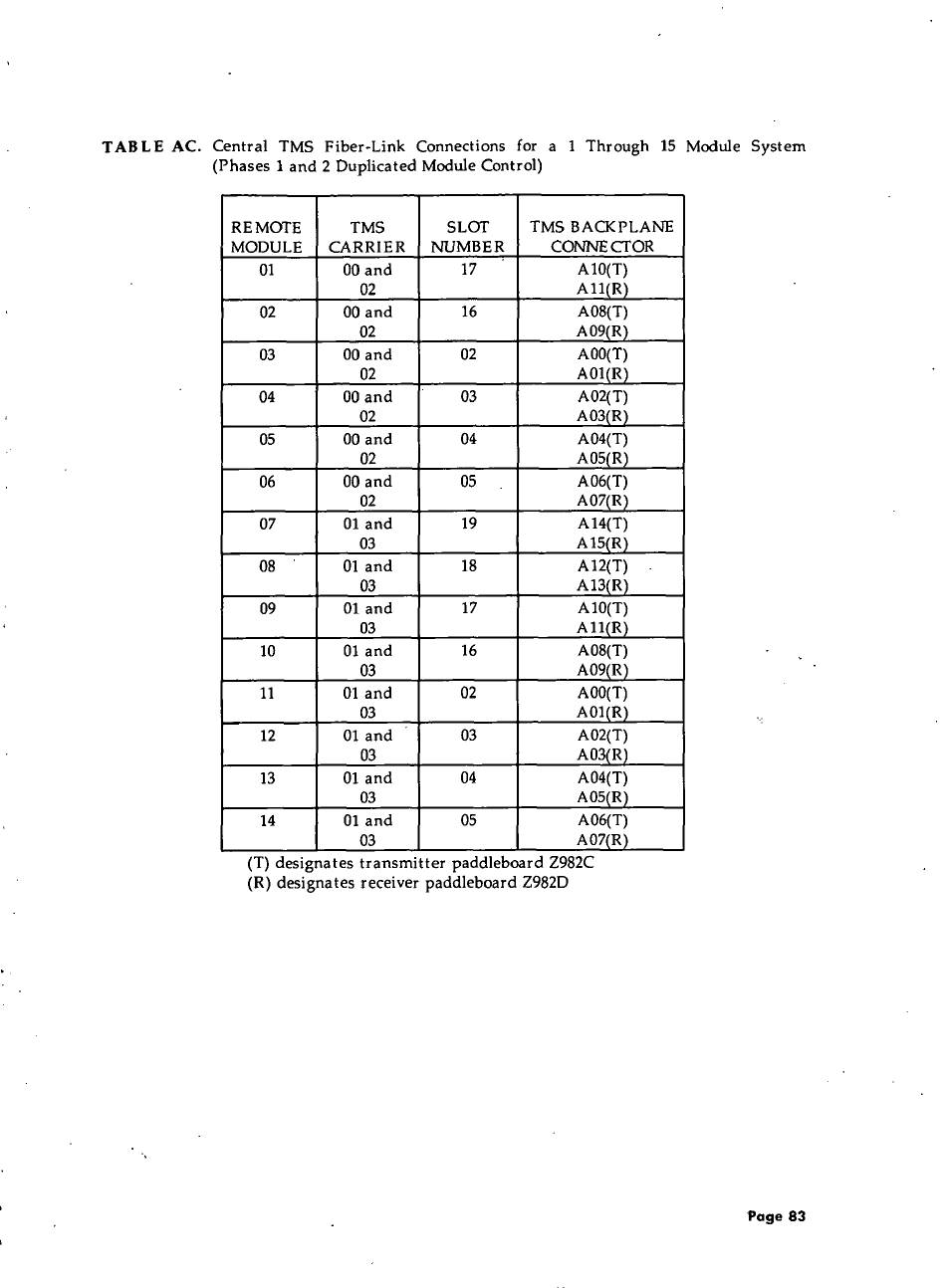

TABLE AC. Central TMS Fiber-Link Connections for a 1 Through 15 Module System
(Phases 1 and 2 Duplicated Module Control)
REMOTE
MODULE
TMS
CARRIER
SLOT
NUMBER
TMS BACKPLANE
CONNECTOR
01 00 and
02
17 A10(T)
All(R)
02
00 and
02
16 A08(T)
A09(R)
03
00 and
02
02 A00(T)
A01(R)
04
00 and
02
03 A02(T)
A03(R)
05
00 and
02
04 A04(T)
A05(R)
06
00 and
02
05
A06(T)
A07(R)
07 01 and
03
19 A14(T)
A15(R)
08
01 and
03
18 Al2(T)
A13(R)
09
01 and
03
17 A10(T)
All(R)
10
01 and
03
16 A08(T)
A09(R)
11 01 and
03
02 A00(T)
A01(R)
12 01 and
03
03 A02(T)
A03(R)
13
01 and
03
04 A04(T)
A05(R)
14 01 and
03
05
A06(T)
A07(R)
(T) designates transmi ter paddleboard Z982C
(R) designates receiver paddleboard Z982D
