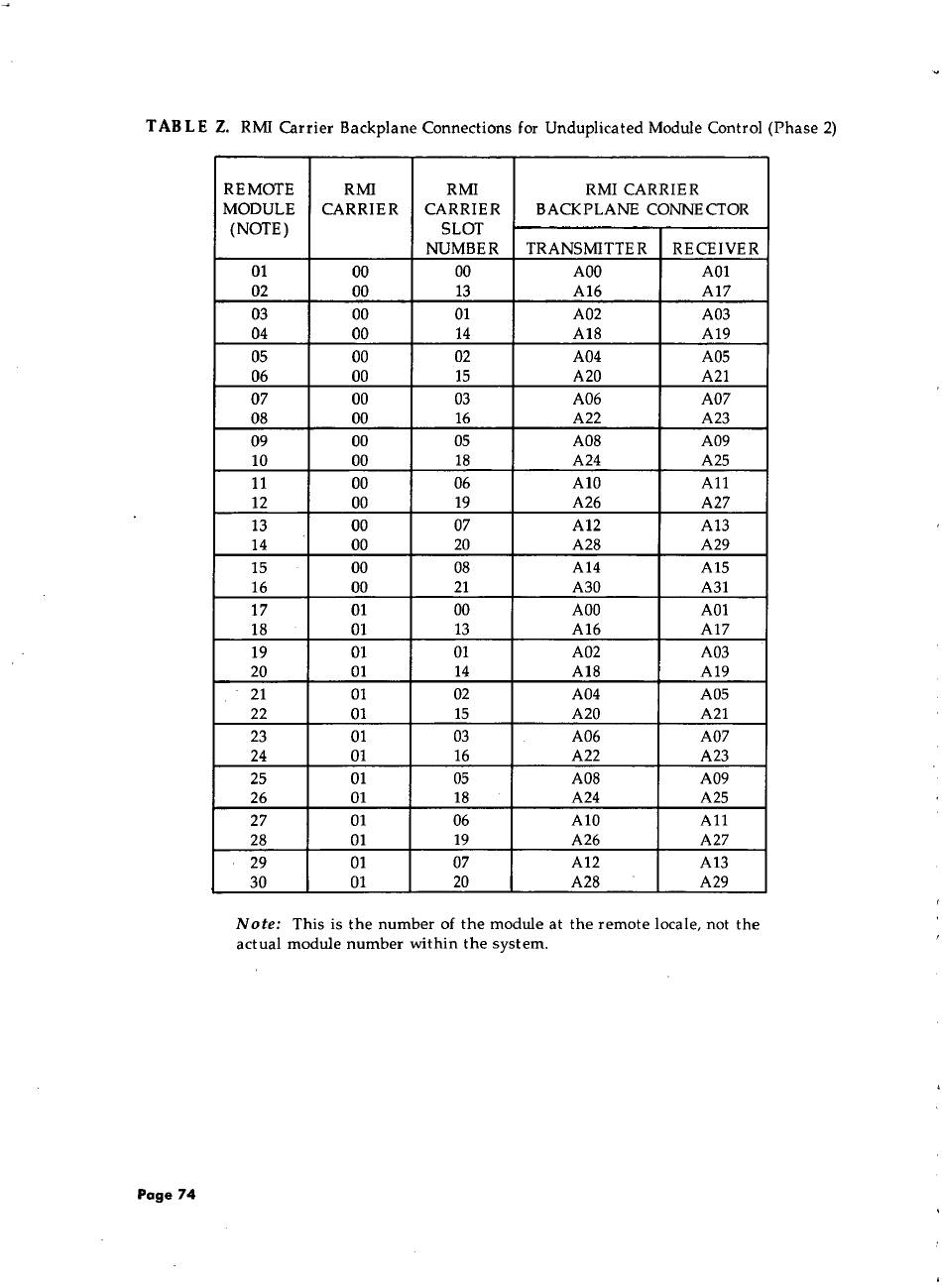

TABLE Z. RMI Carrier Backplane Connections for Unduplicated Module Control Phase 2)
REMOTE
MODULE
(NOTE)
RMI
CARRIER
RMI
CARRIER
SLOT
NUMBER
RMI CARRIER
BACKPLANE CONNECTOR
TRANSMITTER RECEIVER
01 00 00 A00 A01
02 00 13 A16 A17
03 00 01 A02 A03
04
00
14 A18 A19
05 00
02 A04
A05
06 00 15 A20 A21
07 00 03 A06 A07
08 00 16 A22 A23
09 00 05 A08 A09
10 00 18 A24 A25
11 00 06 A10 All
12 00 19
A26
A27
13 00 07 Al2 A13
14 00
20 A28
A29
15 00 08
A14 A15
16 00
21 A30 A31
17 01 00 A00 A01
18 01 13
A16
A17
19 01 01
A02
A03
20 01
14 A18 A19
21 01 02 A04 A05
22 01 15 A20 A21
23 01
03
A06
A07
24 01 16 A22 A23
25 01 05 A08 A09
26 01 18
A24 A25
27 01 06
A10 All
28
01 19 A26 A27
• 29
01
07
Al2
A13
30 01
20 A28 A29
Note: This is the number of the module at the remote locale, not the
actual module number within the system.
