Power, Grounding and Alarm Connections
Six arrangements of power equipment are used with the Remote Group Housing to provide
the power for the unit.
Off-line Switcher (OLS)With No Holdover or Reserve Power

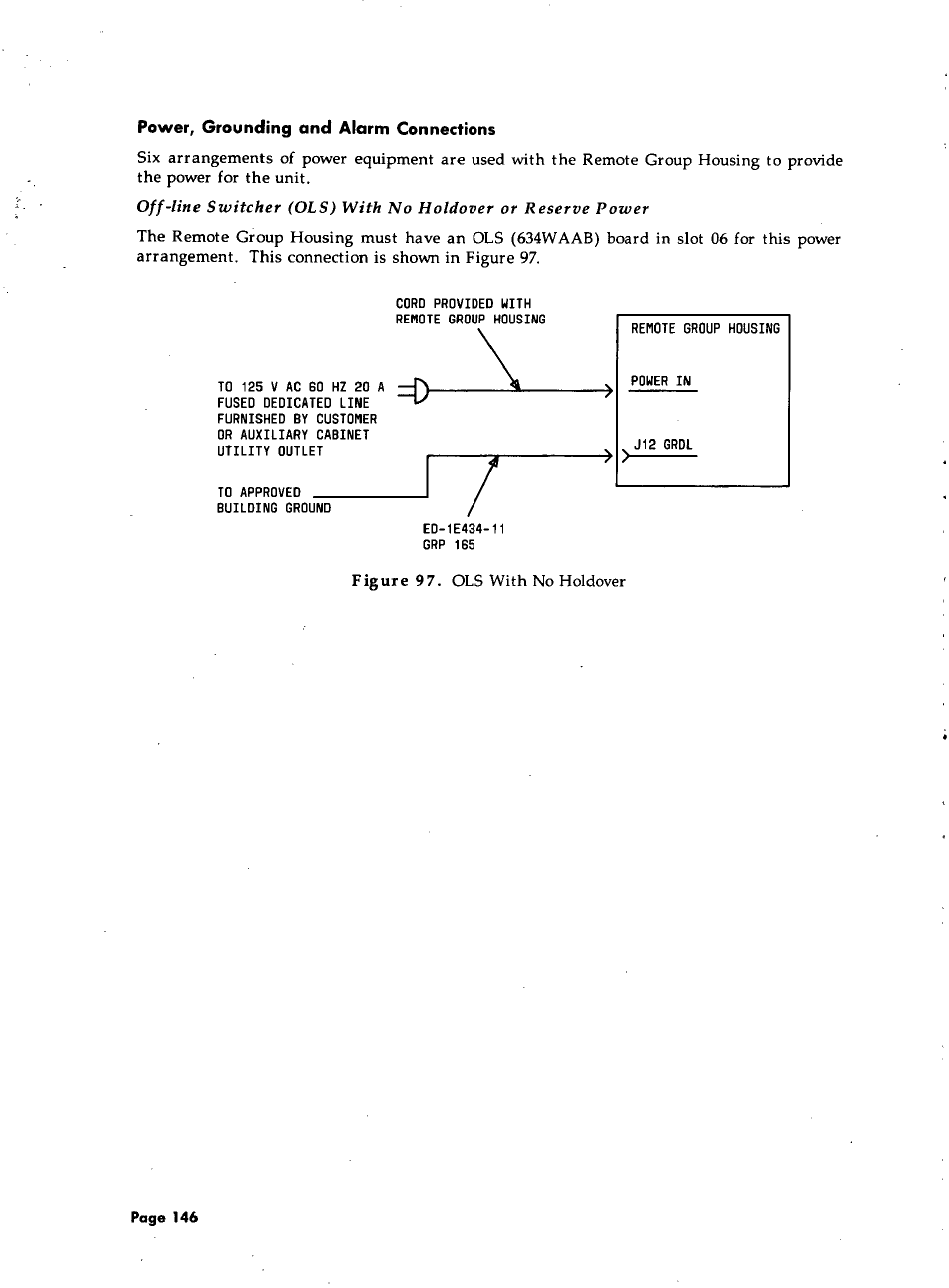

The Remote Group Housing must have an OLS (634WAAB) board in slot 06 for this power
arrangement. This connection is shown in Figure 97.
TO 125 V AC 60 HZ 20 A
FUSED DEDICATED LINE
FURNISHED BY CUSTOMER
OR AUXILIARY CABINET
UTILITY OUTLET
TO APPROVED
BUILDING GROUND
CORD PROVIDED WITH
REMOTE GROUP HOUSING
ED-1E434-11
GRP 165
REMOTE GROUP HOUSING
POWER IN
J12 GRDL
Figure 97. OLS With No Holdover
Page 146
