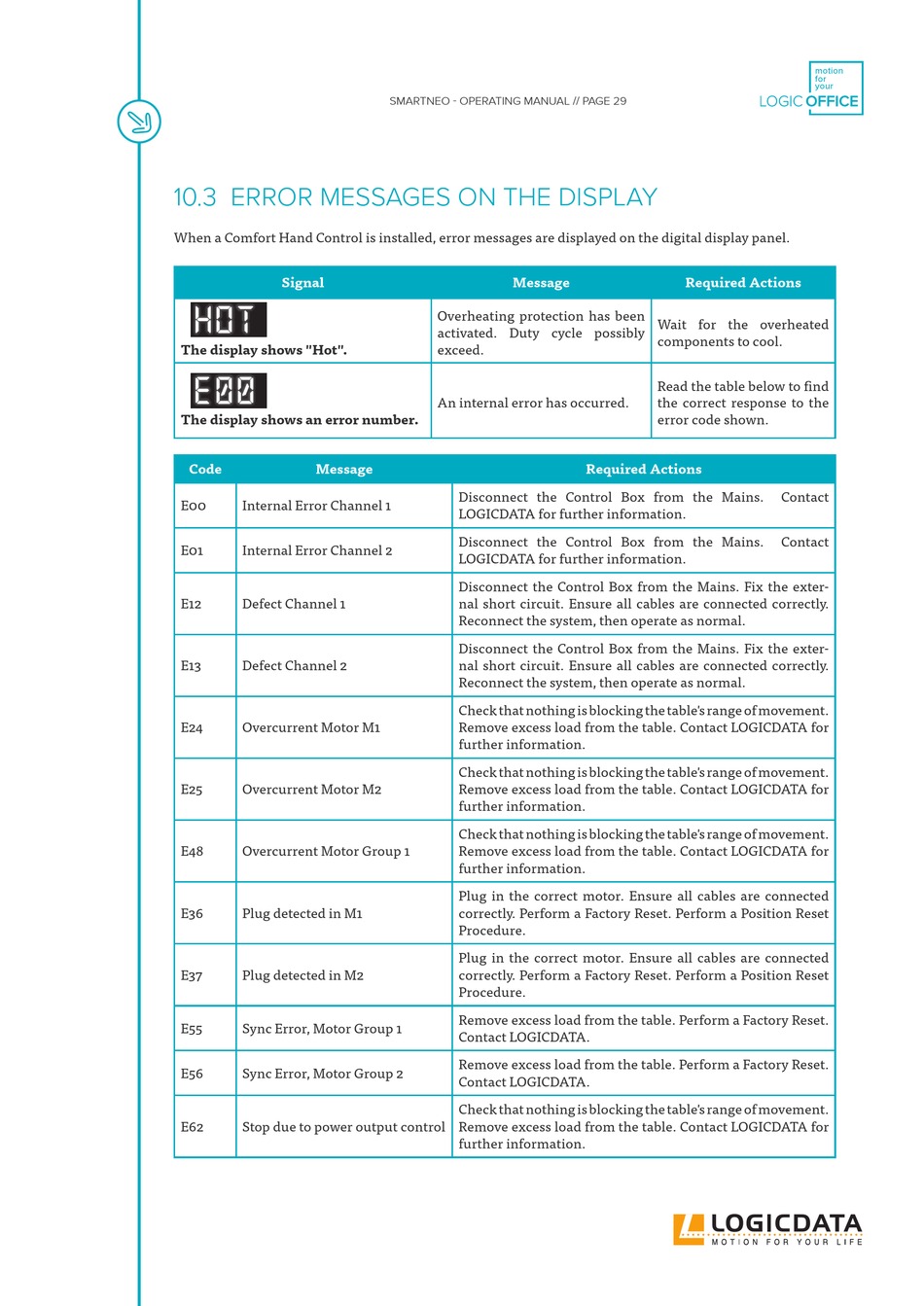

10.3 ERROR MESSAGES ON THE DISPLAY
When a Comfort Hand Control is installed, error messages are displayed on the digital display panel.
Signal
H o T
The display shows "Hot".
E 0 0
The display shows an error number.
Code Message
E00 Internal Error Channel 1
E01 Internal Error Channel 2
E12 Defect Channel 1
E13 Defect Channel 2
E24 Overcurrent Motor M1
E25 Overcurrent Motor M2
E48 Overcurrent Motor Group 1
E36 Plug detected in M1
E37 Plug detected in M2
E55 Sync Error, Motor Group 1
E56 Sync Error, Motor Group 2
E62 Stop due to power output control
SMARTNEO - OPERATING MANUAL // PAGE 29
Message
Overheating protection has been
activated. Duty cycle possibly
exceed.
An internal error has occurred.
Disconnect the Control Box from the Mains.
LOGICDATA for further information.
Disconnect the Control Box from the Mains.
LOGICDATA for further information.
Disconnect the Control Box from the Mains. Fix the exter-
nal short circuit. Ensure all cables are connected correctly.
Reconnect the system, then operate as normal.
Disconnect the Control Box from the Mains. Fix the exter-
nal short circuit. Ensure all cables are connected correctly.
Reconnect the system, then operate as normal.
Check that nothing is blocking the table's range of movement.
Remove excess load from the table. Contact LOGICDATA for
further information.
Check that nothing is blocking the table's range of movement.
Remove excess load from the table. Contact LOGICDATA for
further information.
Check that nothing is blocking the table's range of movement.
Remove excess load from the table. Contact LOGICDATA for
further information.
Plug in the correct motor. Ensure all cables are connected
correctly. Perform a Factory Reset. Perform a Position Reset
Procedure.
Plug in the correct motor. Ensure all cables are connected
correctly. Perform a Factory Reset. Perform a Position Reset
Procedure.
Remove excess load from the table. Perform a Factory Reset.
Contact LOGICDATA.
Remove excess load from the table. Perform a Factory Reset.
Contact LOGICDATA.
Check that nothing is blocking the table's range of movement.
Remove excess load from the table. Contact LOGICDATA for
further information.
Required Actions
Wait for the overheated
components to cool.
Read the table below to find
the correct response to the
error code shown.
Required Actions
Contact
Contact
