- Page 1 MANUAL Document Version 1.0 / February 2019 TOUCHfamily Valid for: • TOUCHfx • TOUCHdown • TOUCHinlay...
- Page 2 TOUCH FAMILY - OPERATING MANUAL // PAGE 2 TOUCH Family - Operating Manual Document Version 1.0 / February 2019 This document was originally published in English. LOGICDATA Electronic & Software Entwicklungs GmbH Wirtschaftspark 18 8530 Deutschlandsberg Austria Phone: +43 (0) 3462 51 98 0...
-
Page 3: Table Of Contents
TOUCH FAMILY - OPERATING MANUAL // PAGE 3 CONTENTS General information Other applicable documents Copyright Royalty-free use of images and text Trademarks Safety Target audience General safety regulations Intended use Reasonably foreseeable misuse Explanation of symbols and signal words Liability Residual risks Skilled Persons Notes for Resellers... - Page 4 TOUCH FAMILY - OPERATING MANUAL // PAGE 4 Safety During Assembly TOUCHfx 6.2.1 Required Components 6.2.2 Process 6.2.3 Completing Assembly TOUCHdown 6.3.1 Required Components 6.3.2 Process 6.3.3 Completing Assembly TOUCHinlay 6.4.1 Required Components 6.4.2 Process 6.4.3 Completing Assembly Operation Adjusting the Table Top Height Saving a Memory Position Adjusting the Table to a Memory Position Key Lock...
-
Page 5: General Information
Height-Adjustable Table Systems. The license does not include logos, designs, and page layout elements belonging to LOGICDATA. The Reseller may make any necessary changes to the text and images to adapt them for the purpose of end user documentation. Texts and images may not be sold in their current state, and may not be published or sublicensed digitally. -
Page 6: Safety
• Do not remove, change, bridge, or bypass any protection, safety, or monitoring equipment • Do not convert or modify any components without written approval from LOGICDATA • In the event of malfunction or damage, faulty components must be replaced immediately •... -
Page 7: Explanation Of Symbols And Signal Words
2.6 LIABILITY LOGICDATA products comply with all currently applicable health and safety regulations. However, risk can result from incorrect operation or misuse. LOGICDATA is not liable for damage or injury caused by: • Improper product use • Disregard of the documentation •... -
Page 8: Residual Risks
TOUCH FAMILY - OPERATING MANUAL // PAGE 8 sure their product complies with all relevant directives, standards, and laws. LOGICDATA shall not be held liable for any damage that is directly or indirectly caused by the delivery or use of this document. Resellers must observe the relevant safety standards and guidelines for each product in the Table System. -
Page 9: Skilled Persons
2.9 NOTES FOR RESELLERS Resellers are companies that purchase LOGICDATA products for installation in their own products. INFO For reasons of EU conformity and product safety, Resellers should provide end users with an Operating Manual in their native EU official language. -
Page 10: Scope Of Delivery
TOUCH FAMILY - OPERATING MANUAL // PAGE 10 3 SCOPE OF DELIVERY The standard scope of delivery for Handsets in the TOUCH Family consists of the Handset and its pre-at- tached cable. All other components necessary for installing the Handset (e.g. Mounting Screws for the TOUCHdown and TOUCHfx) must be supplied separately by the reseller. -
Page 11: Products

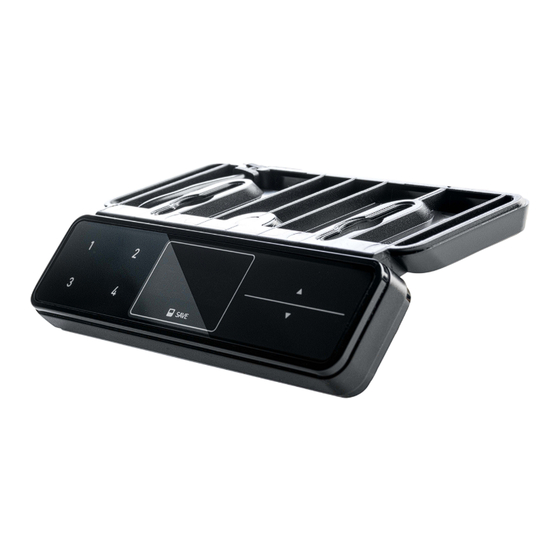

TOUCH FAMILY - OPERATING MANUAL // PAGE 11 5 PRODUCTS The TOUCH Family of Handsets consists of 3 products: • TOUCHfx • TOUCHdown • TOUCHinlay Each Handset may have several variants. Variants may be equipped with additional features or different configurations. -
Page 12: Touchdown
TOUCH FAMILY - OPERATING MANUAL // PAGE 12 5.1.2 TOUCH-DOWN UP / DOWN Keys Memory Position Keys SAVE Key Display Drilling Holes Supports for Cable Loop *Cable not shown. Fig. 2: Product features, TOUCHdown 5.1.3 TOUCH-INLAY UP / DOWN Keys Memory Position Keys SAVE Key Display... -
Page 13: Dimensions
TOUCH FAMILY - OPERATING MANUAL // PAGE 13 5.2 DIMENSIONS 5.2.1 TOUCHFX Length 85.9 mm | 3.380 " Width 132.5 mm | 5.216 " Height (to underside of Table Top) 32.8 mm | 1.289 " 132,5 mm 5,216 " Fig. 4: Product dimensions, TOUCHfx 5.2.2 TOUCH-DOWN Length... -
Page 14: Touchinlay
If you do not mill through the entire Table Top, you will need to drill a separate hole to accomodate the TOUCHinlay's cable. In this case, contact LOGICDATA for further information on dimensions. -
Page 15: Drilling Templates
TOUCH FAMILY - OPERATING MANUAL // PAGE 15 5.3 DRILLING TEMPLATES 5.3.1 TOUCHFX 38 mm 1.496 " Side Edge Fig. 8: Drilling Template, TOUCHfx... -
Page 16: Touchdown
TOUCH FAMILY - OPERATING MANUAL // PAGE 16 5.3.2 TOUCH-DOWN 34.0 mm 1.34 " 106.0 mm 4.17 " 106.0 mm 4.17 " 34.0 mm 1.34 " Side Edge Fig. 9: Drilling Template, TOUCHdown... -
Page 17: Assembly
TOUCH FAMILY - OPERATING MANUAL // PAGE 17 6 ASSEMBLY This chapter describes the process of installing the TOUCH Family Handset into the Height-Adjustable Table System. SAFETY DURING ASSEMBLY The following safety instructions are valid for each Handset within the TOUCH Family. Hazards relating only to the installation of a specific Handset are listed in that Handset's assembly instructions. -
Page 18: Touchfx
TOUCH FAMILY - OPERATING MANUAL // PAGE 18 6.2 ASSEMBLY: TOUCHfx 6.2.1 REQUIRED COMPONENTS TOUCHfx 2 Mounting Screws (supplied by Reseller) Tool Screwdriver Screw specifications INFO Thread diameter: max. 5 mm | Head diameter: 8.5 mm - 10.6 mm If possible, do not use countersunk-head screws. 6.2.2 PROCESS 1. -
Page 19: Touchdown
TOUCH FAMILY - OPERATING MANUAL // PAGE 19 6.3 ASSEMBLY: TOUCHDOWN 6.3.1 REQUIRED COMPONENTS The following components are required to assemble the TOUCHdown: TOUCHdown 4 Mounting Screws (supplied by Reseller) Tool Screwdriver Screw specifications INFO Thread diameter: max. 5 mm | Head diameter: max. 10 mm If possible, do not use countersunk-head screws. -
Page 20: Completing Assembly
TOUCH FAMILY - OPERATING MANUAL // PAGE 20 2. Ensure the cable is routed correctly. For correct operation, a 10cm Cable Loop must be routed. Use the Cable supports on the back edge of the Control Box to help you do this (Fig. 12). Fig. -
Page 21: Touchinlay
TOUCH FAMILY - OPERATING MANUAL // PAGE 21 6.4 ASSEMBLY: TOUCHINLAY 6.4.1 REQUIRED COMPONENTS The following components are required to assemble the TOUCHinlay: TOUCHinlay Handset Milling cutter (or similar) 6.4.2 PROCESS 1. Use a milling cutter or similar to mill the cut-out. The dimensions for the milled cut-out are shown in Chapter 5.2.4 (Fig. -
Page 22: Operation
TOUCH Handset is connected. TOUCH Handsets are compatible with a large number of LOGICDATA Control Boxes. Before using the Table System, you must also read the Operating Manual for the installed Control Box, including all relevant safety information, in full. -
Page 23: Adjusting The Table Top Height
TOUCH FAMILY - OPERATING MANUAL // PAGE 23 ADJUSTING THE TABLE TOP HEIGHT CAUTION Risk of minor or moderate injury through crushing Your fingers may be crushed when you attempt to change the height of the table • Keep fingers away from moving parts •... -
Page 24: Adjusting The Table To A Memory Position
(EN 60335-1). These cannot be met by LOGICDATA Control Boxes. • LOGICDATA is not liable for injuries or damage caused by activating the double- click function Double-click the required Memory Position Key (e.g. 2) ▸ The table will move to the Memory Position. You do not have to hold the Key... -
Page 25: Key Lock
TOUCH FAMILY - OPERATING MANUAL // PAGE 25 7.4 KEY LOCK CAUTION Risk of minor or moderate injury through uncontrolled movement When attempting to activate the Key Lock, pressing the Handset too forcefully may cause the table to move unexpectedly. Failure to anticipate the table's movements may lead to minor or moderate injury through crushing. -
Page 26: Notes For Touchdown
TOUCH FAMILY - OPERATING MANUAL // PAGE 26 7.5 OPERATION: NOTES FOR TOUCHDOWN The following information applies only to the TOUCHdown Handset. If you have a different Handset, pro- ceed to the next chapter. 7.5.1 PUSH-PUSH FUNCTION NOTICE To avoid product damage, ensure a 10 cm Cable Loop is routed (Chapter 6.3.2, Fig. 12) The Push-Push Function allows the TOUCHdown to be slid underneath the table when not in use, and move outwards to the operating position when it is needed. -
Page 27: Additional Information
Using a Handset alongside unauthorized spare or accessory parts may lead to death or serious injury through electric shocks and other hazards. • Only use accessory parts produced or approved by LOGICDATA • Only use replacement parts produced or approved by LOGICDATA •... -
Page 28: Troubleshooting
TOUCH FAMILY - OPERATING MANUAL // PAGE 28 8.4 TROUBLESHOOTING Usually, malfunctions occur when Handsets are pressed while calibrating. If the Handset fails to function, you will need to restart the system. To do this: 1. Unplug the Handset from the Control Box. 2. - Page 29 LOGICDATA LOGICDATA North America, Inc. Electronic & Software Entwicklungs GmbH 1525 Gezon Parkway SW, Suite C Wirtschaftspark 18 Grand Rapids, MI 49509 8530 Deutschlandsberg Austria Phone: +43 (0)3462 5198 0 Phone: +1 (616) 328 8841 Fax: +43 (0)3462 5198 1030 Email: office.na@logicdata.net...
