SMARTNEO - OPERATING MANUAL // PAGE 13
49.2 mm (±0.15 mm)

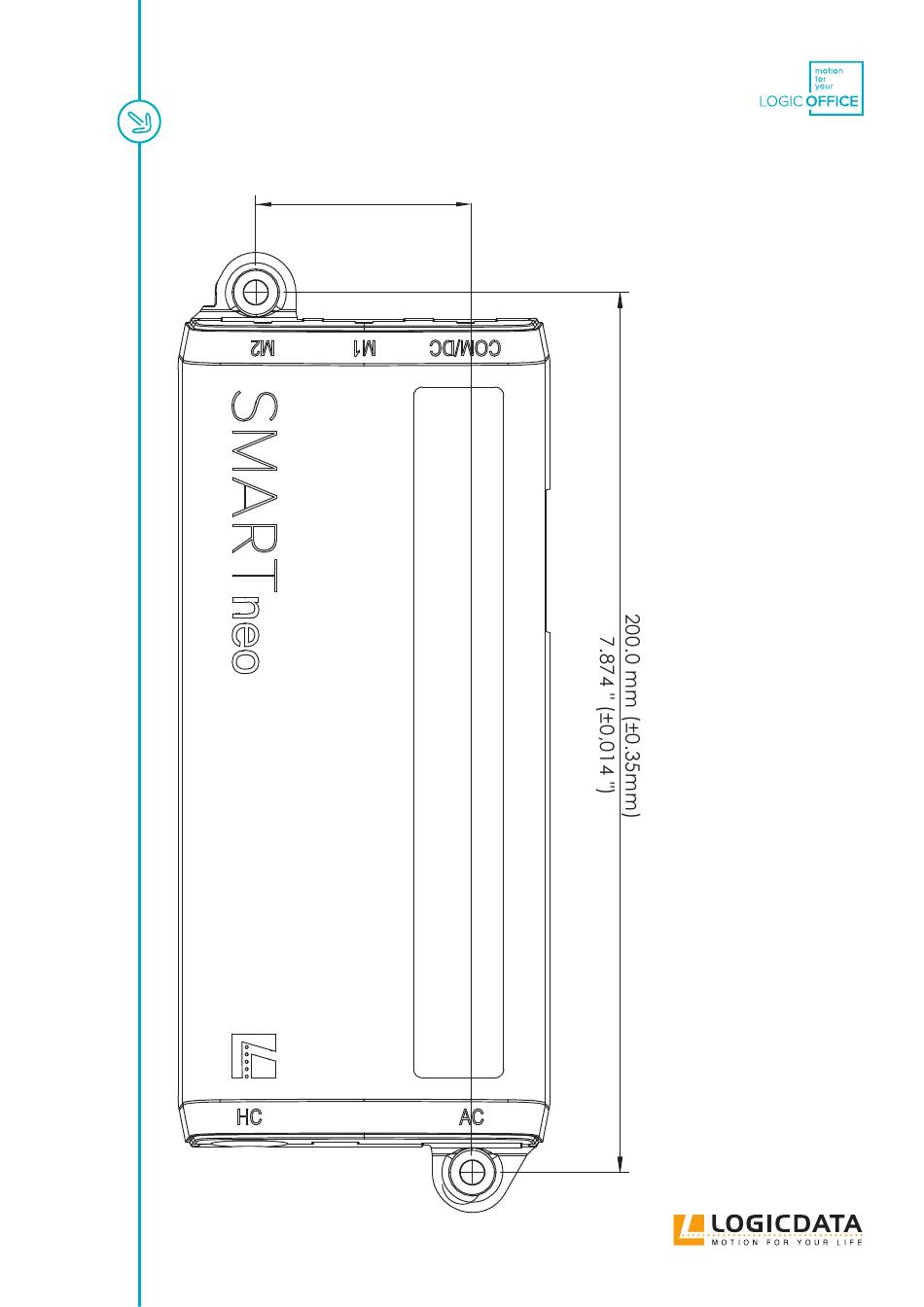

DRILLING TEMPLATE
1,937 " (± 0,006 ")
The mounting points for the
SMARTneo-2G have a diam-
eter of 5.5 mm.
The drilled holes must be
200 mm (lengthways) and
49.2 mm (widthways) apart.
The entire housing of the
SMARTneo-2G must be un-
derneath the table.
