4 PRODUCT

The SMARTneo-2G is a Control Box for height-adjustable tables. There are variants of the SMARTneo-2G
for specific domestic mains power supplies (e.g. EU or US). The exact variant is denoted by the product's
order code. Consult the accompanying Datasheet to ensure that you have received the correct variant. The
functions your SMARTneo-2G Control Box can fulfil is also dependent on parameterization (see Chapter 8
Software Dependent Functions).
4.1

KEY PRODUCT FEATURES

4.1.1

PLUG PORTS AND CONNECTIONS

You must read the full product documentation of each product you are connecting to the SMARTneo-2G to
ensure correct assembly and the safety of all users. Fig. 1 shows all the plug ports and connections featured
in the SMARTneo-2G.
The SMARTneo-2G has connection points for the following product types:
• Actuators
• Hand Controls
• Power Input (Mains or Battery Pack)
• Communication cable (Cascading)
1 Hand Control Port (HC)
2 AC Input Port (Power Cable)
3 DC/Com Port
4 Motor Port 1 (M1)
5 Motor Port 2 (M2)

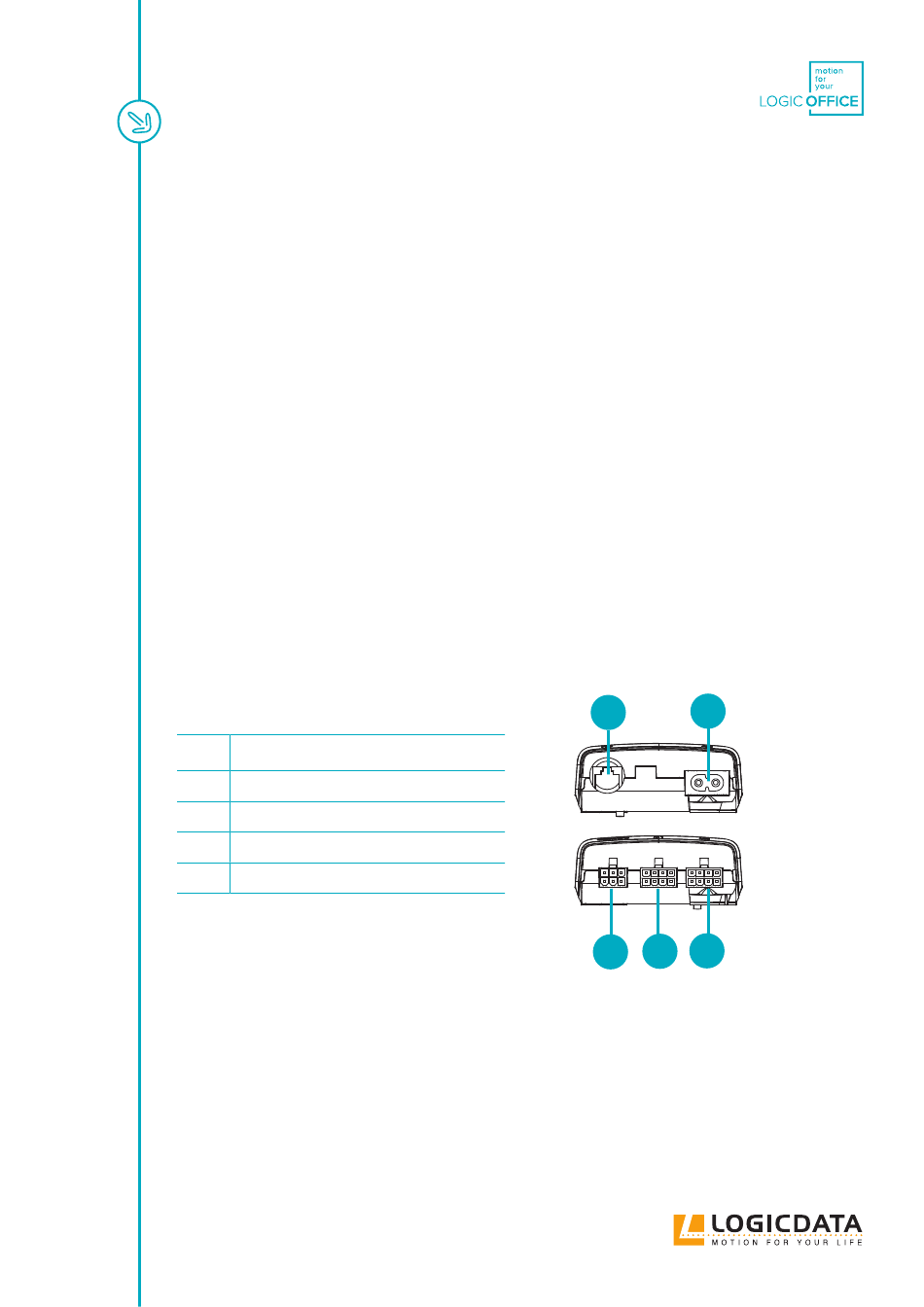

Fig. 1: SMARTneo-2G Connection Points
SMARTNEO - OPERATING MANUAL // PAGE 11
2
1
5
3 4
