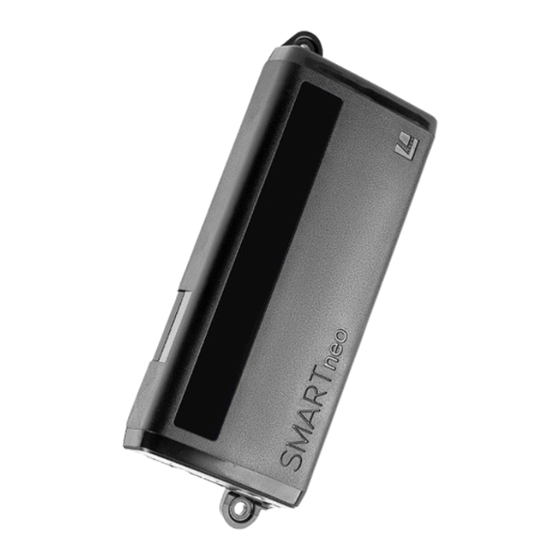

- Page 1 MANUAL Document Version 1.0 /May 2019 SMARTneo-2G...
- Page 2 SMARTNEO - OPERATING MANUAL // PAGE 2 SMARTneo-2G - Operating Manual Document Version 1.0 / May 2019 This document was originally published in English. LOGICDATA Electronic & Software Entwicklungs GmbH Wirtschaftspark 18 8530 Deutschlandsberg Austria Phone: +43 (0) 3462 51 98 0...
-
Page 3: Table Of Contents
SMARTNEO - OPERATING MANUAL // PAGE 3 CONTENTS General information Other applicable documents Copyright Royalty-free use of images and text Trademarks Safety Target audience General safety regulations and obligations Intended use Reasonably foreseeable misuse Explanation of symbols and signal words Liability Residual risks Skilled Persons... - Page 4 SMARTNEO - OPERATING MANUAL // PAGE 4 Operation Adjusting the Table Top Height Saving a Memory Position 7.2.1 Using a Basic Hand Control 7.2.2 Using a Comfort Hand Control Adjusting the Table to a Memory Position 7.3.1 Using a Basic Hand Control 7.3.2 Using a Comfort Hand Control Software-dependent Functions Low Speed Area...
-
Page 5: General Information
The license does not include logos, designs, and page layout elements belonging to LOGICDATA. The customer may make any necessary changes to the text and images to adapt them for the purpose of end user documentation. Texts and images may not be sold in their current state, and may not be published or sublicensed digitally. -
Page 6: Safety
2.4 REASONABLY FORESEEABLE MISUSE Usage outside of the intended use of the SMARTneo-2G could lead to minor injuries, serious injuries, or even death. Reasonably foreseeable misuse of the system includes, but does not extend to: •... -
Page 7: Explanation Of Symbols And Signal Words
Indicates important tips for handling the product. INFO 2.6 LIABILITY LOGICDATA products comply with all currently applicable health and safety regulations. However, risk can result from incorrect operation or misuse. LOGICDATA is not liable for damage or injury caused by: • Improper product use •... -
Page 8: Residual Risks
• Do not place the Cable of the SMARTneo-2G on heated surfaces • Do not immerse the SMARTneo-2G or its components in liquid. Clean only with a dry or slightly damp cloth • Check the housing and cables of the SMARTneo-2G for visible damage. Do not in- stall or operate damaged products. -
Page 9: Skilled Persons
SMARTNEO - OPERATING MANUAL // PAGE 9 CAUTION Risk of minor or moderate injury through crushing If any Hand Control Key becomes stuck while the system is in motion, the system may not stop properly. This may lead to minor or moderate injury through crushing. •... -
Page 10: Notes For Resellers
SMARTNEO - OPERATING MANUAL // PAGE 10 2.9 NOTES FOR RESELLERS Resellers are companies that purchase LOGICDATA products for installation in their own products. For reasons of EU conformity and product safety, Resellers should provide end users INFO with an Operating Manual in their native EU official language. -
Page 11: Product
PLUG PORTS AND CONNECTIONS You must read the full product documentation of each product you are connecting to the SMARTneo-2G to ensure correct assembly and the safety of all users. Fig. 1 shows all the plug ports and connections featured in the SMARTneo-2G. -
Page 12: Dimensions
188.3 mm | 7.874 " Width 84.5 mm | 3.328 " Height 35.0 mm | 1.376 " 200 mm 7.874 “ 188.3 mm 7.411 “ 84.5 mm 3.328 “ Fig. 2: Dimensions SMARTneo-2G (scaled 1:2) 4.2.1 DRILLING TEMPLATE See overleaf. - Page 13 SMARTNEO - OPERATING MANUAL // PAGE 13 49.2 mm (±0.15 mm) DRILLING TEMPLATE 1,937 " (± 0,006 ") The mounting points for the SMARTneo-2G have a diam- eter of 5.5 mm. The drilled holes must be 200 mm (lengthways) and 49.2 mm (widthways) apart.
-
Page 14: Assembly
SMARTNEO - OPERATING MANUAL // PAGE 14 5 ASSEMBLY This chapter of the Operating Manual describes the process of mounting the SMARTneo-2G to the Table Top. You must read the documentation for each part of the system (Actuator, User Interface, Power Unit, etc.) for that product’s mounting instructions. -
Page 15: Process
Drilling Template on page 13 to help you. 2. Drill the holes into the table top. 3. Use the screwdriver and 2 Mounting Screws to attach the SMARTneo-2G to the Table Top at the drilled holes. The required tightening torque depends on the material of the Table Top. Do not exceed NOTICE 2 Nm. -
Page 16: Connecting The System
Assembly instructions must be included in your end user Operating Manual SYSTEM CONFIGURATION The SMARTneo-2G can be used to create a variety of Table Systems. This Manual describes the connection of table systems in which only one Control Box will be connected. For Table Systems with more than one Control Box, refer to the SMARTneo-2G Cascading Manual for assembly and safety advice. -
Page 17: Connecting Actuators
Operating Manual of your chosen User Interface in full. 6.4 CASCADING Cascading is the process of connecting two SMARTneo-2G Control Boxes together in order to control extra Actuators. Consult the SMARTneo-2G Cascading Manual for further instructions and safety advice. -
Page 18: Configuration Example
Position Reset Procedure for Table Systems controlled by a Hand Control with an UP Key and DOWN Key (Comfort or Basic Hand Controls). If your SMARTneo-2G is operated by a different User Interface, consult that product’s operating Manual for instructions on performing a Position Reset Procedure. -
Page 19: Operation
SMARTNEO - OPERATING MANUAL // PAGE 19 7 OPERATION Risk of minor or moderate injury through uncontrolled movement CAUTION The table may not always stop exactly at the expected position. Failure to anticipate the table's movements may lead to minor or moderate injury through crushing. •... -
Page 20: Saving A Memory Position
SMARTNEO - OPERATING MANUAL // PAGE 20 INFO The Table Top will move up or down until the UP or DOWN Key is released, or if a pre-de- fined stopping point has been reached. To move the Table Top UP: Press and hold the UP Key until the desired height has been reached To move the Table Top DOWN: Press and hold the DOWN Key until the desired height has been reached... -
Page 21: Adjusting The Table To A Memory Position
UP or DOWN Key until the table moves again. Version B (Auto-Movement with double-click function): INFO The double-click function is available only for SMARTneo-2G Control Boxes sold in US markets. It is an option configured by LOGICDATA only on request. INFO If you press any Key while the table moves to a Memory Position, the Table Top will stop moving immediately. - Page 22 SMARTNEO - OPERATING MANUAL // PAGE 22 Version B (Auto-Movement with double-click function): INFO The double-click function is available only for SMARTneo-2G Control Boxes sold in US markets. It is an option configured by LOGICDATA only on request. INFO If you press any Key while the table moves to a Memory Position, the Table Top will stop moving immediately.
-
Page 23: Software-Dependent Functions
Reconnect the Control Box. Hold the Keys until the Control Box clicks twice per second. Release the UP and DOWN Keys The SMARTneo-2G has now been reset to its factory settings. It is now in the same state as it was during the first start-up. -
Page 24: Container Stop And Shelf Stop Positions
The display shows S 0. SAVE Press the SAVE Key. The SMARTneo-2G has now been reset to its factory settings. It is now in the same state as it was during the first start-up. 8.4 CONTAINER STOP AND SHELF STOP POSITIONS These features can limit the movement area of the Table Top (if e.g. -
Page 25: Correcting The Height Display
SMARTNEO - OPERATING MANUAL // PAGE 25 2. Press and hold the SAVE Key for 10 seconds SAVE ▸ The Control Box will click once. ▸ The Container Stop / Shelf Stop Position is deleted 8.5 CORRECTING THE HEIGHT DISPLAY This feature changes the height displayed on the Hand Control. -
Page 26: Actuator Setup
M1 or M2 Plug Port and when an Actuator has been removed or replaced. If an Actuator has been removed from Plug Port 1 or 2, the SMARTneo-2G will click three times. If a Comfort Hand Control is installed, the error code E36, E37, or E38 will be shown, depending on which Actuator was removed. -
Page 27: Auto-Detect: Changing The Number Of Slimdrives
The SMARTneo-2G can automatically detect how many SLIMdrives are connected to the system. This means that you can change the number of SLIMdrives the SMARTneo-2G must control without changing the pa- rameterization of the control box. To change the number of SLIMdrives to be controlled: 1. -
Page 28: Troubleshooting
Ensure that the User Interface is properly connected nected properly to the Control Box. 10.2 CLICK CODES As soon as the SMARTneo-2G is connected, the control box uses installed relays to inform the user about system status and the reason for the last shutdown: Code Message Normal operation: The system is working normally. -
Page 29: Error Messages On The Display Of The Hand Control
Reconnect the system, then operate as normal. Check that nothing is blocking the table's range of movement. Overcurrent Motor M1 Remove excess load from the table. Contact LOGICDATA for further information. Check that nothing is blocking the table's range of movement. - Page 30 Do not operate the table system if problems persist. Contact LOGICDATA for further NOTICE information. The Middle Switch is only fitted to certain versions of the SMARTneo-2G. Contact NOTICE LOGICDATA if you are unsure which version you have.
-
Page 31: Additional Information
SMARTNEO - OPERATING MANUAL // PAGE 31 11 ADDITIONAL INFORMATION Technical data for the SMARTneo-2G and all other products in the Table System can be found in each product's corresponding datasheet. 11.1 DISASSEMBLY To disassemble the Table System, first disconnect the SMARTneo-2G from the mains. Then, follow the as- sembly instructions in reverse order. -
Page 32: Disposal
Take care not to spill liquids onto or around the SMARTneo-2G 11.4 DISPOSAL The SMARTneo-2G is an electrical and electronic device that must be disposed of separately from household trash in accordance with the WEEE directive 2012/19/EU. Products of this type are labelled with the symbol shown on the left. - Page 33 LOGICDATA LOGICDATA North America, Inc. Electronic & Software Entwicklungs GmbH Broadmoor Ave SE, Suite D Wirtschaftspark 18 Grand Rapids MI 8530 Deutschlandsberg Austria Phone: +43 (0)3462 5198 0 Phone: +1 (616) 328 8841 Fax: +43 (0)3462 5198 1030 Email: office.na@logicdata.net Email: office.at@logicdata.net...
