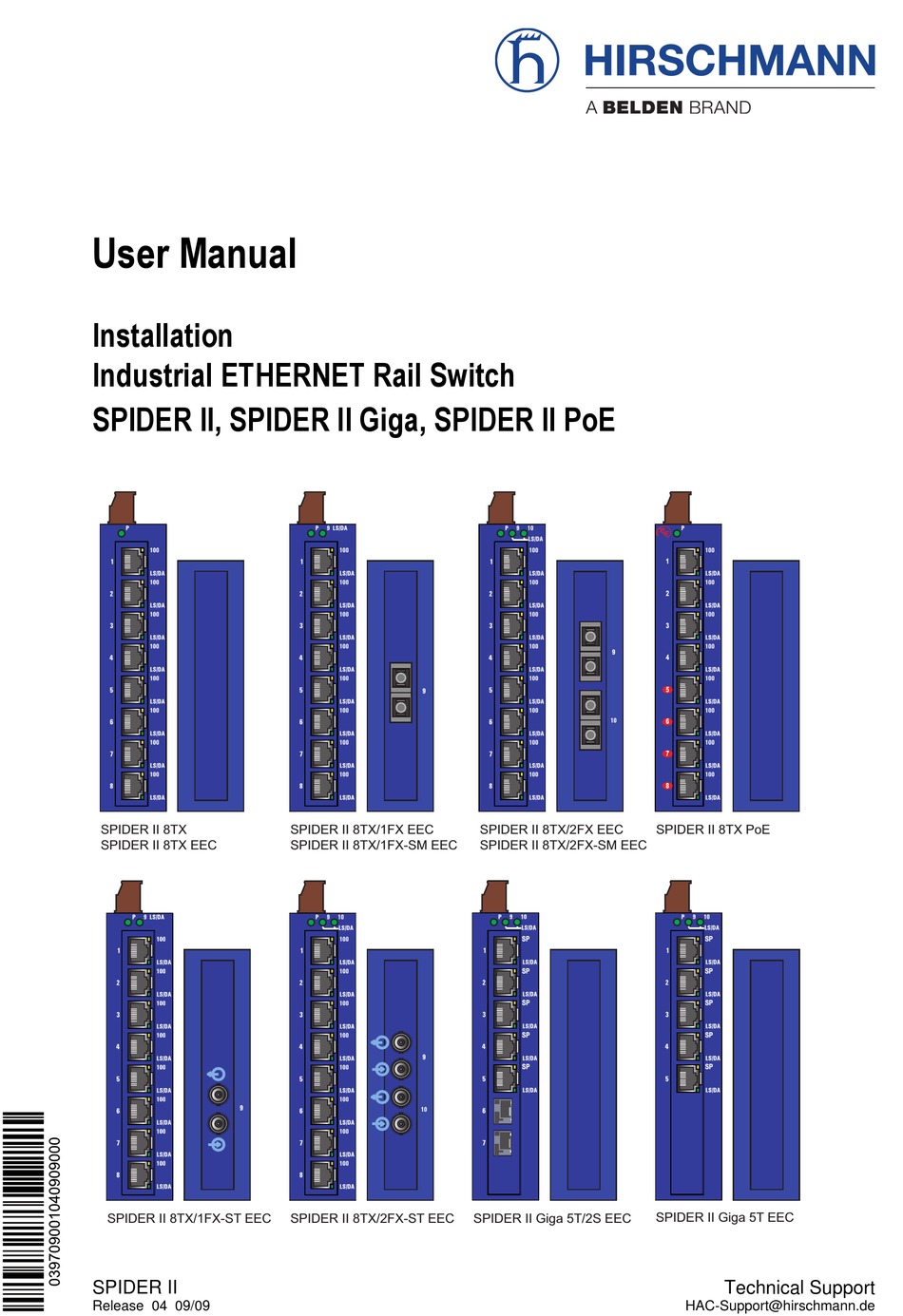

User Manual
Installation
Industrial ETHERNET Rail Switch
SPIDER II, SPIDER II Giga, SPIDER II PoE

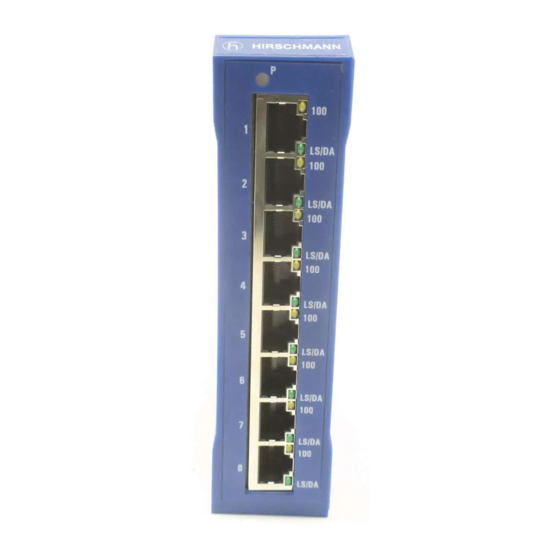

SPIDER II 8TX
SPIDER II 8TX EEC
SPIDER II 8TX/1FX-ST EEC
SPIDER II
Release 04 09/09
SPIDER II 8TX/1FX EEC
SPIDER II 8TX/1FX-SM EEC
SPIDER II 8TX/2FX-ST EEC
SPIDER II 8TX/2FX EEC
SPIDER II 8TX/2FX-SM EEC
SP
SP
SP
SP
SP
SPIDER II Giga 5T/2S EEC
P
1
2
3
4
5
6
7
8
SPIDER II 8TX PoE
SP
SP
SP
SP
SP
SPIDER II Giga 5T EEC
Technical Support
HAC-Support@hirschmann.de
Advertisement
Table of Contents
Related Manuals for Belden Hirschmann SPIDER II 8TX
Summary of Contents for Belden Hirschmann SPIDER II 8TX
- Page 1 User Manual Installation Industrial ETHERNET Rail Switch SPIDER II, SPIDER II Giga, SPIDER II PoE SPIDER II 8TX SPIDER II 8TX/1FX EEC SPIDER II 8TX/2FX EEC SPIDER II 8TX PoE SPIDER II 8TX EEC SPIDER II 8TX/1FX-SM EEC SPIDER II 8TX/2FX-SM EEC SPIDER II Giga 5T EEC SPIDER II 8TX/1FX-ST EEC SPIDER II 8TX/2FX-ST EEC...
- Page 2 The naming of copyrighted trademarks in this manual, even when not specially indicated, should not be taken to mean that these names may be considered as free in the sense of the trademark and tradename protection law and hence that they may be freely used by anyone. ©...
-
Page 3: Table Of Contents
Content Safety instructions Legend Device description Description of the device variants Assembly and start-up Installing the device 2.1.1 Unpacking and checking 2.1.2 Installing the SFP modules (if present) 2.1.3 Connecting the terminal block for the supply voltage and the grounding 2.1.4 Mounting the device on the DIN rail 2.1.5 Dimensions 2.1.6 Installing the terminal block, start-up procedure... -
Page 4: Safety Instructions
Safety instructions Notes on safety This manual contains instructions to be observed for ensuring your per- sonal safety and for preventing damage. The warnings appear next to a warning triangle with a different heading depending on the degree of dan- ger posed: Danger! Means that death, serious physical injury or significant damage... - Page 5 If you are operating the module with an external voltage, only supply the system with a safety extra-low voltage in compliance with IEC/EN 60950-1. Connect the ground connector before you set up the other connec- tions. When removing the connections, you remove the ground con- nector last.
- Page 6 Warning! Never insert sharp objects (small screwdrivers, wires, etc.) into the inside of the product. There is the risk of an electric shock. Environment The device may only be operated at the specified maximum ambient tem- perature (temperature of the ambient air at a distance of up to 5 cm (1.97 in) from the device) and relative air humidity.
- Page 7 Relevant for SPIDER II 8 TX/...FX... EEC and SPIDER II Giga 5T/2S EEC: Note: LED or LASER components in compliance with IEC 60825-1 (2001): CLASS 1 LASER PRODUCT CLASS 1 LED PRODUCT National and international safety regulations Make sure that the electrical installation meets local or nationally applicable safety regulations.
-
Page 8: Legend
Warning This is a class A device. This device can cause interference in living areas, and in this case the operator may be required to take appropriate measures. The assembly guidelines provided in these instructions must be strictly adhered to in order to observe the EMC threshold values. FCC note: Appropriate testing has established that this device fulfills the require- ments of a class A digital device in line with part 15 of the FCC regula-... -
Page 9: Device Description
Device description The SPIDER II devices are designed for the special requirements of industri- al automation. They meet the relevant industry standards, provide very high operational reliability, even under extreme conditions, and also long-term re- liability and flexibility. The devices allow you to set up switched industrial ETHERNET networks that conform to the IEEE 802.3 and 802.3u standards using copper wires or optical fibers in a line structure. -
Page 10: Description Of The Device Variants
Description of the device variants The devices differ with regard to the number of interfaces and the media type for connecting segments. The table below shows the number and type of the ports for each product variant. The abbreviations F/O (optical fiber) and TP (twisted pair) indicate the media type. - Page 11 SPIDER II 8TX, SPIDER II 8TX/1FX EEC, SPIDER II 8TX/2FX EEC, SPIDER II 8TX/1FX-ST EEC SPIDER II 8TX/2FX-ST EEC SPIDER II 8TX EEC SPIDER II 8TX/1FX-SM EEC SPIDER II 8TX/2FX-SM EEC Figure 1: Overview of the device variants without gigabit ports (SPIDER II 8TX...) 1 –...
- Page 12 SPIDER II Giga 5T/2S EEC SPIDER II Giga 5T EEC Figure 2: Overview of the device variants with gigabit ports (SPIDER II GIGA...) 1 – Ports 6 and 7: 2 x SX/LX, SFP slot, 1000 Mbit/s 2 – Ports 1 to 5: ports in compliance with 10/100/1000BASE-T(X) (RJ45 connections) 3 –...
- Page 13 Device variants SPIDER II 8TX PoE support Power over Ethernet (PoE) in accordance with IEEE 802.3af. They allow the connection and remote supply of, for example, IP telephones (Voice over IP), webcams, sensors, printer servers and WLAN access points via 10BASE-T/100BASE-TX. With PoE, these terminal devices are powered by the twisted-pair cable.
-
Page 14: Assembly And Start-Up
Assembly and start-up The devices have been developed for practical application in a harsh indus- trial environment. The installation process is correspondingly simple. On delivery, the device is ready for operation. The following steps should be performed to install and configure a switch: Unpacking and checking Installing the SFP modules Connecting the terminal block for the supply voltage and the grounding... -
Page 15: Installing The Sfp Modules (If Present)
2.1.2 Installing the SFP modules (if present) Figure 4: 1 - Fast EHTERNET fiber optic SFP module 2 - Gigabit ETHERNET fiber optic SFP module To attach an SFP module, first remove the protective cap over the socket. Push the SFP module with the lock closed into the socket until it latches audibly in place. -
Page 16: Mounting The Device On The Din Rail
2.1.4 Mounting the device on the DIN rail Caution! Do not open the housing. Note: The device is grounded by means of a 3-pin terminal block. Note: The shielding ground of the connectable twisted pair lines is connected to the ground connection as a conductor. Mount the device on a 35 mm DIN rail in accordance with DIN EN 60175. -
Page 17: Dimensions
2.1.5 Dimensions 110,8 Figure 6: Dimensions of the SPIDER II 2.1.6 Installing the terminal block, start-up procedure Warning! Only connect a supply voltage that corresponds to the type plate of your device. Mount the terminal block for the supply voltage and the ground connec- tion. - Page 18 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode 10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode Figure Function One line pair One line pair 4,5,7,8 Not used Table 3: Pin assignment of a TP/TX interface in MDI-X mode, RJ45 socket 10/100 Mbit/s twisted pair connection PoE (SPIDER II 8TX PoE) These connections are RJ45 sockets.
- Page 19 10/100/1000 Mbit/s twisted pair connection (SPIDER II Giga 5T... EEC) These connections are RJ45 sockets. 10/100/1000 Mbit/s TP ports enable the connection of terminal devices or independent network segments according to the IEEE 802.3 10BASE-T/ 100BASE-TX/1000BASE-T standard. These ports support: Autonegotiation Autopolarity Autocrossing...
-
Page 20: Display Elements
1 Gbit/s F/O connection (SPIDER II Giga 5T/2S EEC) These ports are SFP slots. 1 Gbit/s F/O ports enable the connection of terminal devices or indepen- dent network segments according to the IEEE 802.3 1000BASE-SX/ 1000BASE-LX standard. These ports support: Autonegotiation Full duplex mode Note: Make sure that the LH ports are only connected with LH ports, SX... -
Page 21: Disassembly
Figure 8: Port status LEDs for F/O ports on the top edge of the front of the device 1 – No port status LEDs for devices without F/O ports 2 – One port status LED (LS/DA) for devices with one F/O port 3 –... -
Page 22: Disassembling The Sfp Modules
Figure 10: Removal from the DIN rail SPIDER II 8TX PoE To remove the device from the DIN rail, press the device downwards and pull it out from under the DIN rail. Figure 11: Removal from the DIN rail 2.3.2 Disassembling the SFP modules Pull the module out of the socket by means of the opened lock. -
Page 23: Technical Data
Technical data General technical data Dimensions SPIDER II 8TX 35 mm x 154 mm x 121 mm W x H x D SPIDER II 8TX EEC incl. terminal block SPIDER II 8TX/1FX EEC SPIDER II 8TX/1FX-SM EEC SPIDER II 8TX/2FX EEC SPIDER II 8TX/2FX-SM EEC SPIDER II Giga 5T EEC SPIDER II Giga 5T/2S EEC... - Page 24 EMC and immunity EMC interference immunity IEC/EN 61000-4-2 Electrostatic discharge Contact discharge +/- 4 kV Air discharge +/- 8 kV IEC/EN 61000-4-3 Electromagnetic field 80 - 2,700 MHz 20 V/m IEC/EN 61000-4-4 Fast transients (burst) DC power line +/- 2 kV (2.5 kHz) Data line +/- 4 kV (2.5 kHz) IEC/EN 61000-4-5 Voltage surges...
- Page 25 Product Wave Fiber System at- Expansion Fiber data code type length tenuation M-SFP- -SX/LC... MM 850 nm 50/125 µm 0-7.5 dB 0-550 m 3.0 dB/km, 400 MHz*km -LX/LC... MM 1310 nm 50/125 µm 0-11 dB 0-550 m 1.0 dB/km, 800 MHz*km -SX/LC...
- Page 26 Device Order number Rail Switch SPIDER II 8 TX/2FX EEC 943 958-211 Rail Switch SPIDER II 8 TX/1FX-SM EEC 943 958-131 Rail Switch SPIDER II 8 TX/2FX-SM EEC 943 958-231 Rail Switch SPIDER II 8 TX/1FX-ST EEC 943 958-121 Rail Switch SPIDER II 8 TX/2FX-ST EEC 943 958-221 Rail Switch SPIDER II Giga 5T EEC 943 962-002...
- Page 27 SPIDER II Release 04 09/09...
-
Page 28: Further Support
Further support Technical questions and training courses In the event of technical queries, please contact your local Hirschmann distributor or Hirschmann office. You can find the addresses of our distributors on the Internet: www.hirschmann-ac.com. Our support line is also at your disposal: Tel.
