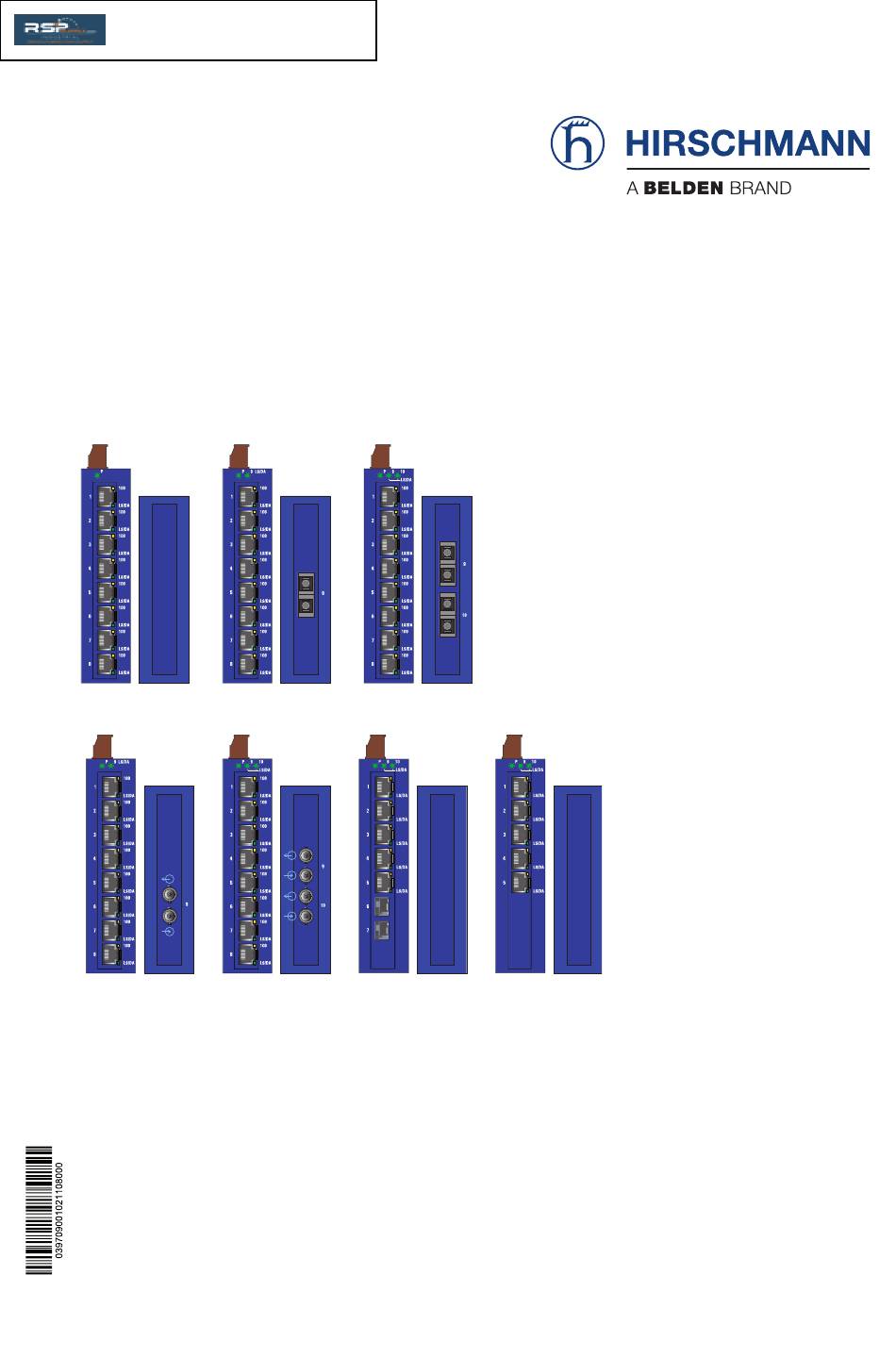

Description and operating instructions
Industrial ETHERNET
SPIDER II 8TX SPIDER II 8TX/1FX EEC
SPIDER II 8TX EEC SPIDER II 8TX/1FX-SM EEC
SPIDER II 8TX/1FX-ST EEC SPIDER II 8TX/2FX-ST EEC
Hirschmann. Simply a good Connection.
Rail Switch
SPIDER II 8TX/2FX EEC
SPIDER II 8TX/2FX-SM EEC
SP
SP
SP
SP
SP
SPIDER II Giga 5T EEC
SPIDER II Giga 5T/2S EEC
SPIDER II
SPIDER II Giga
The Rail Switches
– SPIDER II 8TX
– SPIDER II 8TX EEC
– SPIDER II 8TX/1FX EEC
– SPIDER II 8TX/1FX-SM EEC
– SPIDER II 8TX/2FX EEC
– SPIDER II 8TX/2FX-SM EEC
– SPIDER II 8TX/1FX-ST EEC
– SPIDER II 8TX/2FX-ST EEC
– SPIDER II Giga 5T EEC
– SPIDER II Giga 5T/2S EEC
in short SPIDER II, are switches especially
designed for use in industrial environments.
They support ETHERNET 10 Mbit/s and Fast
ETHERNET 100 Mbit/s.
The SPIDER II Giga... devices additionally
support Gigabit ETHERNET 1000 Mbit/s.
The devices support switched ETHERNET
networks in accordance with IEEE standard
IEEE 802.3 using copper and fiber optic
technology. They are plugged onto the stan-
dard bar.
Depending on the product type, the
SP
SPIDER II 8TX... devices have eight TP ports
(10/100 Mbit/s, RJ45 socket) and up to two
SP
100 Mbit/s fiber optic ports (100BASE-FX,
SP
SC or ST connector):
SP Depending on the product type, the
SPIDER II Giga... devices have five TP ports
SP
(10/100/1000 Mbit/s, RJ45 socket) and up to
two 1000 Mbit/s fiber optic ports
(1000BASE-X, SFP slot).
It is possible to connect further data
terminal equipments or other TP network
segments to the TP ports using twisted pair
cabling.
The TP ports support autonegotiation, auto-
polarity and autocrossing.
One further DTE or one optical network
component each can be connected to the
fiber optic ports.
The fiber optic ports support full duplex
(FDX).
