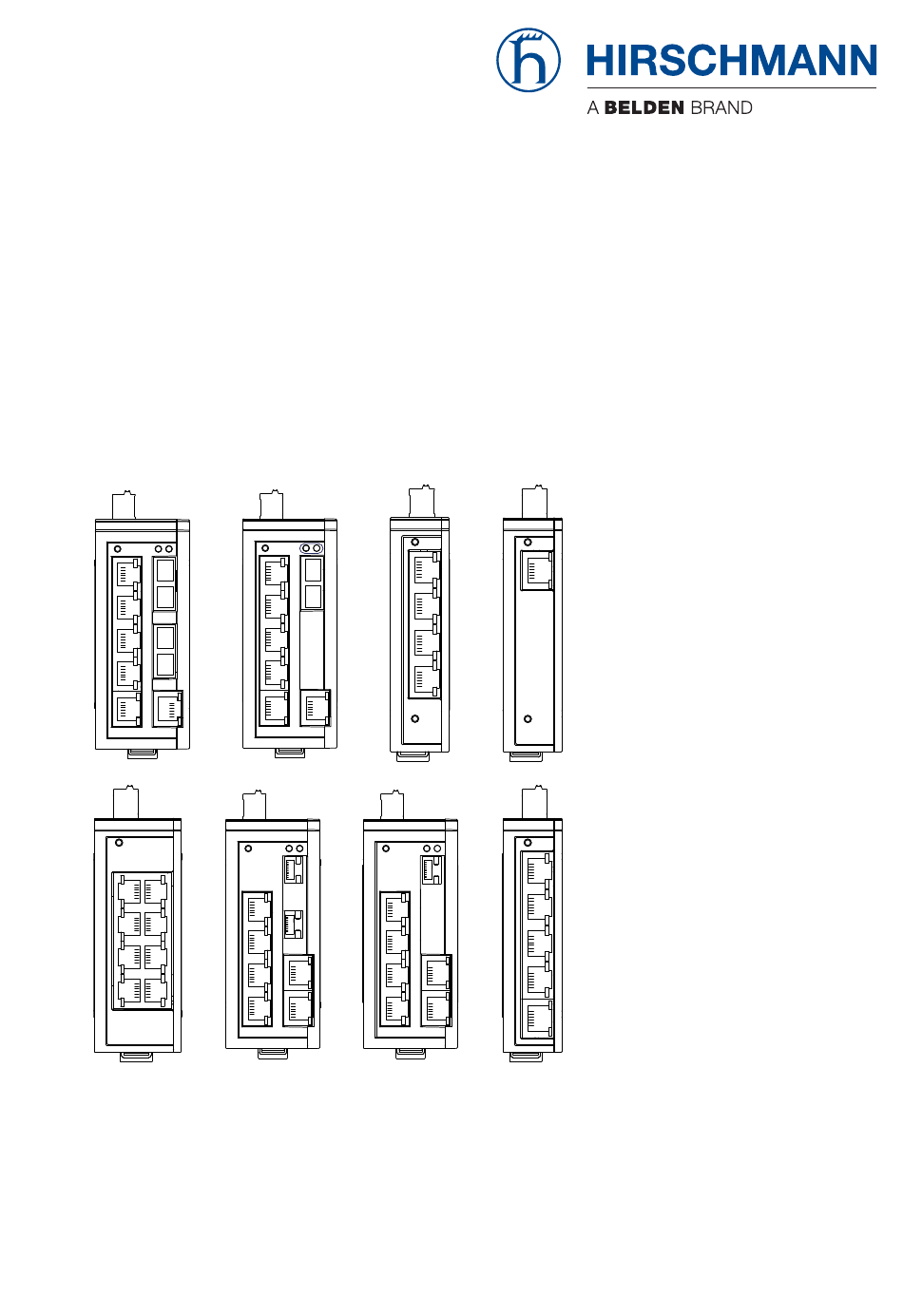

Page 1: User Manual
User Manual Installation Industrial Ethernet Rail Switch SPIDER Standard Line Installation SPIDER-SL Technical support Release 06 01/2020 https://hirschmann-support.belden.com... - Page 2 The naming of copyrighted trademarks in this manual, even when not specially indicated, should not be taken to mean that these names may be considered as free in the sense of the trademark and tradename protection law and hence that they may be freely used by anyone. ©...
-
Page 3: Table Of Contents
Contents Safety instructions About this Manual Legend Description General device description Device name and product code Device view 1.3.1 Front view Power supply 1.4.1 Supply voltage with the characteristic value HH 1.4.2 Supply voltage with characteristic value HK Ethernet ports 1.5.1 10/100/1000 Mbit/s twisted pair port 1.5.2 10/100 Mbit/s twisted pair port 1.5.3 100/1000 Mbit/s F/O port... - Page 4 2.4.2 Connecting the 3-pin voltage terminal with spring (device variants with the characteristic value HK) Operating the device Connecting data cables Monitoring the ambient air temperature Maintenance and service Disassembly Removing an SFP transceiver (optional) Removing the device Technical data Further support Installation SPIDER-SL Release 06 01/2020...
-
Page 5: Safety Instructions
Safety instructions General safety instructions You operate this device with electricity. Improper usage of the device entails the risk of physical injury or significant property damage. The proper and safe operation of this device depends on proper handling during transportation, proper storage and installation, and careful operation and maintenance procedures. -
Page 6: Grounding The Device
Qualification requirements for personnel Only allow qualified personnel to work on the device. Qualified personnel have the following characteristics: Qualified personnel are properly trained. Training as well as practical knowledge and experience make up their qualifications. This is the prerequisite for grounding and labeling circuits, devices, and systems in accordance with current standards in safety technology. -
Page 7: Supply Voltage
Requirements for connecting electrical wires Before connecting the electrical wires, always verify that the requirements listed are complied with. General requirements for connecting electrical wires The following requirements apply without restrictions: The electrical wires are voltage-free. The cables used are permitted for the temperature range of the application case. ... - Page 8 CE marking The labeled devices comply with the regulations contained in the following European directive(s): 2011/65/EU and 2015/863/EU (RoHS) Directive of the European Parliament and of the Council on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
- Page 9 Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information SPIDER-SL U.S. Contact Information Belden – St. Louis 1 N. Brentwood Blvd. 15th Floor St. Louis, Missouri 63105, United States Phone: 314.854.8000 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference;...
-
Page 10: About This Manual
About this Manual The “Installation” user manual contains a device description, safety instructions, a description of the display, and the other information that you need to install the device. Documentation mentioned in the “User Manual Installation” that is not supplied with your device as a printout can be found as PDF files for downloading on the Internet at: https://www.doc.hirschmann.com Installation SPIDER-SL... -
Page 11: Legend
Legend The symbols used in this manual have the following meanings: Listing Work step Subheading Installation SPIDER-SL Release 06 01/2020... -
Page 12: Description
You have numerous options of combining the device characteristics. You can determine the possible combinations using the configurator which is available in the Belden Online Catalog https://catalog.belden.com on the web page of the device. -
Page 13: Device Name And Product Code
Device name and product code The device name corresponds to the product code. The product code is made up of characteristics with defined positions. The characteristic values stand for specific product properties. Item Characteristic Character Description istic value 1 ... 9 Product SPIDER- SPIDER Standard Line... -
Page 14: Device View
a. For device variant SPIDER SL-40-06T1O6O699SZ9HHHH, the maximum permitted ambient air temperature has to be reduced to 122 °F (50 °C). Device view 1.3.1 Front view 11 11 11 11 SPIDER-SL-20-08T1... SPIDER-SL-20-06T1... SPIDER-SL-20-04T1... SPIDER-SL-20-01T1... Front view using example of device variants SPIDER-SL-20... SPIDER-SL-20-08T1... - Page 15 LED display elements for port status Rail lock slide for DIN rail mounting 11 11 11 11 11 11 SPIDER-SL-40-08T1... SPIDER-SL-40-05T1... SPIDER-SL-40-06T1... SPIDER-SL-40-06T1... Front view using example of device variants SPIDER-SL-40... SPIDER-SL-40-08T1... LED display elements for device status 3-pin, pluggable terminal block for power supply 3 ...
-
Page 16: Power Supply
Power supply 1.4.1 Supply voltage with the characteristic value HH The following options for power supply are available: 3-pin terminal block You will find information on connecting the supply voltage here: See “Connecting the 3-pin terminal block (device variants with characteristic value HH)”... -
Page 17: 10/100 Mbit/S Twisted Pair Port
1.5.2 10/100 Mbit/s twisted pair port This port is an RJ45 socket. The 10/100 Mbit/s twisted pair port allows you to connect network components according to the IEEE 802.3 10BASE-T/100BASE-TX standard. This port supports: Autonegotiation Autopolarity Autocrossing ... -
Page 18: Pin Assignments
Pin assignments RJ45 10/100 Mbit/s 1000 Mbit/s MDI mode BI_DA+ TX− BI_DA− BI_DB+ — BI_DC+ — BI_DC− RX− BI_DB− — BI_DD+ — BI_DD− MDI-X mode BI_DB+ RX− BI_DB− BI_DA+ — BI_DD+ — BI_DD− TX− BI_DA− — BI_DC+ — BI_DC− Display elements After the supply voltage is switched on, the device performs a self-test. -
Page 19: Port Status
Color Activity Meaning green lights up Supply voltage is on Device is ready for operation none Supply voltage is too low Device is not ready for operation 1.7.2 Port status These LEDs provide port-related information. Color Activity Meaning (link status/data) green lights up Device detects a valid link flashing... -
Page 20: Installation
Installation The devices have been developed for practical application in a harsh industrial environment. On delivery, the device is ready for operation. Perform the following steps to install the device: Checking the package contents Mounting the device Installing an SFP transceiver (optional) ... -
Page 21: Mounting The Device
Mounting the device You have the following options for mounting your device: Installing the device onto the DIN rail Mounting on a flat surface 2.2.1 Installing the device onto the DIN rail Prerequisite: The device is for mounting on a 35 mm DIN rail in accordance with DIN EN 60715. -
Page 22: Mounting On A Flat Surface
2.2.2 Mounting on a flat surface inch 57,5 2.26 1.65 24,25 0.95 35,75 1.41 inch 87,5 3.44 2.83 54,25 2.14 65,75 2.59 Proceed as follows: Attach the wall mounting plate to a flat surface of the wall using screws. You will find the dimensions necessary for mounting the device in the illustration. -
Page 23: Installing An Sfp Transceiver (Optional)
Installing an SFP transceiver (optional) Prerequisites: Exclusively use Hirschmann SFP transceivers. See “Accessories” on page 36. Figure 1: Installing SFP transceivers: Installation sequence Proceed as follows: Take the SFP transceiver out of the transport packaging (1). Remove the protection cap from the SFP transceiver (2). ... -
Page 24: Wiring The Terminal Block For The Supply Voltage And The Grounding
Wiring the terminal block for the supply voltage and the grounding WARNING ELECTRIC SHOCK Exclusively connect a supply voltage that corresponds to the type plate of your device. Never insert sharp objects (small screwdrivers, wires, etc.) into the connection terminals for the supply voltage, and do not touch the terminals. Failure to follow this instruction can result in death, serious injury, or equipment damage. -
Page 25: Connecting The 3-Pin Terminal Block
2.4.1 Connecting the 3-pin terminal block (device variants with characteristic value HH) Figure 2: 3-pin terminal block, characteristic value HH Type of the voltages Specification of the supply Pin assignment that can be voltage connected DC voltage Rated voltage range 24 V DC Plus terminal of the supply 12 V DC ... -
Page 26: Connecting The 3-Pin Voltage Terminal With Spring (Device Variants With The Characteristic Value Hk)
2.4.2 Connecting the 3-pin voltage terminal with spring (device variants with the characteristic value HK) Figure 3: 3-pin voltage terminal with spring, characteristic value HK Type of the voltages Specification of the supply Pin assignment that can be voltage connected DC voltage Rated voltage range 24 V DC... -
Page 27: Operating The Device
Connect the wires according to the pin assignment on the device with the clamps. Mount the terminal block for the supply voltage and the ground by plugging them in. Operating the device By connecting the supply voltage via the terminal block, you start the operation of the device. -
Page 28: Monitoring The Ambient Air Temperature
Monitoring the ambient air temperature Operate the device below the specified maximum ambient air temperature exclusively. See “General technical data” on page 32. The ambient air temperature is the temperature of the air at a distance of 2 in (5 cm) from the device. It depends on the installation conditions of the device, for example the distance from other devices or other objects, and the output of neighboring devices. -
Page 29: Maintenance And Service
Maintenance and service When designing this device, Hirschmann largely avoided using high-wear parts. The parts subject to wear and tear are dimensioned to last longer than the lifetime of the product when it is operated normally. Operate this device according to the specifications. Depending on the degree of pollution in the operating environment, check at regular intervals that the ventilation slots in the device are not obstructed. -
Page 30: Disassembly
Disassembly Removing an SFP transceiver (optional) Figure 4: De-installing SFP transceivers: De-installation sequence Proceed as follows: Open the locking mechanism of the SFP transceiver (1). Pull the SFP transceiver out of the slot via the open locking mechanism (2). ... -
Page 31: Removing The Device
Removing the device Proceed as follows: Disconnect the data cables. Disable the supply voltage. Remove the terminal connector from the device. Use a screwdriver to pull the rail lock slide downwards. Pull the device downwards from the DIN rail module. Installation SPIDER-SL Release 06 01/2020... -
Page 32: Technical Data
Technical data General technical data Dimensions SPIDER Standard Line See “Dimension drawings” on W × H × D page 33. Power supply 1 voltage input 3-pin terminal block Safety extra-low voltage (SELV) Rated voltage range 12 V DC ... 24 V DC Class 2 Voltage range incl. - Page 33 Dimension drawings 14,3 14,3 13,8 14,3 inch 25,5 25,5 37,8 SPIDER-SL-20-06T1... SPIDER-SL-20-08T1... SPIDER-SL-20-01T1... SPIDER-SL-20-04T1... Figure 5: Dimensions of device variants SPIDER-SL-20... 13,8 13,8 14,3 14,3 inch 25,5 37,8 SPIDER-SL-40-06T1... SPIDER-SL-40-06T1... SPIDER-SL-40-08T1... SPIDER-SL-40-05T1... Figure 6: Dimensions of device variants SPIDER-SL-40... Installation SPIDER-SL Release 06 01/2020...
- Page 34 EMC and immunity Note: Use shielded data cables for gigabit transmission via copper cables. Use shielded data cables for all transmission rates to meet the requirements according to EN 50121-4 and marine applications. EMC interference emission Radiated emission FCC 47 CFR Part 15 Class A EN 55032 Class A...
-
Page 35: Scope Of Delivery
Network range 10/100/1000 Mbit/s twisted pair port Length of a twisted pair segment max. 328 ft (100 m) (for Cat5e cable) Table 4: Network range: 10/100/1000 Mbit/s twisted pair port Power consumption/power output at 24 V DC Device name Max. - Page 36 Device Order number SPIDER-SL-40-06T1O6O699SZ9HHHH 942-132-015 SPIDER-SL-40-08T1999999SYZ9HHHH 942-132-004 Accessories Note that products recommended as accessories may have different characteristics to those of the device, which may limit the application range of the overall system. For example, if you add an accessory with IP20 to a device with IP65, the degree of protection of the overall system is reduced to IP20.
- Page 37 Gigabit Ethernet SFP transceiver Order number M-SFP-TX/RJ45 943 977-001 M-SFP-SX/LC 943 014-001 M-SFP-SX/LC EEC 943 896-001 M-SFP-MX/LC EEC 942 108-001 M-SFP-LX/LC 943 015-001 M-SFP-LX/LC EEC 943 897-001 M-SFP-LX+/LC 942 023-001 M-SFP-LX+/ LC EEC 942 024-001 M-SFP-LH/LC 943 042-001 M-SFP-LH/LC EEC 943 898-001 M-SFP-LH+/LC 943 049-001...
-
Page 38: A Further Support
A list of local telephone numbers and email addresses for technical support directly from Hirschmann is available at https:// hirschmann-support.belden.com. This site also includes a free of charge knowledge base and a software download section. Hirschmann Competence Center The Hirschmann Competence Center is ahead of its competitors on three counts with its complete range of innovative services: ... - Page 39 Installation SPIDER-SL Release 06 01/2020...
