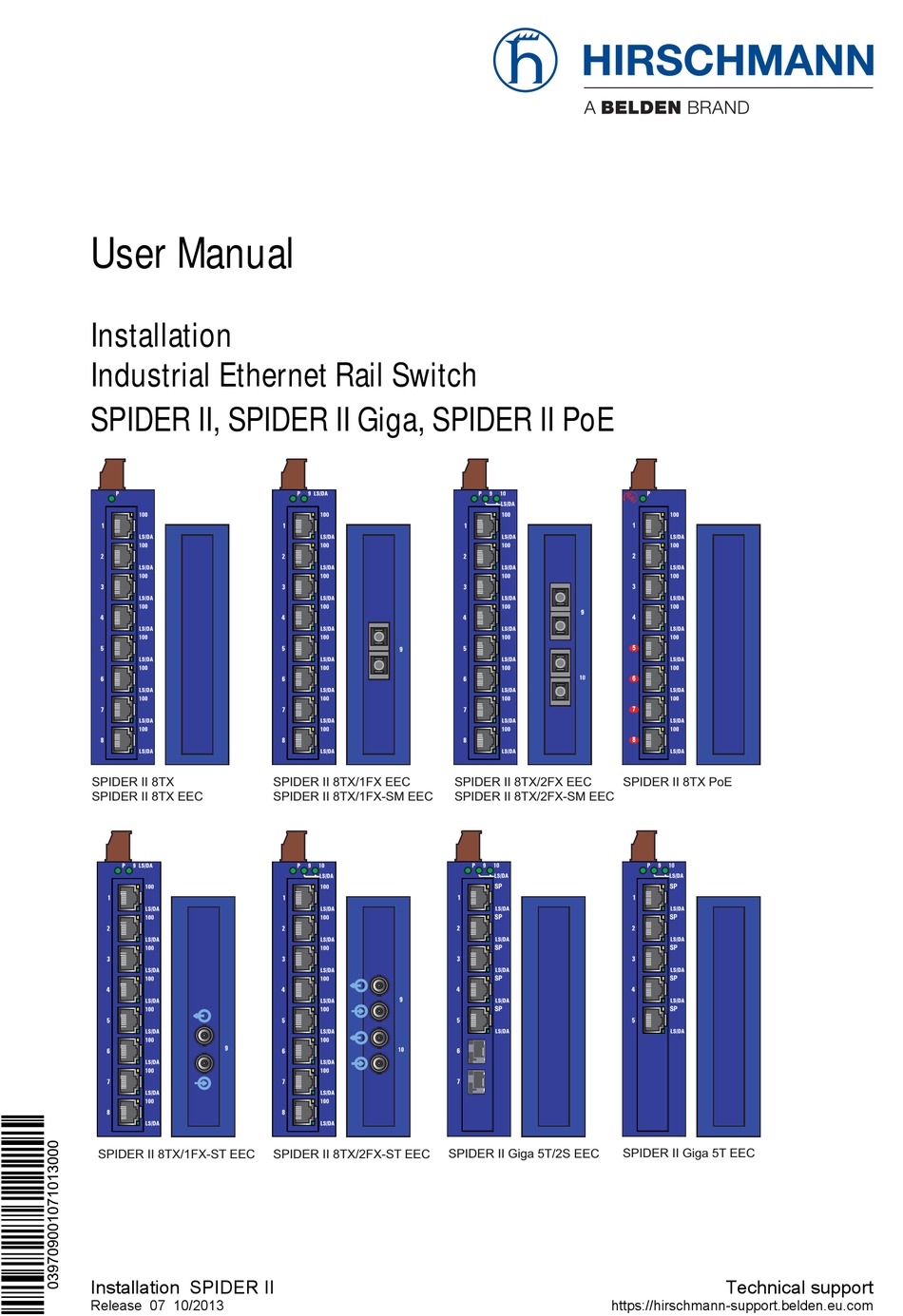

- Page 1 SPIDER II 8TX PoE SPIDER II 8TX EEC SPIDER II 8TX/1FX-SM EEC SPIDER II 8TX/2FX-SM EEC SPIDER II Giga 5T EEC SPIDER II Giga 5T/2S EEC SPIDER II 8TX/1FX-ST EEC SPIDER II 8TX/2FX-ST EEC Installation SPIDER II Technical support Release 07 10/2013 https://hirschmann-support.belden.eu.com...
- Page 2 The naming of copyrighted trademarks in this manual, even when not specially indicated, should not be taken to mean that these names may be considered as free in the sense of the trademark and tradename protection law and hence that they may be freely used by anyone. ©...
-
Page 3: Table Of Contents
Contents Safety instructions About this Manual Legend Description General device description Description of the device variants Ethernet ports 1.3.1 10/100 Mbit/s twisted pair port 1.3.2 10/100 Mbit/s PoE port 1.3.3 10/100/1000 Mbit/s twisted pair port 1.3.4 100 Mbit/s F/O port 1.3.5 1000 Mbit/s F/O port Display elements 1.4.1 Device state... - Page 4 Disassembly Removing the device from the DIN rail 4.1.1 SPIDER II without PoE 4.1.2 SPIDER II 8TX PoE Removing the SFP transceivers Technical data Further Support Installation SPIDER II Release 07 10/2013...
-
Page 5: Safety Instructions
Safety instructions Correct usage Only use the device for those purposes specified in the catalog and in the technical description. Only operate the device with external devices and components that are recommended and permitted by the manufacturer. The proper and safe operation of this product depends on proper handling during transport, proper storage, assembly and installation, and conscientious operation and maintenance procedures. - Page 6 Shielding ground Beware of possible short circuits when connecting a cable section with conductive shielding braiding. Housing CAUTION ELECTRIC SHOCK Solely connect a supply voltage that corresponds to the type plate of your device. Never insert sharp objects (small screwdrivers, wires, etc.) into the inside of the device.
- Page 7 Environment Only operate the device at the specified ambient temperature (temperature of the surrounding air at a distance of up to 5 cm from the device) and at the specified relative humidity. When you are selecting the installation location, make sure you observe the climatic threshold values specified in the technical data.
- Page 8 Relevant for SPIDER II 8 TX/...FX... EEC and SPIDER II Giga 5T/2S EEC: Note: LED or LASER components in compliance with IEC 60825-1 (2007): CLASS 1 LASER PRODUCT CLASS 1 LED PRODUCT National and international safety regulations Make sure that the electrical installation meets local or nationally applicable safety regulations.
- Page 9 E marking The labeled devices comply with the regulations contained in the following European directive(s): 72/245/EWG, 2009/19/EG Guideline for standardizing the regulations of member states relating to radio interference from motor vehicles. Certified devices are marked with an e1 type approval indicator. Rule No.
-
Page 10: About This Manual
About this Manual The “Installation User Manual” document contains a device description, safety instructions, a display description and other information that you require to install the device before starting with the configuration of the device. Legend The symbols used in this manual have the following meanings: ... -
Page 11: Description
Description General device description The SPIDER II devices are designed for the special requirements of industrial automation. They meet the relevant industry standards, provide very high operational reliability, even under extreme conditions, and also long-term reliability and flexibility. The devices allow you to set up switched industrial Ethernet networks that conform to the IEEE 802.3 standard. - Page 12 Variant RJ45 socket RJ-45 socket ST multimode RJ45 socket SFP slot for for 10/100 multimode singlemode socket for for 10/100/1000 1000 Mbit/s 10/100 Mbit/s Mbit/s PoE socket for socket for 100 Mbit/s F/O Mbit/s twisted- F/O port twisted-pair port 100 Mbit/s 100 Mbit/s F/O port pair port...
- Page 13 SPIDER II 8TX, SPIDER II 8TX/1FX EEC, SPIDER II 8TX/2FX EEC, SPIDER II 8TX/1FX-ST EEC SPIDER II 8TX/2FX-ST EEC SPIDER II 8TX EEC SPIDER II 8TX/1FX-SM EEC SPIDER II 8TX/2FX-SM EEC port 1 to RJ45 socket for 10/100 Mbit/s twisted-pair port LED display element 3-pin terminal block for supply voltage Port 9...
- Page 14 SPIDER II Giga 5T/2S EEC SPIDER II Giga 5T EEC Ports 6 to 7 SFP slot for 1000 Mbit/s F/O port Ports 1 to 5 RJ45 socket for 10/100/1000 Mbit/s twisted-pair port LED display element 3-pin terminal block for supply voltage Table 3: Overview of the device variants with gigabit ports (SPIDER II Giga...) The device variants Giga PRO support Quality of Service (QoS) according to...
- Page 15 SPIDER II 8TX PoE Ports 5 to 8 RJ-45 socket for 10/100 Mbit/s PoE port Ports 1 to 4 RJ45 socket for 10/100 Mbit/s twisted-pair port LED display element 3-pin terminal block for supply voltage Table 5: Overview of the device variants with PoE (SPIDER II 8TX PoE) Device variants SPIDER II 8TX PoE support Power over Ethernet (PoE) in accordance with IEEE 802.3af.
-
Page 16: Ethernet Ports
Ethernet ports 1.3.1 10/100 Mbit/s twisted pair port This port is an RJ45 socket. The 10/100 Mbit/s twisted pair port offers you the ability to connect network components according to the IEEE 802.3 10BASE-T/100BASE-TX standard. This port supports: Autonegotiation ... -
Page 17: 10/100 Mbit/S Poe Port
Function PoE voltage Receive path Minus terminal RD− Receive path Minus terminal Transmission path Plus terminal TD− Transmission path Plus terminal 4,5,7,8 — Table 7: Pin assignment of the 10/100 Mbit/s PoE port, RJ45 socket, MDI-X mode, phantom voltage 1.3.3 10/100/1000 Mbit/s twisted pair port This port is an RJ45 socket. -
Page 18: 1000 Mbit/S F/O Port
Note: Verify that you connect solely optical ports with the same optical transmission properties with each other. 1.3.5 1000 Mbit/s F/O port This port is an SFP slot. The 1000 Mbit/s F/O port offers you the ability to connect network components according to the IEEE 802.3 1000BASE-SX/1000BASE-LX standard. - Page 19 1 port status LED (LS/DA) for devices with 1 F/O port 2 port status LEDs (LS/DA) for devices with 2 F/O ports Table 9: Port status LEDs for F/O ports on the top edge of the front of the device The green and yellow LEDs at the individual TP ports display port-related information.
-
Page 20: Installation
Installation The devices have been developed for practical application in a harsh industrial environment. On delivery, the device is ready for operation. The following steps should be performed to install and configure a device: Unpacking the package and checking the content ... -
Page 21: Connecting The Terminal Block For The Supply Voltage And The Grounding
Connecting the terminal block for the supply voltage and the grounding CAUTION ELECTRIC SHOCK Solely connect a supply voltage that corresponds to the type plate of your device. Failure to follow these instructions can result in injury or equipment damage. A 3-pin terminal block is used for the grounding and for connecting the supply voltage. -
Page 22: Installing The Terminal Block, Start-Up Procedure
Note: The device is grounded by means of a 3-pin terminal block. Note: The shielding ground of the connectable twisted pair lines is connected to the ground connection as a conductor. To mount the device onto a horizontally mounted 35 mm DIN rail according to DIN EN 60715, proceed as follows: ... -
Page 23: Connecting Network Cables
Mount the terminal block for the supply voltage and the ground connection. Connecting the voltage supply via the terminal block starts the operation of the device. Connecting network cables Note: Verify that you connect solely optical ports with the same optical transmission properties with each other. -
Page 24: Maintenance And Service
Maintenance and service When designing this device, Hirschmann largely avoided using wear parts. The parts subject to wear and tear are dimensioned to last longer than the lifetime of the product when it is operated normally. Operate this device according to the specifications (see on page 25 “Technical data”). -
Page 25: Disassembly
Disassembly Removing the device from the DIN rail 4.1.1 SPIDER II without PoE To remove the device from the DIN rail, you proceed as follows: Insert a screwdriver horizontally below the housing into the locking gate. Pull the locking gate down without tilting the screwdriver. ... -
Page 26: Removing The Sfp Transceivers
Figure 5: Removal from the DIN rail Removing the SFP transceivers Pull the module out of the socket by means of the opened lock. Close the module with the protective cap. Figure 6: F/O SFP transceiver Installation SPIDER II Release 07 10/2013... -
Page 27: Technical Data
Technical data General technical data Dimensions SPIDER II 8TX 35 mm x 154 mm x 121 mm W × H × D SPIDER II 8TX EEC incl. terminal block SPIDER II 8TX/1FX EEC SPIDER II 8TX/1FX-SM EEC SPIDER II 8TX/2FX EEC SPIDER II 8TX/2FX-SM EEC SPIDER II Giga 5T EEC SPIDER II Giga 5T/2S EEC... - Page 28 Protection classes Laser protection Class 1 in compliance with IEC 60825-1 Degree of protection IP 30 Dimension drawing inch 110,8 4.36 0.37 Figure 7: Dimensions of the SPIDER II EMC and immunity EMC compliance – IEC/EN 61000-6-2:2005 EMI TYPE tests, test acc.
- Page 29 EMC compliance – IEC/EN 61000-6-2:2005 EMI TYPE tests, test acc. to: IEC/EN 61000-4-6 Conducted disturbances 150 kHz ... 80 MHz 10 V EMC interference emission EN 55022 Class A FCC 47 CFR Part 15 Class A Stability Vibration IEC 60068-2-6, test Fc 5 Hz to 9 Hz with 3.5 mm amplitude;...
- Page 30 Product Wave Fiber System Example Fiber code length attenuatio for F/O line attenuatio dispersion M-SFP-... length -LX/LC... MM 1310 nm 62.5/125 µm 0-10.5 dB 0-550 m 1.0 dB/km 500 MHz×km -LX/LC... SM 1310 nm 9/125 µm 0-10.5 dB 0-20 km 0.4 dB/km ps/(nm×km) -LX+/LC...
- Page 31 Device name Max. power consumption Power output SPIDER II 8TX/2FX-ST EEC 8.4 W 28.7 Btu (IT)/h SPIDER II Giga 5T EEC 3.6 W 12.1 Btu (IT)/h SPIDER II Giga 5T/2S EEC 6.6 W 21.6 Btu (IT)/h SPIDER II Giga 5T EEC PRO 3.6 W 12.1 Btu (IT)/h SPIDER II Giga 5T/2S EEC PRO...
- Page 32 Gigabit Ethernet SFP transceiver Order number M-SFP-LH/LC EEC 943 898-001 M-SFP-LH+/LC 943 049-001 Bidirectional Gigabit Ethernet SFP transceiver Order number M-SFP-BIDI Type A LX/LC EEC 943 974-001 M-SFP-BIDI Type B LX/LC EEC 943 974-002 M-SFP-BIDI Type A LH/LC EEC 943 975-001 M-SFP-BIDI Type B LH/LC EEC 943 975-002 M-SFP-BIDI Bundle LX/LC EEC (type A + B)
- Page 33 Installation SPIDER II Release 07 10/2013...
- Page 34 Installation SPIDER II Release 07 10/2013...
-
Page 35: A Further Support
Contact our support at https://hirschmann-support.belden.eu.com You can contact us in the EMEA region at Tel.: +49 (0)1805 14-1538 E-mail: hac.support@belden.com in the America region at Tel.: +1 (717) 217-2270 E-mail: inet-support.us@belden.com in the Asia-Pacific region at ...
