User manual
Installation
MAMMUTHUS ACCESS LAYER & DISTRIBUTION LAYER
SWITCH
MTS2600/2700/2800 family
MAMMUTHUS POWER MODULE – MTM2700-PSU500/PSU120
MAMMUTHUS MEDIA MODULE – MTM2700-2X
MTS2624-4X-B
MTS2724-4X-FP-S
MTS2724-6X-MP-E
MTS2748-6X-MP-E
Installation MTS2600/2700/2800
Technical support
Release 01 12/2021
https://hirschmann-it-support.belden.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hirschmann IT MAMMUTHUS MTS26 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Belden Hirschmann IT MAMMUTHUS MTS26 Series

Summary of Contents for Belden Hirschmann IT MAMMUTHUS MTS26 Series

  • Page 1 User manual Installation MAMMUTHUS ACCESS LAYER & DISTRIBUTION LAYER SWITCH MTS2600/2700/2800 family MAMMUTHUS POWER MODULE – MTM2700-PSU500/PSU120 MAMMUTHUS MEDIA MODULE – MTM2700-2X MTS2624-4X-B MTS2724-4X-FP-S MTS2724-6X-MP-E MTS2748-6X-MP-E Installation MTS2600/2700/2800 Technical support Release 01 12/2021 https://hirschmann-it-support.belden.com...
  • Page 2 The performance characteristics described herein shall be binding only upon the express consent of the parties at the time of signing the contract. This paper is produced by Belden within its capacity. Belden reserves the right to change the contents of this manual without prior notice. Belden does not guarantee the correctness or accuracy of the information in this manual.

  • Page 3: Table Of Contents

    Contents Safety instructions About this manual 1 Description 1.1 General device description 1.2 Device name and product code 1.2.1 Basic device 1.2.2 Power module 1.2.3 Media module 1.3 Device view 1.3.1 MTS2624-4X-B 1.3.2 MTS2724-4X-FP-S 1.3.3 MTS2724-6X-MP-E 1.3.4 MTS2748-6X-MP-E 1.3.5 MTS2824-4X-S 1.3.6 MTS2824-6X-E 1.3.7 MTS2824F-4X-S 1.3.8 MTS2832TF-4X-E...
  • Page 4 2.1 Checking the package contents 2.2 Installing the power module (optional) 2.2.1 Installing the power module 2.3 Installing and grounding the device 2.3.1 Installing the device in a switch cabinet 2.3.2 Installing the device on a vertical flat surface 2.3.3 Grounding the device 2.4 Installing the SFP transceiver (optional) 2.5 Operating the device 2.6 Connecting the data cables...
  • Page 5 Important Information Note: Read these instructions carefully, and familiarize yourself with the device before trying to install, operate, or maintain it. The following notes may appear throughout this documentation or on the device. These notes warn of potential hazards or call attention to information that clarifies or simplifies a procedure.
  • Page 6 NOTICE NOTICE provides information about procedures that do not involve the risk of injury. Installation MTS2600/2700/2800 Release 01 12/2021...

  • Page 7: Safety Instructions

    Safety instructions WARNING UNCONTROLLED MACHINE ACTIONS To avoid uncontrolled machine actions caused by data loss, configure all the data transmission devices individually. Before you start any machine which is controlled via data transmission, be sure to complete the configuration of all data transmission devices. Failure to follow this instruction can result in death, serious injury, or device damage.
  • Page 8  Verify serial number of delivered products to make sure it is unified with a hardcopy serial number list provided by manufacturer. If it is necessary, please contact Belden representative to obtain a softcopy serial number list from manufacturer for double check.
  • Page 9 Requirements for connecting the supply voltage  The following requirements apply without restrictions: All variants All of the following requirements are complied with:  The supply voltage corresponds to the voltage specified on the type plate of the device.  The power supply conforms to overvoltage category I or II.
  • Page 10 ESD guide  These modules equipped with electrostatic sensitive components. If the connection is touched, these sensitive components may be damaged or their service life shortened by electric field or charge balance effects. You may find information about electrostatic hazard components in DIN EN 61340-5-1 (2007-08) and DIN EN 61340-5-2 (2007-08).
  • Page 11 Germany You find the EU conformity declaration as PDF file for downloading on the Internet at: https://catalog.belden.com Warning! This is a class A device. This device can cause interference in living areas, and in this case the operator may be required to take appropriate measures.
  • Page 12 Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information MTS2600/2700/2800 U.S. Contact Information Belden – St. Louis 1 N. Brentwood Blvd. 15th Floor St. Louis, Missouri 63105, United States Phone: 314.854.8000 This device complies with part 15 of the FCC rules.

  • Page 13: About This Manual

    Documentation mentioned in the “User Manual Installation” that is not supplied with your device as a printout can be found as PDF files for downloading on the Internet at: https://catalog.belden.com Installation MTS2600/2700/2800 Release 01 12/2021...

  • Page 14: Key

    The symbols used in this manual have the following meanings:  Listing  Work step  Subheading Installation MTS2600/2700/2800 Release 01 12/2021...

  • Page 15: Description

    Description General device description MTS2600 switch provides an economic choice for port expansion and LAN extension, which enables customers to choose products with good performance, function and flexibility under the condition of tight budget. Users can extend the Gigabit line speed switching performance from the core to access equipment.
  • Page 16 MTS2724-6X-MP-E MTS2748-6X-MP-E MTS2824-4X-S MTS2824-6X-E MTS2824F-4X-S Installation MTS2600/2700/2800 Release 01 12/2021...
  • Page 17 MTS2848-6X-E MTS2832TF-4X-E MTS2848-6X-S Installation MTS2600/2700/2800 Release 01 12/2021...
  • Page 18 Power module  MTM2700-PSU120 MTM2700-PSU500 Note ： MTM2700-PSU120 and MTM2700-PSU500 can only be used in MTS2724-6X-MP-E/ MTS2748-6X-MP-E You may choose 1 or 2 power modules with the same input voltage: LV / Ethernet power supply (+) Power modules are provided as accessories. See “Order number”...
  • Page 19 Media module  MTM2700-2X Note ： MTM2700-2X only used MTS2724-6X-MP-E/ MTS2748-6X-MP-E You can select 1 media module. Media modules are provided as accessories. See “Order number” on Page 75. Installation MTS2600/2700/2800 Release 01 12/2021...

  • Page 20: Device Name And Product Code

    Device name and product code The equipment name corresponds to the product code. 1.2.1 Basic device Order Product code Description number 942999847 MTS2624-4X-B 24 × FE/GE TX, 4 × 1/10 Gbit/s SFP+ slot, single fixed power supply, basic software. 942999835 MTS2724-4X-FP-S 24 ×...

  • Page 21: Power Module

    1.2.2 Power module Order Product code Description number 942999834 MTM2700-PSU120 AC/DC 120 W power module; AC input 100 V AC – 240 V AC, 2 A; output 12 V DC, 10 A; No PoE support. 942999833 MTM2700-PSU500 AC/DC 500 W power module; AC input 100 V AC –...

  • Page 22: Device View

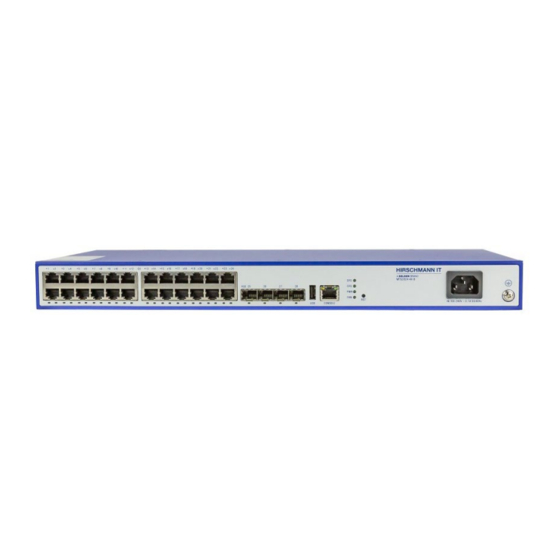

    Device view 1.3.1 MTS2624-4X-B Figure 1: Front view Gigabit Electrical Interface Status LED Gigabit Electrical Interface 10 Gigabit Optical Interface USB Interface Console Port Device Status LED Reset Button (press and hold for 5 seconds to restart the machine) AC Power Socket Grounding Screw Installation MTS2600/2700/2800 Release 01 12/2021...

  • Page 23: Mts2724-4X-Fp-S

    1.3.2 MTS2724-4X-FP-S Figure 2: Front view Gigabit Electrical Interface Status LED Gigabit Electrical Interface (with POE function) 10 Gigabit Optical Interface USB Interface Console Port Device Status LED Reset Button (press and hold for 5 seconds to restart the machine) Figure 3: Rear view AC Power Socket AC Power Socket...

  • Page 24: Mts2724-6X-Mp-E

    1.3.3 MTS2724-6X-MP-E Figure 4: Front view Gigabit Electrical Interface Status LED Gigabit Electrical Interface (with POE function) 10 Gigabit Optical Interface USB Interface Console Port Device Status LED Figure 5: Rear view Interface Card Slot Modular Power Supply 1 Modular Power Supply 2 Grounding Screw Installation MTS2600/2700/2800 Release 01 12/2021...

  • Page 25: Mts2748-6X-Mp-E

    1.3.4 MTS2748-6X-MP-E Figure 6: Front View Gigabit Electrical Interface Status LED Gigabit Electrical Interface (with POE function) 10 Gigabit Optical Interface USB Interface Console Port Device Status LED Figure 7: Rear view Interface Card Slot Modular Power Supply 1 Modular Power Supply 2 Grounding Screw Installation MTS2600/2700/2800 Release 01 12/2021...

  • Page 26: Mts2824-4X-S

    1.3.5 MTS2824-4X-S Figure 8: Front view Gigabit Electrical Interface Status LED Gigabit Electrical Interface 10 Gigabit Optical Interface USB Interface Console Port Device Status LED Reset Button (press and hold for 5 seconds to restart the machine) Figure 9: Rear view AC Power Socket AC Power Socket Grounding Screw...

  • Page 27: Mts2824-6X-E

    1.3.6 MTS2824-6X-E Figure 10: Front view USB Interface Console Port Gigabit Electrical Interface Status LED Gigabit Electrical Interface Air Inlet of the Device 10 Gigabit Optical Interface Status LED 10 Gigabit Optical Interface Device Status LED Figure 11: Rear view Air Outlet of the Device AC Power Socket Grounding Screw...

  • Page 28: Mts2824F-4X-S

    1.3.7 MTS2824F-4X-S Figure 12: Front view Air Inlet of the Device Gigabit Optical Interface Status LED Gigabit Optical Interface 10 Gigabit Optical Interface USB Interface Console Port Device Status LED Reset Button (press and hold for 5 seconds to restart the machine) Figure 13: Rear view AC Power Socket AC Power Socket...

  • Page 29: Mts2832Tf-4X-E

    1.3.8 MTS2832TF-4X-E Figure 14: Front view Gigabit Optical Interface Status LED Gigabit Optical Interface Gigabit Electrical Interface Status LED Gigabit Electrical Interface 10 Gigabit Optical Interface Status LED 10 Gigabit Optical Interface Console Port USB Interface Device Status LED Figure 15: Rear view AC Power Socket AC Power Socket Grounding Screw...

  • Page 30: Mts2848-6X-E

    1.3.9 MTS2848-6X-E Figure 16: Front view USB Interface Console Port Gigabit Electrical Interface Status LED Gigabit Electrical Interface Air Inlet of the Device 10 Gigabit Optical Interface Status LED 10 Gigabit Optical Interface Device Status LED Figure 17: Rear view Air Outlet of the Device AC Power Socket Grounding Screw...

  • Page 31: 1.3.10 Mts2848-6X-S

    1.3.10 MTS2848-6X-S Figure 18: Front view USB Interface Console Port Gigabit Electrical Interface Status LED Gigabit Electrical Interface Air Inlet of the Device 10 Gigabit Optical Interface Status LED 10 Gigabit Optical Interface Device Status LED Figure 19: Rear view Air Outlet of the Device AC Power Socket Grounding Screw...

  • Page 32: 1.3.11 Power Module

    1.3.11 Power module Figure 20: Front view 1 Input Status LED 2 Output Status LED 3 Handle 4 Air Outlet of the Device 5 Power Switch 6 AC Power Socket Installation MTS2600/2700/2800 Release 01 12/2021...

  • Page 33: Media Module

    1.3.12 Media module Figure 21: Front view 1 Anti-Loosening Screw 2 Device Status LED 3 Gigabit Electrical Interface 4 Air-Outlet of the Device Installation MTS2600/2700/2800 Release 01 12/2021...

  • Page 34: Power Supply

    Power supply You may use the power module to supply voltage to the device. For information about connecting supply voltage: See “Power module” on page 21 Installation MTS2600/2700/2800 Release 01 12/2021...

  • Page 35: Ethernet Port

    Ethernet port You can use fiber optic (F/O) to connect end devices and other network segments to the device and the media module ports. 1.5.1 1000 Mbit/s F/O port This port is an SFP slot. The port allows you to connect network components according to IEEE 802.3. This port supports: Full duplex ...

  • Page 36: Out-Of-Band Management Port

    The port allows you to manage the device and upload configuration through the following protocols: SNMP   Telnet   See “Command line interface user manual” for more information. The manual is available for download on the Internet: https://catalog.belden.com Installation MTS2600/2700/2800 Release 01 12/2021...

  • Page 37: Display Elements

    Display elements After the supply voltage is set up, the software starts and initializes the device. Afterwards, the device performs a self-test. During this process, various LEDs light up. 1.6.1 Device status These LEDs provide information about the conditions which affect the operation of the whole device.

  • Page 38: Port Status

    1.6.2 Port Status These LEDs provide port information. Indicator Indicator Indicator color Status type name RJ45 Flashing: indicating data sending on serial port self-contained OFF: indicating no data sending on serial port Serial port yellow LED indicator RJ45 Build-in Flashing: indicating data receiving on serial port green LED OFF: indicating no data receiving on serial port RJ45...

  • Page 39: Management Interface

    Management interface 1.7.1 DC0 interface (external management) The serial interface is provided on RJ45 socket (DC0 interface), which can realize the local connection of external management station (VT100 terminal or PC with corresponding terminal emulation). This enables you to set up a connection to the Command Line Interface CLI and to the System Monitor.

  • Page 40: Installation

    Installation These devices are developed for use in commercial environments. At the time of delivery, the equipment is ready for operation. Perform the following work steps to install and configure the device:  Checking the package contents  Installing the power module (optional) ...

  • Page 41: Installing And Grounding The Device

    Installing and grounding the device Perform the following work steps:  Installing the device in the switch cabinet  Installing the device on a vertical flat surface  Grounding the device 2.3.1 Installing the device in a switch cabinet WARNING ELECTRIC SHOCK Install this device solely in a switch cabinet or in an operating site with restricted access, to which maintenance staff have exclusive access.
  • Page 42 Note: When the device is operated in an environment with continuous vibration load greater than 0.7 g, it must be fixed to the switch cabinet with the 2 fixed mounting brackets at the front and rear of the device. Additional mounting brackets are provided as accessories. See “Accessories”...
  • Page 43 Figure 24: Installing the device in a switch cabinet Installation MTS2600/2700/2800 Release 01 12/2021...

  • Page 44: Installing The Device On A Vertical Flat Surface

    2.3.2 Installing the device on a vertical flat surface WARNING FIRE RISK In case of vertical installation, install the device in a fireproof enclosure. Failure to follow this instruction can result in death, serious injury, or device damage. Perform the following work steps: ...

  • Page 45: Grounding The Device

    2.3.3 Grounding the device WARNING ELECTRIC SHOCK Ground the device before connecting any other cables. Failure to follow this instruction can result in death, serious injury, or device damage. The device has the connection of the protective grounding wire. The device is grounded by the grounding screw and the power socket. Perform the following work steps: ...

  • Page 46: Installing The Sfp Transceiver (Optional)

    Installing the SFP transceiver (optional) Prerequisite: Exclusively use Hirschmann IT SFP transceivers. See “Accessories” on the page 75. Perform the following work steps: Take the SFP transceiver out of the transport packaging.  Remove the protection cap from the SFP transceiver. See Figure ...

  • Page 47: Operating The Device

    Operating the device Perform the following work step:  Connect the power supply cable, see Figure  Enable the power supply. Figure 29: Connect the power supply Connecting the data cables Note the following general recommendations for data cable connections in an environments with high electrical interference levels: ...

  • Page 48: Filling Out The Inscription Label

    Filling out the inscription Label The information field for the MAC address helps you identify your device. Installation MTS2600/2700/2800 Release 01 12/2021...

  • Page 49: Making Basic Settings

    Making basic settings Note: Configuring 2 or more devices with the same IP address may lead to the network’s failure to function as expected. Install and maintain a program, to assign a unique IP address to each device in the network. Enter the IP parameters when you install the device for the first time.

  • Page 50: Monitor Ambient Air Temperature

    Monitor ambient air temperature Operate the device below the specified maximum ambient air temperature exclusively. See “General technical data” on page 55. The ambient air temperature is the temperature of the air at a distance of 5 cm (2 in) from the device. It depends on the installation conditions of the device, for example, the distance from other devices or other objects, and the output of neighboring devices.

  • Page 51: Maintenance And Repair

    You find information and software downloads on the Hirschmann IT product pages on the Internet (https://catalog.belden.com).  Depending on the degree of pollution in the operating environment, check at regular intervals that the ventilation slots in the device are not obstructed.

  • Page 52: Disassembly

    Disassembly Removing the power module Perform the following work steps:  Pull the power module out of the power module slot.  Blank the power module slot on the device using the cover plate. Removing the media module Perform the following work steps: ...

  • Page 53: Removing The Sfp Transceiver

    Removing the SFP transceiver Perform the following work steps: Release the lock and pull the SFP transceiver out of the device slot. See  Figure Figure 31: Releasing the lock Use a protective cover to blank the SFP transceiver. See Figure ...

  • Page 54: Removing The Device

    Removing the device WARNING ELECTRIC SHOCK Please disconnect all other cables before disconnecting the ground wire. Failure to follow these instructions can result in death, serious injury, or device damage. Perform the following work steps:  Disconnect the data cables. ...

  • Page 55: Technical Data

    Technical data General technical data Basic device  Dimensions See “Dimension drawings” W × H × D on page Weight MTS2624-4X-B < 2.8 kg (6.17 lb) MTS2724-4X-FP-S < 5.5 kg (12.12 lb) MTS2724-6X-MP-E < 6 kg (13.22 lb) MTS2748-6X-MP-E < 6 kg (13.22 lb) MTS2832TF-4X-E <...
  • Page 56 Power module  Size See “Dimension drawings” on page Weight MTM2700-PSU120 0.9 kg (1.98 lb) MTM2700-PSU500 1.2 kg (2.64 lb) Installation of the power Tighten torque 0.4 Nm … 0.6 Nm (3.5 lb-in … 5.2 lb-in) module Installation of the cover Tightening torque 0.4 Nm …...

  • Page 57: Dimension Drawing

    Dimension drawing Basic device  MTS2624-4X-B Installation MTS2600/2700/2800 Release 01 12/2021...
  • Page 58 MTS2724-4X-FP-S Installation MTS2600/2700/2800 Release 01 12/2021...
  • Page 59 MTS2724-6X-MP-E Installation MTS2600/2700/2800 Release 01 12/2021...
  • Page 60 MTS2748-6X-MP-E Installation MTS2600/2700/2800 Release 01 12/2021...
  • Page 61 MTS2832TF-4X-E Installation MTS2600/2700/2800 Release 01 12/2021...
  • Page 62 MTS2824F-4X-S Installation MTS2600/2700/2800 Release 01 12/2021...
  • Page 63 MTS2824-4X-S Installation MTS2600/2700/2800 Release 01 12/2021...
  • Page 64 MTS2848-6X-S Installation MTS2600/2700/2800 Release 01 12/2021...
  • Page 65 MTS2824-6X-E Installation MTS2600/2700/2800 Release 01 12/2021...
  • Page 66 MTS2848-6X-E Installation MTS2600/2700/2800 Release 01 12/2021...
  • Page 67 Power module  MTM2700-PSU120 Installation MTS2600/2700/2800 Release 01 12/2021...
  • Page 68 MTM2700-PSU500 Installation MTS2600/2700/2800 Release 01 12/2021...
  • Page 69 Media module  MTM2700-2X Installation MTS2600/2700/2800 Release 01 12/2021...

  • Page 70: Emc And Immunity

    EMC and immunity EMC interference emission Standard application EN 55032 Class A DNV GL Guide — FCC 47 CFR Part 15 Class A EN 61000-6-4 Fulfilled EN 55032 AC/DC Power Line Class A DNV GL Guide AC/DC Power Line — FCC 47 CFR Part 15 AC/DC Power Line Class A...
  • Page 71 EMC immunity Standard application Electromagnetic field EN 61000-4-3 80 MHz ... 1000 MHz 10 V/m 1000 MHz ... 6000 MHz 3 V/m IEEE 1613 80 MHz ...1000 MHz — Fast transient (burst) EN 61000-4-4 AC/DC Power Line ±2 kV IEEE C37.90.1 EN 61000-4-4 Data cable ±1 kV...
  • Page 72 EMC immunity Standard application Damped vibration - AC/DC Power Line EN 61000-4-12 Cable / ground — IEEE C37.90.1 EN 61000-4-12 Cable / cable — IEEE C37.90.1 Damped oscillation - data cable EN 61000-4-12 Cable / ground — IEEE C37.90.1 EN 61000-4-12 Cable / cable —...

  • Page 73: Network Range

    Network range Note: The line length specified for the transceiver applies to the corresponding fiber data (fiber attenuation and BLP/dispersion). Product code Wave Optical BLPc/disper Mode F/O cable length example MTS-SFP-1G-... length attenuation sion Full TX/RJ4 Duplex -TX/RJ45... 100 m Negotiatio -SX/LC...

  • Page 74: Power Consumption / Power Output

    Power consumption / power output Name Maximum Power output power consumption Basic device MTS2624-4X-B 26 W 91 Btu (IT)/h MTS2724-4X-FP-S 29 W 101.5 Btu (IT)/h MTS2724-6X-MP-E 34 W 119 Btu (IT)/h MTS2748-6X-MP-E 46 W 161 Btu (IT)/h MTS2832TF-4X-E 60 W 210 Btu (IT)/h MTS2824F-4X-S 38 W...

  • Page 75: Scope Of Delivery, Order Number, And Accessories

    Scope of delivery, order number, and accessories Delivery item  Quantity Articles Device Safety and general information sheet Bracket Order number  MTS2624-4X-B 942 999-847 MTS2748-6X-MP-E 942 999-831 MTS2724-6X-MP-E 942 999-832 MTM2700-PSU500 942 999-833 MTM2700-PSU120 942 999-834 MTS2724-4X-FP-S 942 999-835 MTM2700-2X 942 999-836 MTS2848-6X-E...
  • Page 76 10G SFP module Order number MTS-SFP-10G-SR/LC 942 999-851 MTS-SFP-10G-LR/LC 942 999-852 MTS-SFP-10G-ER/LC 942 999-853 MTS-SFP-10G-TX/RJ45 942 999-867 You may access more information about certificates here: https://catalog.belden.com Installation MTS2600/2700/2800 Release 01 12/2021...

  • Page 77: Underlying Technical Standards

    Underlying technical standards Name FCC 47CFR Part 15 Code of Federal Regulations IEC 60825-1 Safety of Laser Products EN 55032 Electromagnetic compatibility multimedia equipment. Emission Requirements EN 55035 Electromagnetic compatibility multimedia equipment. Immunity Requirements EN 62368-1 Information technology equipment - Safety - Part 1: General requirements EN 61000-3-2 Electromagnetic compatibility (EMC) - Part 3-2: Threshold - Threshold for harmonic current (equipment input current ≤16 A per phase)

  • Page 78: A Further Support

    For technical questions, please contact any Hirschmann IT dealer in your area or Hirschmann IT directly You find the addresses of our partners on the Internet at https://catalog.belden.com A list of local telephone numbers and email addresses for technical support directly from Hirschmann IT is available at https://catalog.belden.com...
  • Page 79 Installation MTS2600/2700/2800 Release 01 12/2021...
